Brush Mower - BCS America Brush Mower Attachment (1982 - 1995) Flat 3-Dog PTO 30" Mower Gear Box (SN: 140552 - 132250) Parts Diagram

Brush Mower Attachment

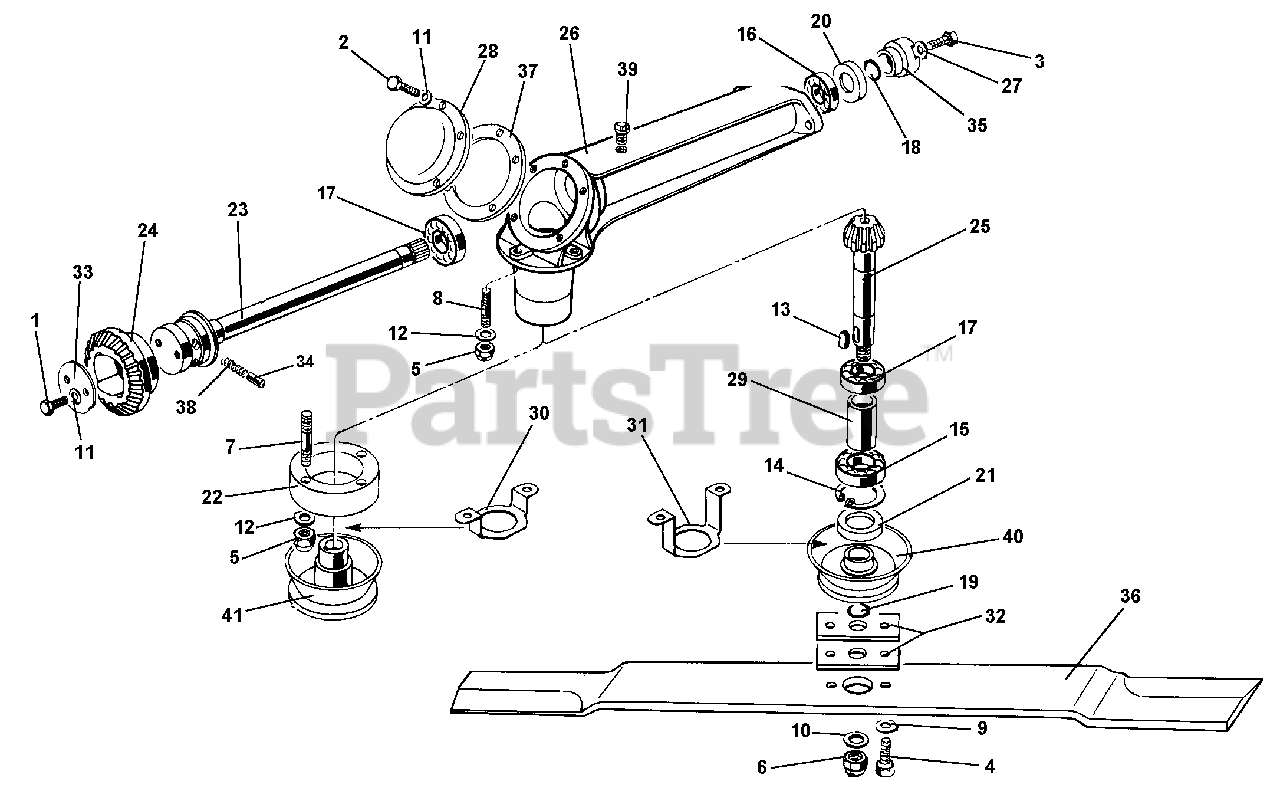

Flat 3-Dog PTO 30" Mower Gear Box (SN: 140552 - 132250) Parts Diagram

  • Title

1

BCS America 311.12082

SCREW M6X12

$0.99

$

Usually ships in 5-8 days

0

2

BCS America 31112090

SCREW TE M6X16

$0.99

$

In Stock, Qty 10

0

3

BCS America 311.12093

SCREW TE M6X20

$0.99

$

In Stock, Qty 10

0

4

BCS America 31112330

SCREW M14X45

$5.49

$

Usually ships in 5-8 days

0

5

BCS America 31241080

NUT, SELF LOCKING M8

$0.99

$

In Stock, Qty 10

0

6

BCS America 312.41182

NUT, SELF LOCKING M18X1.5

$4.99

$

Usually ships in 5-8 days

0

7

BCS America 313.12085

STUD

$8.99

$

Usually ships in 5-8 days

0

8

BCS America 313.12088

STUD M8X40X14X14

$8.49

$

Usually ships in 5-8 days

0

9

BCS America 314.21251

SUPER WASHER

$3.99

$

Usually ships in 5-8 days

0

10

BCS America 314.21253

SUPER WASHER

$9.49

$

Usually ships in 5-8 days

0

11

BCS America 314.22064

WASHER, LOCK 6.4

$0.99

$

Usually ships in 5-8 days

0

12

BCS America 314.23084

WASHER, LOCK 8.4

$0.99

$

In Stock, Qty 10

0

13

BCS America 34321060

KEY, 6X6X20

$3.99

$

Usually ships in 5-8 days

0

14

BCS America 351.11062

CIRCLIP, INTERNAL D 62

$2.49

$

Usually ships in 5-8 days

0

15

BCS America 371.11251

BEARING 25X62X17

$

$

Currently unavailable

16

BCS America 371.11253

BEARING 25X47X12

$15.99

$

Usually ships in 5-8 days

0

17

BCS America 371.11255

BEARING 25X52X15

$15.99

$

In Stock, only 1 left!

0

18

BCS America 38111800

"O" RING 18.64X3.53

$1.49

$

Usually ships in 5-8 days

0

19

BCS America 38112500

"O" RING 25X3.53

$1.49

$

Usually ships in 5-8 days

0

20

BCS America 38213500

OIL SEAL 35X47X7

$12.99

$

Usually ships in 5-8 days

0

21

BCS America 382.14004

OIL SEAL 40X62X7

$13.99

$

In Stock, only 1 left!

0

22

BCS America 51148600

SPACER

$

$

Not available

23

BCS America 524.58028

SHAFT FOR GEAR

$395.99

$

Usually ships in 5-8 days

0

24

BCS America 52458030

RING BEVEL GEAR

$278.99

$

Usually ships in 5-8 days

0

25

BCS America 524.58064

BLADE PINION SHAFT

$354.99

$

Usually ships in 5-8 days

0

26

BCS America 532.58026

MOWER CASING

$

$

Currently unavailable

27

BCS America 561.42291

WASHER 7X25X4

$1.99

$

Usually ships in 5-8 days

0

28

BCS America 561.43605

COVER

$49.99

$

Usually ships in 5-8 days

0

29

BCS America 561.58033

SPACER

$34.99

$

Usually ships in 5-8 days

0

30

BCS America 561.58052

OIL SEAL PROTECTOR

$35.99

$

Usually ships in 5-8 days

0

31

BCS America 561.58053

OIL SEAL PROTECTOR

$33.99

$

Usually ships in 5-8 days

0

32

BCS America 561.58054

BLADE SPACER

$39.99

$

Usually ships in 5-8 days

0

33

BCS America 563.48584

DISC, GEAR LOCKING

$23.99

$

Usually ships in 5-8 days

0

34

BCS America 564.43655

CAP

$5.99

$

Usually ships in 5-8 days

0

35

BCS America 564.48398

COUPLING

$48.00

$

Usually ships in 5-8 days

0

36

BCS America 565.58055

BLADE

$

$

Currently unavailable

37

BCS America 580.43606

GASKET

$4.49

$

Usually ships in 5-8 days

0

38

BCS America 580.43654

SPRING

$2.99

$

Usually ships in 5-8 days

0

39

BCS America 590.51045

BREATHER CAP 1/4

$18.99

$

Usually ships in 5-8 days

0

40

BCS America 590.58065

BLADE HOLDER HUB

$231.99

$

Usually ships in 5-8 days

0

41

BCS America 590.58067

BLADE HOLDER HUB

$138.52

$

Usually ships in 5-8 days

0
