BS 1960 AR - Electrolux/AYP Lawn Tractor

Lawn Tractor

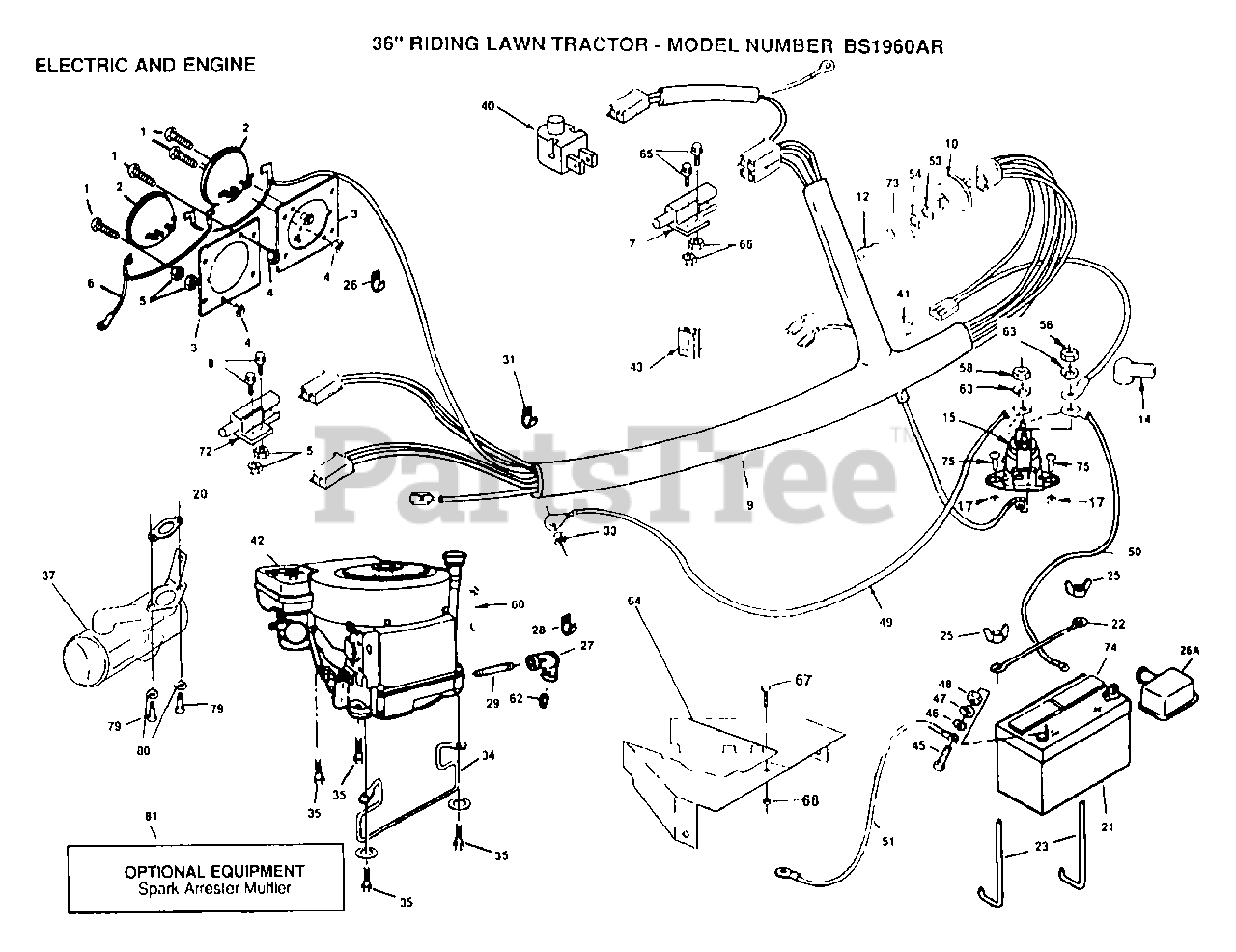

BS 1960 AR - Electrolux/AYP Lawn Tractor > Parts Diagrams (8) > ELECTRIAL, BATTERY, ENGINE

  • Title
74291016

1

NLA

Part# 74291016

OEM Warranty Repair Part for Electrolux/AYP

Not available

6774R

2

SUB= 60941

Part# 6774R

OEM Warranty Repair Part for Electrolux/AYP

Not available

73025

3

SUB= 2702J

Part# 73025

OEM Warranty Repair Part for Electrolux/AYP

Not available

4632H

4

NUT STD

Part# 4632H

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 7 business days

Your price: $2.56

73731000

5

NUT

Part# 73731000

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 7 business days

Your price: $2.56

71706

6

WIRE ASSY

Part# 71706

OEM Warranty Repair Part for Electrolux/AYP

Not available

109553X

7

SWITCH INTERLOCKT

Part# 109553X (Superseded to 532109553)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $10.35

74191008

8

SCREW

Part# 74191008 (Superseded to 874191008)

OEM Warranty Repair Part for Electrolux/AYP

Not available

121351X

9

SUB= 139417

Part# 121351X

OEM Warranty Repair Part for Electrolux/AYP

Not available

4406R

10

SUB= STD365402

Part# 4406R

OEM Warranty Repair Part for Electrolux/AYP

Not available

7552H

12

SUB= STD365410

Part# 7552H

OEM Warranty Repair Part for Electrolux/AYP

Not available

719J

14

SUB= 154336

Part# 719J

OEM Warranty Repair Part for Electrolux/AYP

Not available

109081X

15

SUB= 146154

Part# 109081X

OEM Warranty Repair Part for Electrolux/AYP

Not available

73510400

17

NUT

Part# 73510400

OEM Warranty Repair Part for Murray

Not available

1407J

20

SUB= 272293

Part# 1407J

OEM Warranty Repair Part for Electrolux/AYP

Not available

121265X

21

SUB= 123899X

Part# 121265X

OEM Warranty Repair Part for Electrolux/AYP

Not available

67187

22

"ROD, BATTERY"

Part# 67187

OEM Warranty Repair Part for Electrolux/AYP

Not available

70456

23

"BOLT, BATTERY"

Part# 70456

OEM Warranty Repair Part for Electrolux/AYP

Not available

123198X

25

SUB= 146525

Part# 123198X

OEM Warranty Repair Part for Electrolux/AYP

Not available

2521R

26

CLIP SB

Part# 2521R

OEM Warranty Repair Part for Electrolux/AYP

Not available

225J

26A

BATTERY TERMINAL COVER

Part# 225J

OEM Warranty Repair Part for Electrolux/AYP

Not available

13200300

27

ELBOW

Part# 13200300

OEM Warranty Repair Part for Electrolux/AYP

Not available

5320R

28

INSUL CLIP T

Part# 5320R

OEM Warranty Repair Part for Electrolux/AYP

Not available

13280324

29

PIPE NIPPLE

Part# 13280324 (Superseded to 813280324)

OEM Warranty Repair Part for Electrolux/AYP

Not available

6794R

31

SUB= 2751R

Part# 6794R

OEM Warranty Repair Part for Electrolux/AYP

Not available

53490

33

NUT

Part# 53490

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 7 business days

Your price: $2.56

1795J

34

BELT KEEPER LT

Part# 1795J

OEM Warranty Repair Part for Electrolux/AYP

Not available

17490624

35

SCREW LT

Part# 17490624 (Superseded to 817490624)

OEM Warranty Repair Part for Electrolux/AYP

Not available

121849X

37

MUFFLER

Part# 121849X

OEM Warranty Repair Part for Electrolux/AYP

Not available

121305X

40

SWITCH SEAT

Part# 121305X (Superseded to 532121305)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $8.93

108824X

41

FUSE HYT

Part# 108824X

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 10 business days

Your price: $4.46

202038C

42

ENGINE

Part# 202038C

OEM Warranty Repair Part for Electrolux/AYP

Not available

110712X

43

SWITCH LT

Part# 110712X (Superseded to 532110712)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $5.58

74760412

45

BOLT LT

Part# 74760412 (Superseded to 874760412)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

19091216

46

WASHER PM

Part# 19091216 (Superseded to 819091216)

OEM Warranty Repair Part for Electrolux/AYP

Not available

10040400

47

LOCKWASHER

Part# 10040400 (Superseded to 810040400)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

73220400

48

SUB= 50675

Part# 73220400 (Superseded to 873220400)

OEM Warranty Repair Part for Electrolux/AYP

Not available

2957J

49

"CABLE T, BATTERY"

Part# 2957J

OEM Warranty Repair Part for Electrolux/AYP

Not available

4559J

50

SUB= 597J

Part# 4559J

OEM Warranty Repair Part for Electrolux/AYP

Not available

596J

51

SUB= 2955J

Part# 596J

OEM Warranty Repair Part for Electrolux/AYP

Not available

19221616

53

WASHER T

Part# 19221616

OEM Warranty Repair Part for Electrolux/AYP

Not available

109788X

54

SUB= 124211X

Part# 109788X

OEM Warranty Repair Part for Electrolux/AYP

Not available

73350400

58

NUT

Part# 73350400 (Superseded to 873350400)

OEM Warranty Repair Part for Electrolux/AYP

Not available

7192J

60

WIRE TIE

Part# 7192J

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 8 business days

Your price: $4.46

91084

62

PLUG OIL DRAIN

Part# 91084

OEM Warranty Repair Part for Electrolux/AYP

Not available

10090400

63

SUB= 10040400

Part# 10090400

OEM Warranty Repair Part for Electrolux/AYP

Not available

121857X

64

SHIELD

Part# 121857X

OEM Warranty Repair Part for Electrolux/AYP

Not available

71031008

65

SCREW

Part# 71031008

OEM Warranty Repair Part for Electrolux/AYP

Not available

73951000

66

"NUT,KEPS"

Part# 73951000 (Superseded to 873951000)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 7 business days

Your price: $6.70

74760408

67

SUB= 74230408

Part# 74760408

OEM Warranty Repair Part for Electrolux/AYP

Not available

73680400

68

SUB= 73690400

Part# 73680400 (Superseded to 873680400)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 10 business days

Your price: $3.01

104445X

72

SWITCH-INTER. GT

Part# 104445X (Superseded to 532104445)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 8 business days

Your price: $11.17

109787X

73

SUB= 147626

Part# 109787X

OEM Warranty Repair Part for Electrolux/AYP

Not available

121264X

74

"CAP,BATTERY "

Part# 121264X (Superseded to 532121264)

OEM Warranty Repair Part for Electrolux/AYP

Not available

74230408

75

"SCREW,MACHINE"

Part# 74230408

OEM Warranty Repair Part for Electrolux/AYP

Not available

11050400

76

LOCKWASHER

Part# 11050400

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 7 business days

Your price: $2.56

19131210

77

WASHER

Part# 19131210 (Superseded to 819131210)

OEM Warranty Repair Part for Electrolux/AYP

Not available

74760512

79

BOLT

Part# 74760512

OEM Warranty Repair Part for Electrolux/AYP

Not available

10040500

80

LOCKWASHER

Part# 10040500 (Superseded to 810040500)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $3.34

100092M

81

SPARK ARRESTER KIT

Part# 100092M

OEM Warranty Repair Part for Electrolux/AYP

Not available

121420X

OWNERS MANUAL

Part# 121420X

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 7 business days

Your price: $4.01

101539X

SHEET INSTR LT

Part# 101539X (Superseded to 532101539)

OEM Warranty Repair Part for Electrolux/AYP

Not available
