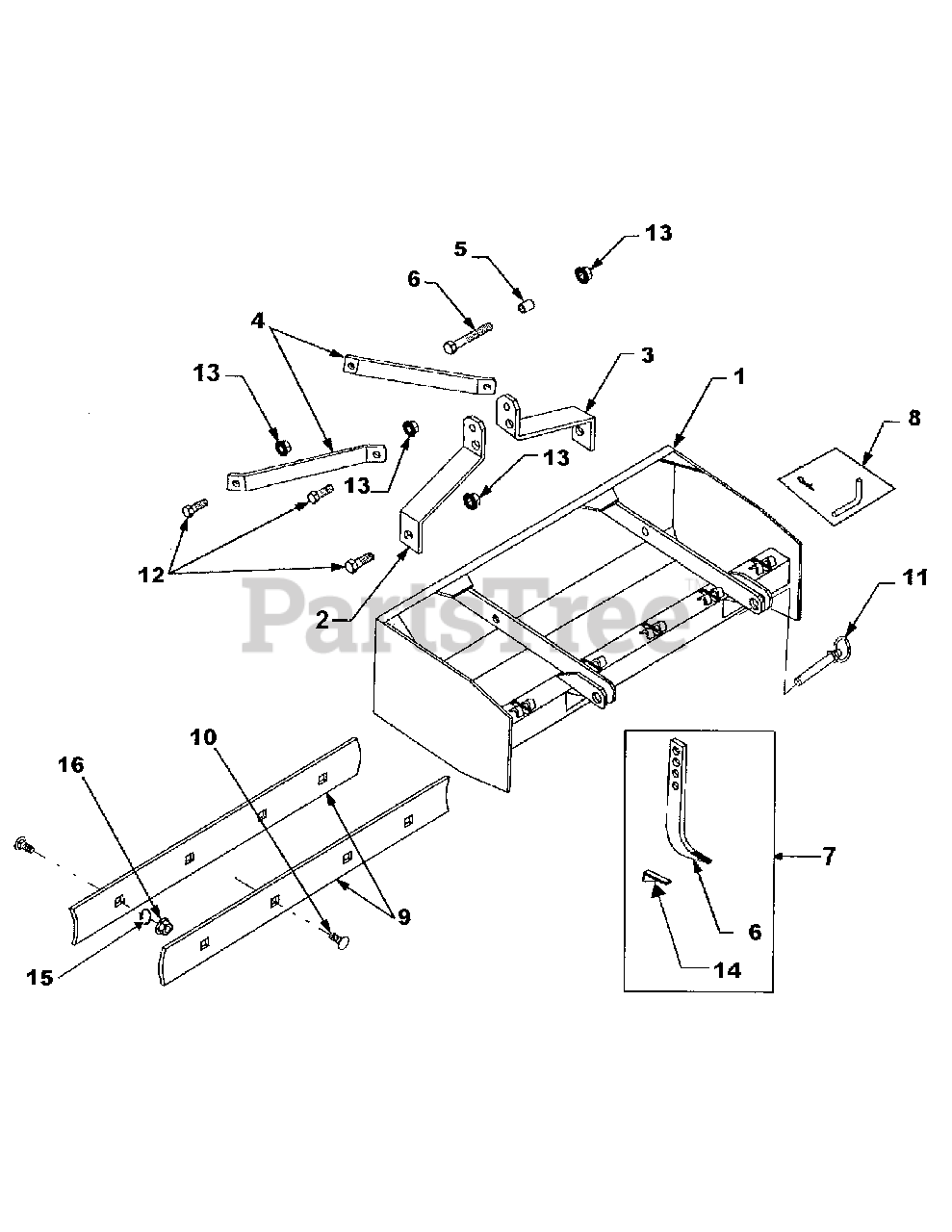

BS 60 (59A40031727) - Cub Cadet Yanmar Tractor 60" Box Scraper Frame Version 1 Parts Diagram

Tractor 60" Box Scraper

Frame Version 1 Parts Diagram

  • Title

1

Cub Cadet YS-503-934B

Frame

Note: (BS48)

$

$

Not available

1

Cub Cadet YS-016-9000

Frame

Note: (BS60)

$

$

Not available

2

Cub Cadet YS-006-9034

Vertical Support Right

Note: (BS60)

$

$

Not available

2

Cub Cadet YS-503-935B

Vertical Support Right

Note: (BS48)

$

$

Not available

3

Cub Cadet YS-006-9033

Vertical Support Left

Note: (BS60)

$

$

Not available

3

Cub Cadet YS-503-936B

Vertical Support Left

Note: (BS48)

$

$

Not available

4

Cub Cadet YS-006-9014

Horizontal Support

Note: (BS60)

$

$

Not available

4

Cub Cadet YS-016-9014

Horizontal Support
(Superseded to BF-016-9014)

Note: (BS48)

$

$

Not available

5

Cub Cadet YS-006-9016

Inner Spacer
(Superseded to BF-006-9016)

Note: (BS60)

$

$

Not available

5

Cub Cadet YS-503-937B

Inner Spacer

Note: (BS48)

$

$

Not available

6

Cub Cadet YS-006-9021

Bolt, 3/4'' x 5''

Note: (BS60)

$

$

Not available

6

Cub Cadet YS-006-9610

Bolt, 3/4'' x 4''
(Superseded to BF-006-9610)

Note: (BS48)

$

$

Not available

7

Cub Cadet YS-006-9017

Scarifier Shanks
(Superseded to BF-006-9017)

Note: (BS48)

$

$

Not available

7

Scarifier Shanks

Note: (BS60)

$

$

Not available

8

Cub Cadet YS-503-683B

Bent Pin w/ Cotter

Note: (BS60) (qty 4-7)

$

$

Not available

8

Cub Cadet YS-503-639B

Bent Pin w/ Cotter

Note: (BS48)

$

$

Not available

9

Cub Cadet YS-056-9019

Scraper Blade

Note: (BS48)

$

$

Not available

9

Cub Cadet YS-016-9019

Scraper Blade

Note: (BS60)

$

$

Not available

10

Cub Cadet YS-503-651B

Plow Bolt
(Superseded to BF-503-651B)

Note: qty 8-14

$

$

Not available

11

Cub Cadet YS-943-008B

Hitch Pins
(Superseded to BF-943-008B)

$

$

Not available

12

Cub Cadet YS-006-9611

Bolt, 3/4'' x 1 3/4''

Note: (BS48)

$

$

Not available

12

Cub Cadet YS-006-9022

Bolt, 3/4'' x 2 1/2''

Note: (BS60)

$

$

Not available

13

Cub Cadet YS-006-9024

Stover Nut, 3/4''
(Superseded to BF-006-9024)

$

$

Not available

14

Cub Cadet YS-006-9026

Scarifer Tooth
(Superseded to BF-006-9026)

$

$

Not available

15

Cub Cadet YS-502-866B

Lockwasher 5/8''
(Superseded to BF-502-866B)

Note: qty 8-14

$4.99

$

In Stock, Qty 10

0

16

Cub Cadet YS-502-865B

Hex Nut 5/8''
(Superseded to BF-502-865B)

Note: qty 8-14

$4.99

$

In Stock, Qty 16

0
