BT 2000 - RedMax Brush Trimmer (1993-11) 008 - TRIMMER UNIT Parts Diagram

Brush Trimmer

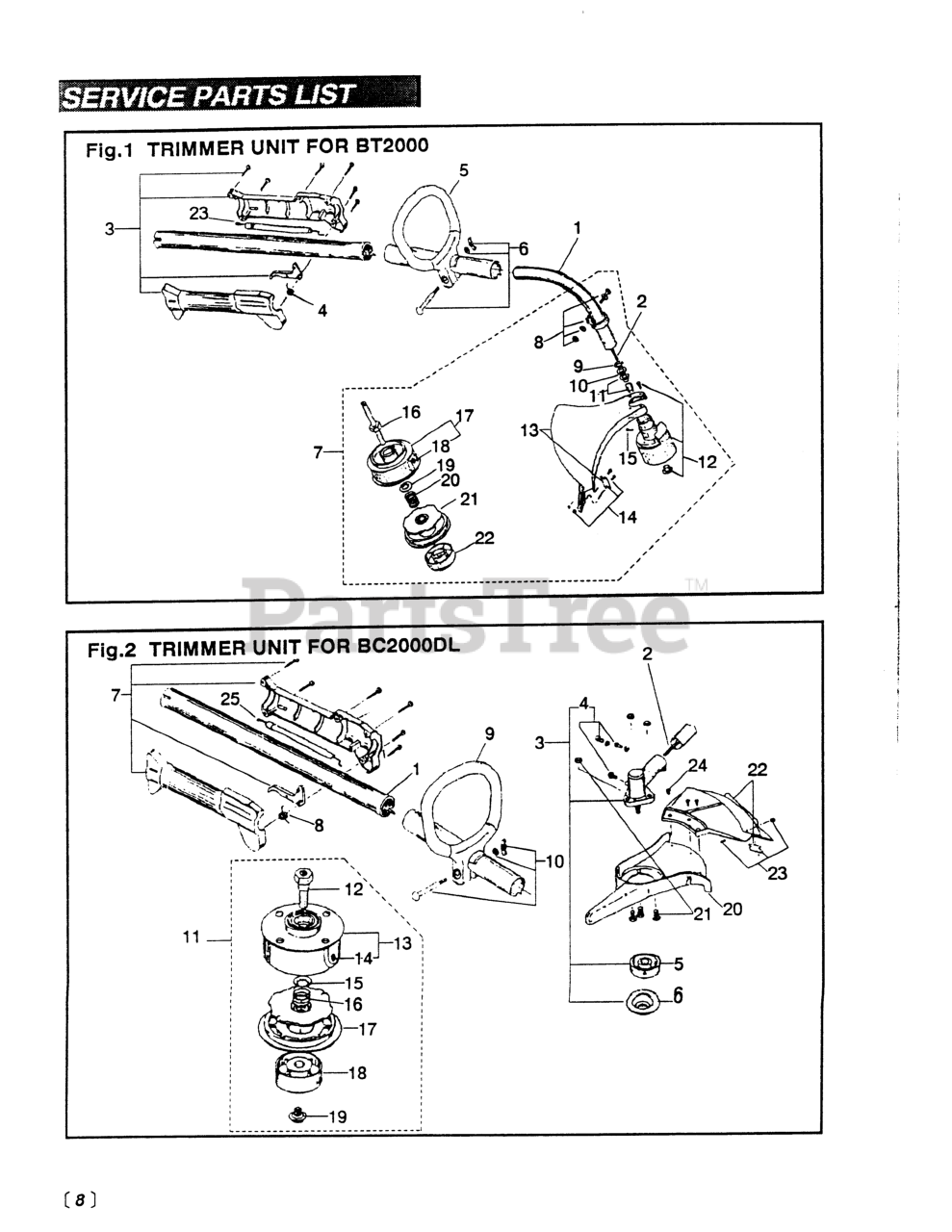

008 - TRIMMER UNIT Parts Diagram

  • Title

1

RedMax 180492

SHAFT ASSEMBLY (BT)

$86.48

$

Usually ships in 3-10 days

0

2

RedMax 682064

753-04280
(Superseded to 574100301)

$

$

Not available

3

RedMax 180017

181140
(Superseded to 574047201)

$

$

Not available

4

RedMax 610314

SPRING, THROTTLE TRIGGER
(Superseded to 574065001)

$

$

Not available

5

RedMax 145819

NO LONGER AVAILABLE

Note: Context Note: @ÿ

$

$

Not available

6

RedMax 153525

181587
(Superseded to 917153525)

$

$

Not available

7

RedMax 147823

CUTTING HEAD ASSEMBLY
(Superseded to 574046301)

$

$

Not available

8

RedMax 153597

CLAMP ASSY, LOWER
(Superseded to 574046601)

$

$

Not available

9

RedMax 145570

RING, RETAINING
(Superseded to 574045301)

$

$

Not available

10

RedMax 145567

WASHER
(Superseded to 574045101)

$

$

Not available

11

RedMax 153312

ASSY, BUSHING HOUSING
(Superseded to 574046401)

$

$

Not available

12

RedMax 153318

SCREW, GUARD MTG (SET)

$

$

Not available

13

RedMax 683445

683274
(Superseded to 574066101)

$

$

Not available

14

RedMax 682061

BLADE ASSEMBLY
(Superseded to 574066001)

$

$

Not available

15

RedMax 145569

SET SCREW, ANTI-ROTATION
(Superseded to 574045201)

$

$

Not available

16

RedMax 153313

181784
(Superseded to 574055901)

$

$

Not available

17

RedMax 153619

OUTER SPOOL ASSEMBLY
(Superseded to 574046701)

$

$

Not available

18

RedMax 145566

EYELET
(Superseded to 574045001)

$

$

Not available

19

RedMax 610660

WASHER, EYELET
(Superseded to 574065301)

$

$

Not available

20

RedMax 610317

610317B
(Superseded to 574098101)

$

$

Not available

21

RedMax 153600

610318
(Superseded to 917153600)

$

$

Not available

22

RedMax 153066

153066B
(Superseded to 574090801)

$

$

Not available

23

RedMax 646082100

6502-82100
(Superseded to 574087701)

$

$

Not available
