BT 220 - RedMax Brush Trimmer (1989-04) 025 - ENGINE Parts Diagram

Brush Trimmer

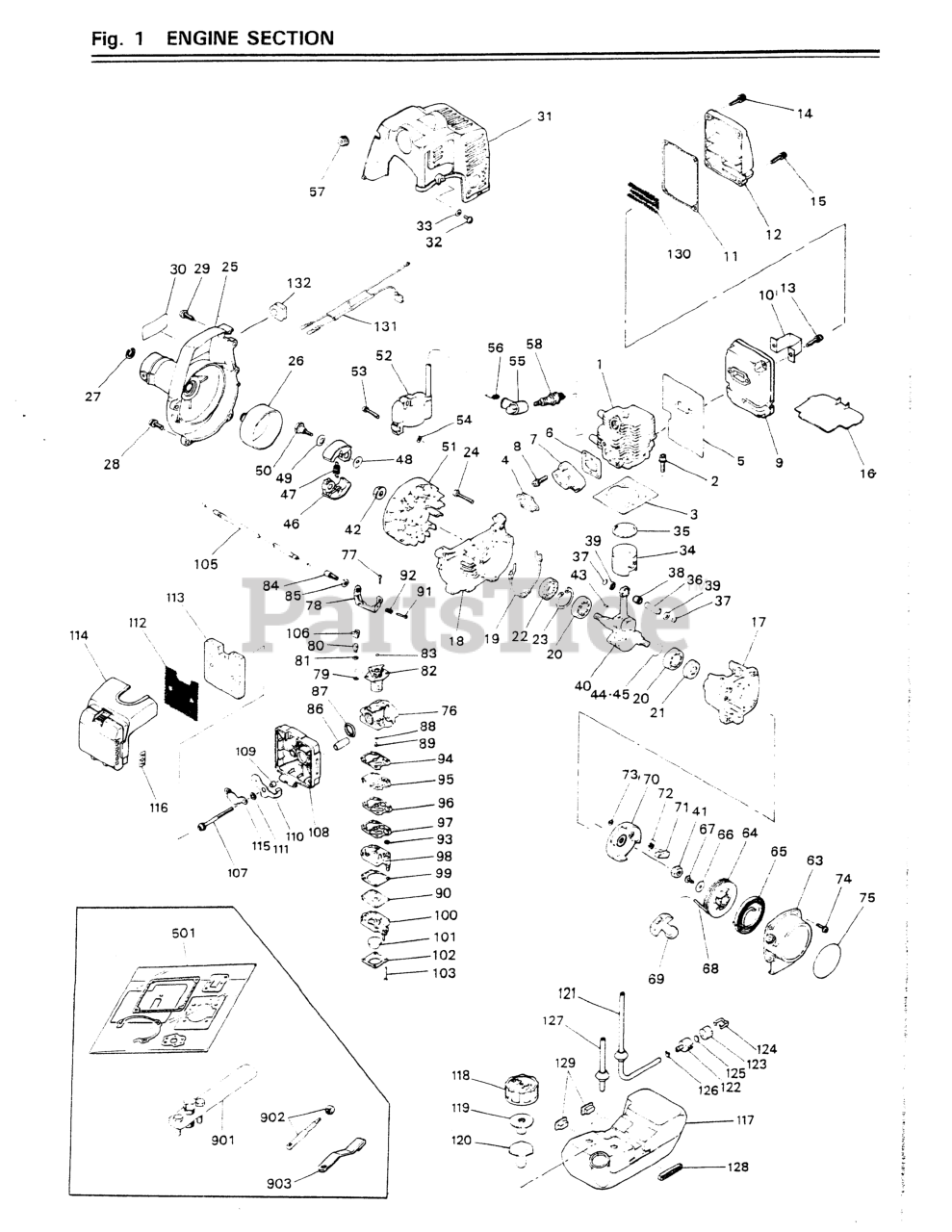

025 - ENGINE Parts Diagram

  • Title

1

RedMax 185012111

1850-12112
(Superseded to 513412301)

$167.99

$

Usually ships in 3-10 days

0

2

RedMax 185012130

BOLT, M5 X 22
(Superseded to 516537401)

$

$

Not available

3

RedMax 185013122

1850-13123

$

$

Not available

4

RedMax 175013131

1750-13132
(Superseded to 516518001)

$

$

Not available

5

RedMax 185013140

1850-13141

$

$

Not available

6

RedMax 185013150

1850-13151
(Superseded to 513413001)

$7.49

$

Usually ships in 3-10 days

0

7

RedMax 185013160

1870-13160

$

$

Not available

8

RedMax 026320520

SCREW, M5 X 20
(Superseded to 510476901)

$

$

Not available

9

RedMax 185015110

BODY

$24.26

$

Usually ships in 3-10 days

0

10

RedMax 185015120

BAFFLE

$0.89

$

Usually ships in 3-10 days

0

11

RedMax 185015130

1850-15131
(Superseded to 513413401)

$

$

Not available

12

RedMax 185015140

BODY

$

$

Not available

13

RedMax 0125230618

BOLT, M6 X 18
(Superseded to 516071901)

$

$

Not available

14

RedMax 0125230522

BOLT, M5 X 22
(Superseded to 516070901)

$4.99

$

Usually ships in 3-10 days

0

15

RedMax 0125230514

BOLT (USE 3310-31720)
(Superseded to 520961501)

$4.99

$

In Stock, Qty 9

0

16

RedMax 185015252

PLATE

$2.87

$

Usually ships in 3-10 days

0

17

RedMax 185021101

CRANKCASE (RPLS -21100)

$107.63

$

Usually ships in 3-10 days

0

18

RedMax 185021101

CRANKCASE (RPLS -21100)

$107.63

$

Usually ships in 3-10 days

0

19

RedMax 185021140

1850-21141
(Superseded to 513414301)

$

$

Not available

20

RedMax 0603006001

BEARING
(Superseded to 523071701)

$10.99

$

In Stock, only 3 left!

0

21

RedMax 110021210

2169-21210
(Superseded to 513488701)

$4.99

$

In Stock, only 2 left!

0

22

RedMax 185021220

SEAL, OIL (RPLS 1140-21220)
(Superseded to 506612901)

$3.49

$

In Stock, Qty 6

0

23

RedMax 0406502812

RING, SNAP, M28 x 1.2
(Superseded to 506609901)

$3.99

$

In Stock, only 4 left!

0

24

RedMax 026060530

SCREW, M5 x 30

$0.31

$

Usually ships in 3-10 days

0

RedMax 185031101

NO LONGER AVAILABLE

Note: Context Note: @ÿ

$

$

Not available

25

RedMax 185031111

HOUSING

$70.07

$

Usually ships in 3-10 days

0

26

RedMax 185031200

1850-31201

$

$

Not available

27

RedMax 318013330

RING, SNAP
(Superseded to 514128201)

$4.99

$

In Stock, only 2 left!

0

28

RedMax 026390520

SCREW, M5X20 (RPLS.1400-75510)

$0.25

$

Usually ships in 3-10 days

0

29

RedMax 190031410

SCREW, HOUSING
(Superseded to 513442301)

$1.11

$

Usually ships in 3-10 days

0

30

RedMax 185431120

LABEL

$0.32

$

Usually ships in 3-10 days

0

31

RedMax 185032110

1850-32111
(Superseded to 516540101)

$

$

Not available

32

RedMax 026390412

SCREW, M4 x 12
(Superseded to 516112701)

$7.49

$

Usually ships in 3-10 days

0

33

RedMax 185032130

WASHER
(Superseded to 516540301)

$

$

Not available

34

RedMax 117841110

PISTON
(Superseded to 516223001)

$

$

Not available

35

RedMax 110041210

RING, PISTON (RPLS 1850-41210)
(Superseded to 510917501)

$5.99

$

In Stock, Qty 10

0

36

RedMax 110141310

PIN, PISTON 5x8x26
(Superseded to 513179501)

$5.99

$

Usually ships in 3-10 days

0

37

RedMax 110141320

1260-41320
(Superseded to 505045201)

$2.49

$

In Stock, only 3 left!

0

38

RedMax 114041330

5500-41410
(Superseded to 505040901)

$7.49

$

In Stock, only 2 left!

0

39

RedMax 110141340

WASHER
(Superseded to 516181201)

$

$

Not available

40

RedMax 185042000

5500-42001

$

$

Not available

41

RedMax 114043230

1650-43230

$

$

Not available

42

RedMax 165043230

182301
(Superseded to 516437401)

$

$

Not available

43

RedMax 100043240

KEY
(Superseded to 506689401)

$3.49

$

In Stock, Qty 20+

0

44

RedMax 114043250

SHIM

$0.32

$

Usually ships in 3-10 days

0

45

RedMax 113043260

SHIM (NO LONGER AVAILABLE)

Note: Context Note: @ÿ

$

$

Not available

46

RedMax 188151110

1600-51112

$

$

Not available

47

RedMax 175251220

1752-51221

$

$

Not available

48

RedMax 114051230

WASHER, FLAT (USE 182303)
(Superseded to 516207701)

$3.49

$

Usually ships in 3-10 days

0

49

RedMax 114051240

1140-51241

$

$

Not available

50

RedMax 114051250

BOLT
(Superseded to 513189601)

$3.49

$

In Stock, Qty 9

0

51

RedMax 185071110

ROTOR

$51.63

$

Usually ships in 3-10 days

0

52

RedMax 185071120

1850-71200

$

$

Not available

53

RedMax 026030422

SCREW, M4 X 22
(Superseded to 516102501)

$

$

Not available

54

RedMax 126071260

1260-71261

$

$

Not available

55

RedMax 190072111

1900-72112
(Superseded to 513443401)

$5.99

$

In Stock, only 2 left!

0

56

RedMax 190072120

SPRING
(Superseded to 505298901)

$3.99

$

In Stock, Qty 15

0

57

RedMax 189572110

GROMMET
(Superseded to 516604501)

$

$

Not available

58

RedMax 111573111

NO LONGER AVAILABLE

Note: Context Note: @ÿ

$

$

Not available

RedMax 185075100

RECOIL
(Superseded to 516541401)

$

$

Not available

63

RedMax 185075110

1850-75111

$

$

Not available

64

RedMax 185075120

REEL
(Superseded to 513416801)

$

$

Not available

65

RedMax 185075130

SPRING, SPIRAL
(Superseded to 504115001)

$13.99

$

In Stock, Qty 20+

0

66

RedMax 185075140

WASHER (NO LONGER AVAIL)

Note: Context Note: @ÿ

$

$

Not available

67

RedMax 185075150

1850-75151

$

$

Not available

68

RedMax 185075160

ROPE

$

$

Not available

69

RedMax 185075170

KNOB

$5.89

$

Usually ships in 3-10 days

0

70

RedMax 185075210

1850-75201

$

$

Not available

71

RedMax 185075220

1850-75221
(Superseded to 513417701)

$

$

Not available

72

RedMax 185075230

SPRING, RETURN
(Superseded to 513417801)

$

$

Not available

73

RedMax 103472180

E-RING
(Superseded to 544263001)

$

$

Not available

74

RedMax 026390416

SCREW, M4 X 16
(Superseded to 510481601)

$3.49

$

In Stock, only 3 left!

0

75

RedMax 185475410

LABEL
(Superseded to 516547801)

$

$

Not available

76

RedMax 185081001

1850-81004

$

$

Not available

77

RedMax 175281110

SCREW
(Superseded to 516528701)

$

$

Not available

78

RedMax 175081121

BRACKET

$7.68

$

Usually ships in 3-10 days

0

79

RedMax 175181130

RING
(Superseded to 516523601)

$

$

Not available

80

RedMax 175181141

SWIVEL (USE -06040)

$

$

Not available

81

RedMax 175181190

WASHER
(Superseded to 516524201)

$3.99

$

Usually ships in 3-10 days

0

82

RedMax 185081150

VALVE ASSY (NO L0NGER AVAIL)

$

$

Not available

83

RedMax 175181160

PLUG NEEDLE

$1.23

$

Usually ships in 3-10 days

0

84

RedMax 175181170

NO LONGER AVAILABLE

Note: Context Note: @ÿ

$

$

Not available

85

RedMax 175181180

NUT, CABLE ADJUSTER
(Superseded to 510487401)

$3.99

$

In Stock, Qty 9

0

86

RedMax 175181220

SLEEVE, MOUNT

$7.68

$

Usually ships in 3-10 days

0

87

RedMax 175181230

RING, PACKING (NLA)

Note: Context Note: @ÿ

$

$

Not available

88

RedMax 175181240

RING, O
(Superseded to 505307501)

$3.49

$

In Stock, Qty 5

0

89

RedMax 163081250

JET

$5.00

$

Usually ships in 3-10 days

0

90

RedMax 331081260

DIAPHRAGM (USE 4810-81260)
(Superseded to 505056401)

$

$

Not available

91

RedMax 175181310

SCREW, IDLE AD

$3.20

$

Usually ships in 3-10 days

0

92

RedMax 175181320

SPRING, IDLE A

$2.72

$

Usually ships in 3-10 days

0

93

RedMax 331081380

SCREEN
(Superseded to 330681380)

$1.22

$

Usually ships in 3-10 days

0

94

RedMax 106581410

GASKET, PUMP
(Superseded to 516160601)

$

$

Not available

95

RedMax 106581420

DIAPHRAGM
(Superseded to 506689801)

$4.99

$

In Stock, only 2 left!

0

96

RedMax 175181430

PLATE, PUMP (NLA)

Note: Context Note: @ÿ

$4.07

$

Usually ships in 3-10 days

0

97

RedMax 175181440

GASKET, PLATE

$10.39

$

Usually ships in 3-10 days

0

98

RedMax 176681450

BODY, PUMP
(Superseded to 513406601)

$

$

Not available

99

RedMax 175181470

KIT ONLY
(Superseded to 516537001)

$27.99

$

Usually ships in 3-10 days

0

100

RedMax 175181490

1891-81490

$

$

Not available

101

RedMax 175181510

PUMP, PRIMING
(Superseded to 505306701)

$9.99

$

In Stock, Qty 20+

0

102

RedMax 175181520

COVER
(Superseded to 516525901)

$

$

Not available

103

RedMax 175281530

SCREW
(Superseded to 505416101)

$21.99

$

Usually ships in 3-10 days

0

105

RedMax 185882100

CABLE COMP (NLA)

Note: Context Note: @ÿ

$

$

Not available

106

RedMax 160181810

CAP, CABLE END
(Superseded to 513352401)

$3.49

$

In Stock, Qty 5

0

107

RedMax 026030560

0263-30560
(Superseded to 516111001)

$

$

Not available

RedMax 185082000

CLEANER ASSEMBLY (NLA)

Note: Context Note: @ÿ

$

$

Not available

108

RedMax 185082111

BODY (RPLS -82110)
(Superseded to 516544301)

$23.99

$

Usually ships in 3-10 days

0

109

RedMax 160182120

SLEEVE
(Superseded to 513447101)

$3.99

$

Usually ships in 3-10 days

0

110

RedMax 185082131

1850-82132

$

$

Not available

111

RedMax 160182140

WASHER

$0.76

$

Usually ships in 3-10 days

0

112

RedMax 185082150

SCREEN
(Superseded to 513418801)

$

$

Not available

113

RedMax 185082160

ELEMENT
(Superseded to 513418901)

$

$

Not available

114

RedMax 185082170

COVER
(Superseded to 516544701)

$

$

Not available

115

RedMax 160182320

PLATE
(Superseded to 513353301)

$

$

Not available

116

RedMax 113382060

LABEL
(Superseded to 516199901)

$3.49

$

Usually ships in 3-10 days

0

117

RedMax 185285001

1856-85000
(Superseded to 516545201)

$

$

Not available

118

RedMax 308385200

CAP (USE 5601-85201)

$

$

Not available

119

RedMax 185085220

VALVE (NO LONGER AVAILABLE)

Note: Context Note: @ÿ

$

$

Not available

120

RedMax 185085230

NO LONGER AVAILABLE

Note: Context Note: @ÿ

$

$

Not available

121

RedMax 185085401

PIPE COMP (NO LONGER AVAIL)

Note: Context Note: @ÿ

$

$

Not available

122

RedMax 185085300

5500-85400 (RRLS. 1750-85300)

$

$

Not available

123

RedMax 175085320

FILTER (NLA)

Note: Context Note: @ÿ

$

$

Not available

124

RedMax 175085330

RETAINER (NLA)

Note: Context Note: @ÿ

$

$

Not available

125

RedMax 175085340

SCREEN (NLA)

Note: Context Note: @ÿ

$

$

Not available

126

RedMax 126085460

CLIP (REPLACES 2841-31280)
(Superseded to 506707001)

$3.99

$

In Stock, Qty 16

0

127

RedMax 160185701

3080-85500
(Superseded to 514104901)

$

$

Not available

128

RedMax 185086121

1850-86122

$

$

Not available

129

RedMax 185086130

CUSHION (F)
(Superseded to 516545801)

$8.49

$

Usually ships in 3-10 days

0

130

RedMax 185415150

ARRESTER
(Superseded to 516547401)

$

$

Not available

131

RedMax 189572130

CORD-C

$0.76

$

Usually ships in 3-10 days

0

132

RedMax 185272120

1852-72121

$

$

Not available

501

RedMax 185006010

1850-06011

$

$

Not available

901

RedMax 160096100

2890-96100
(Superseded to 520769301)

$135.99

$

Usually ships in 3-10 days

0

902

RedMax 110196220

(H) ROD ASSY

$18.79

$

Usually ships in 3-10 days

0

903

RedMax 166496411

STOPPER (TOOL) (RPLS -96410)

$10.57

$

Usually ships in 3-10 days

0
