BT 22675 HW (7800509) - Brute 22" Walk-Behind Mower (2009) Deck Assembly - Push, Hi-Wheel Parts Diagram

22" Walk-Behind Mower

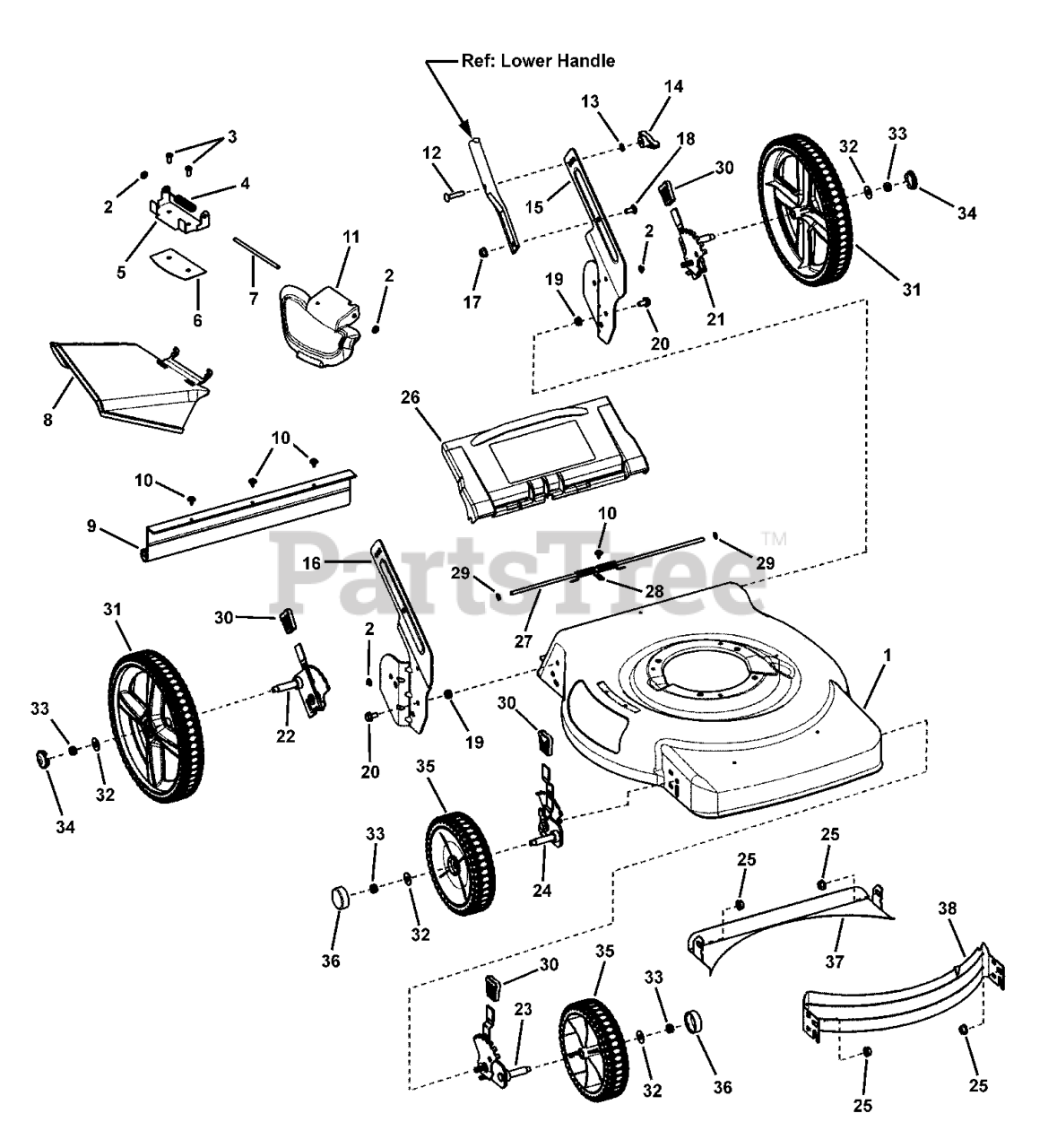

Deck Assembly - Push, Hi-Wheel Parts Diagram

  • Title

1

Murray 7300401ZYP

DECK, 22" Walk, Push

$259.99

$

Usually ships in 2-12 days

0

2

Murray 7091020YP

PUSHNUT, 1/4"
(Superseded to 704005)

$4.49

$

In Stock, Qty 20+

0

3

Murray 7900067YP

SCREW, PHST, Torx, 1/4-20 X .550"

$4.49

$

In Stock, Qty 20+

0

4

Murray 166X38MA

SPRING, Torsion, Chute

$4.99

$

In Stock, only 2 left!

0

5

Murray 7300855ZMA

BRACKET, Chute

$

$

Not available

6

Murray 7300856ZMA

PLATE, Mulch 22 RB Scotts

$6.49

$

Usually ships in 2-12 days

0

7

Murray 215X19ZMA

ROD, Chute Pivot - 1/4 dia. x 5.55"
(Superseded to 7101067YP)

$6.99

$

Usually ships in 2-12 days

0

8

Murray 1101097MA

SIDE CHUTE, Plastic, Black

$39.99

$

In Stock, only 1 left!

0

9

Murray 7102422YP

GUARD, Rear

$18.99

$

In Stock, only 2 left!

0

10

Murray 7091286YP

SCREW, #10-24 x 1/2 Hex Washer Self-Tap - Sems

$4.99

$

In Stock, Qty 17

0

11

Murray 1101098MA

COVER, Mulch, Plastic, Black

$33.99

$

Usually ships in 2-12 days

0

12

Murray 7091714YP

BOLT, RHSN, 5/16-18 X 1 GR5 YZ
(Superseded to 703483)

$3.99

$

In Stock, only 3 left!

0

13

Murray 7090391SM

WASHER, Internal Tooth Lock, 5/16
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

14

Murray 071294MA

KNOB, 5/16-18 Wing Nut
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

15

Murray 7300583ZMA

BRACKET, Lower Handle, LH

$47.99

$

Usually ships in 2-12 days

0

16

Murray 7300582ZMA

BRACKET, Lower Handle, RH
(Superseded to 7300582BHYP)

$51.99

$

Usually ships in 2-12 days

0

17

Murray 7090951SM

NUT, HFL, 5/16-18 BZ
(Superseded to 704001)

$4.49

$

In Stock, Qty 19

0

18

Murray 7091508SM

BOLT, RHSSN, 5/16-18 X 3/4 GR5 YZ
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

19

Murray 7091585SM

NUT, 3/8-16 Hex Center Lock YZ
(Superseded to 703347)

$4.99

$

In Stock, Qty 16

0

20

Murray 7090606SM

BOLT, 5/16-18 x 5/8 Hex Flange Lock
(Superseded to 703823)

$3.99

$

In Stock, Qty 7

0

21

Murray 7501055YP

ASSY, HOC, Left Rear, 9 Position

$28.99

$

Usually ships in 2-12 days

0

22

Murray 7501056YP

ASSY, HOC, Right Rear, 9 Position

$41.99

$

Usually ships in 2-12 days

0

23

Murray 7501294YP

ASSY, HOC, Left Front, 9 Position

$36.99

$

Usually ships in 2-12 days

0

24

Murray 7501293YP

ASSY, HOC, Right Front, 9 Position

$38.99

$

Usually ships in 2-12 days

0

25

Murray 7900053MA

NUT, 3/8-16, Hex Flange Lock, GR 5

$3.99

$

Usually ships in 2-12 days

0

26

Murray 7101243YP

DOOR, Rear Discharge, 22 Walk Mower

$51.99

$

Usually ships in 2-12 days

0

27

Murray 7101070YP

ROD, Pivot, Rear Door - 1/4 dia. x 17-1/2 YZ

$6.49

$

Usually ships in 2-12 days

0

28

Murray 7101461YP

SPRING, Torsion, Rear Door, 22 Walk Mower

$6.99

$

Usually ships in 2-12 days

0

29

Murray 028X49MA

RETAINER, Push On, 1/4"

$3.99

$

In Stock, Qty 13

0

30

Murray 7100633YP

GRIP, Height Latch
(Superseded to 7103793YP)

$4.49

$

In Stock, Qty 9

0

31

Murray 7101708MA

WHEEL,12" X 2" Idle, W/DB TRD, Brute
(Superseded to 7105711YP)

$54.99

$

In Stock, Qty 16

0

32

Murray 17X169MA

WASHER, Flat, 1 O.D. x .382 I.D.
(Superseded to 703966)

$4.49

$

In Stock, only 2 left!

0

33

Murray 7090585MA

NUT, 5/16-18 Hex Flange Lock BZP

$3.99

$

In Stock, Qty 7

0

34

Murray 7101931MA

HUBCAP, 12" Wheel, Black

$4.49

$

Usually ships in 2-12 days

0

35

Murray 7101712MA

WHEEL, 8" X 2" Idle, W/DB TRD, Brute

$39.99

$

Usually ships in 2-12 days

0

36

Murray 7101351MA

HUBCAP, Round, Black

$4.99

$

Usually ships in 2-12 days

0

37

Murray 7300854ZMA

BAFFLE, Rear, 22" Deck
(Superseded to 7300854DYP)

$43.99

$

In Stock, only 2 left!

0

38

Murray 7300440ZMA

BAFFLE, Front, 22" Walk Mower
(Superseded to 7300440BMYP)

$133.99

$

Usually ships in 2-12 days

0
