BT 22675 HW (7800509) - Brute 22" Walk-Behind Mower (2009) Engine & Blade Assembly Parts Diagram

22" Walk-Behind Mower

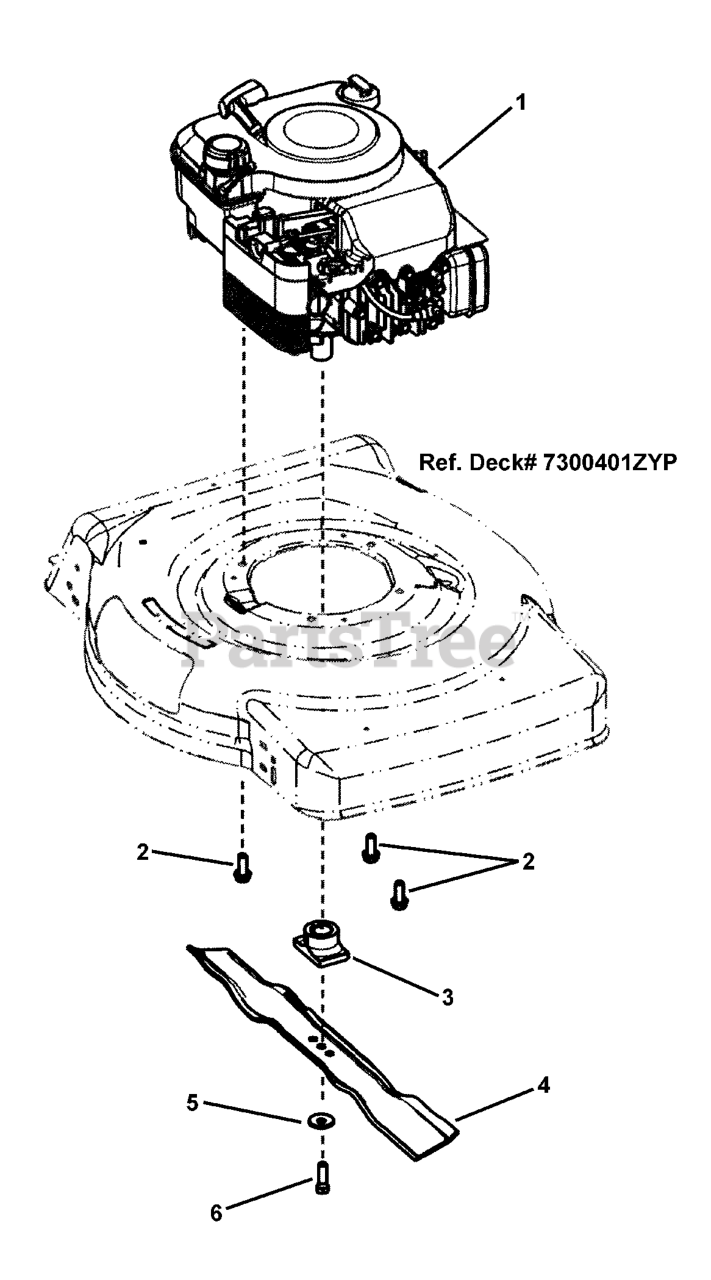

Engine & Blade Assembly Parts Diagram

  • Title

1

* ENGINE, B&S, 650 Ser, Mod. 124T02-0650-B3

$

$

Not available

2

Murray 7090324SM

SCREW, 3/8-16 x 1 Hex Washer Self-Tap
(Superseded to 704000)

$4.99

$

In Stock, only 2 left!

0

3

Murray 7100862YP

HUB, Blade, 22"

$8.49

$

Usually ships in 2-12 days

0

4

Murray 7100851AYP

BLADE, 22"

$19.99

$

In Stock, only 4 left!

0

5

Murray 1101989MA

WASHER, Bellville, .38 ID x 1.183 OD

$5.49

$

Usually ships in 2-12 days

0

6

Murray 7090824YP

SCREW, 3/8-24 x 1-1/4 Hex Head Cap, GR 5

$4.99

$

In Stock, Qty 14

0
