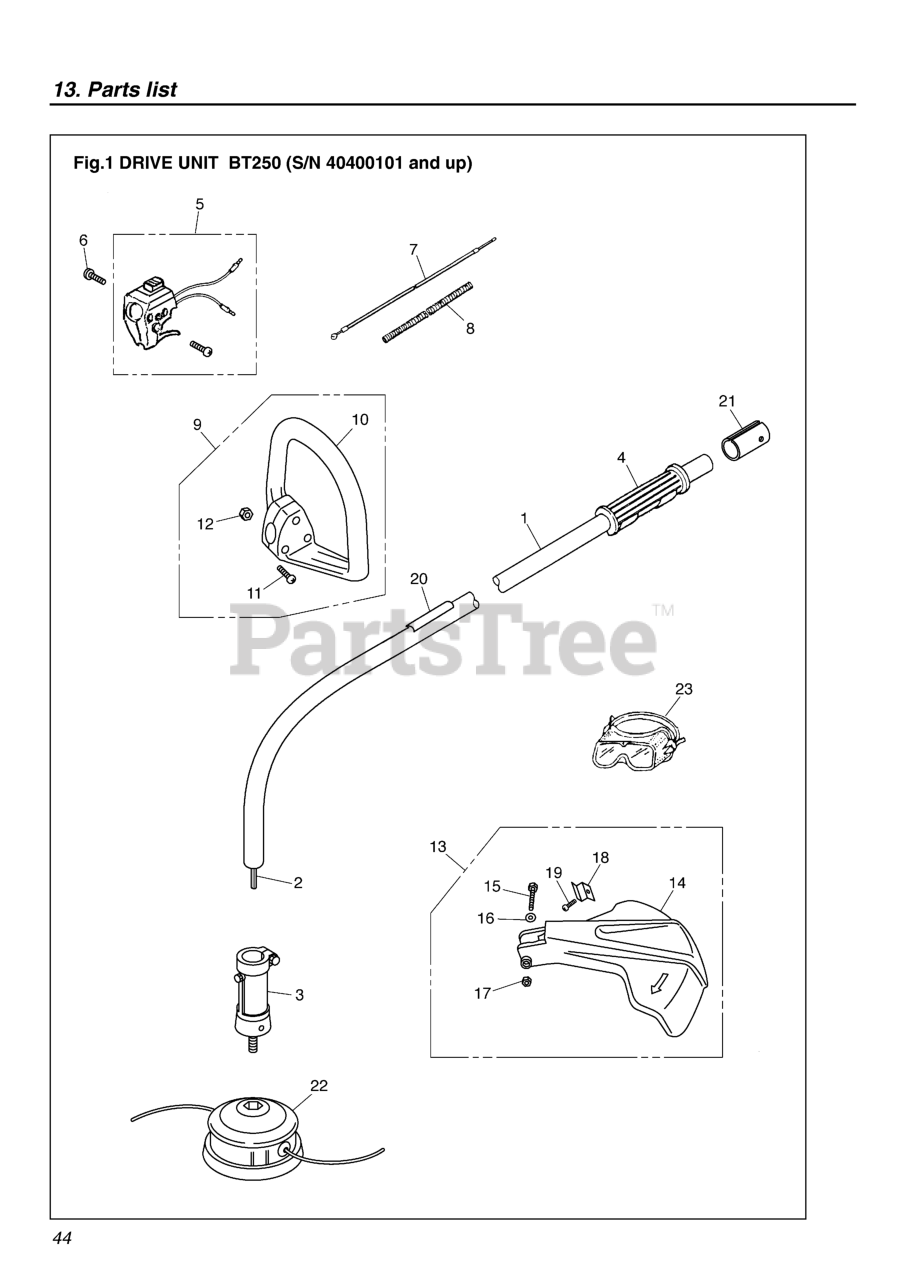

003 - DRIVE UNIT Parts Diagram

  • Title

1

RedMax BT2550810

PIPE COMP

$

$

Not available

2

RedMax BT2550710

DRIVE SHAFT (54

$

$

Not available

3

RedMax BT2550910

HOUSING ASSY.

$

$

Not available

4

RedMax BT2550610

GRIP

$

$

Not available

5

RedMax BT2550510

LEVER ASSY.

$

$

Not available

6

RedMax BT2550520

SCREW

$0.20

$

Usually ships in 3-10 days

0

7

RedMax 185582100

CABLE COMP (RPLS 1633-83100)
(Superseded to 513422001)

$

$

Not available

8

RedMax BT2580100

TUBE

$

$

Not available

9

RedMax BT2550400

HANDLE ASSY.

$

$

Not available

10

RedMax BT2550410

HANDLE

$7.35

$

Usually ships in 3-10 days

0

11

RedMax 026390530

SCREW, M5 x 30
(Superseded to 516113501)

$

$

Not available

12

RedMax B1181000504

NUT

$0.22

$

Usually ships in 3-10 days

0

13

RedMax BT2580810

GUARD ASSY.

$

$

Not available

14

RedMax BT2580840

GUARD

$

$

Not available

15

RedMax 0100069820

BOLT

$

$

Not available

16

RedMax 0031106000

WASHER

$

$

Not available

17

RedMax 0021706000

NUT

$

$

Not available

18

RedMax BT2580830

BLADE

$

$

Not available

19

RedMax 0150069830

SCREW

$0.20

$

Usually ships in 3-10 days

0

20

RedMax BT2590910

PLATE NAME

$4.55

$

Usually ships in 3-10 days

0

21

RedMax BT2590810

SPACER

$2.55

$

Usually ships in 3-10 days

0

22

RedMax BT2590100

TAP HEAD

$

$

Not available

23

RedMax T300291190

GOGGLE
(Superseded to 510989401)

$

$

Not available
