BT13068GNSN - Bryant 130kW Home Standby Generator (SN: 4608V31106 - 4608V31106) (2008)

130kW Home Standby Generator

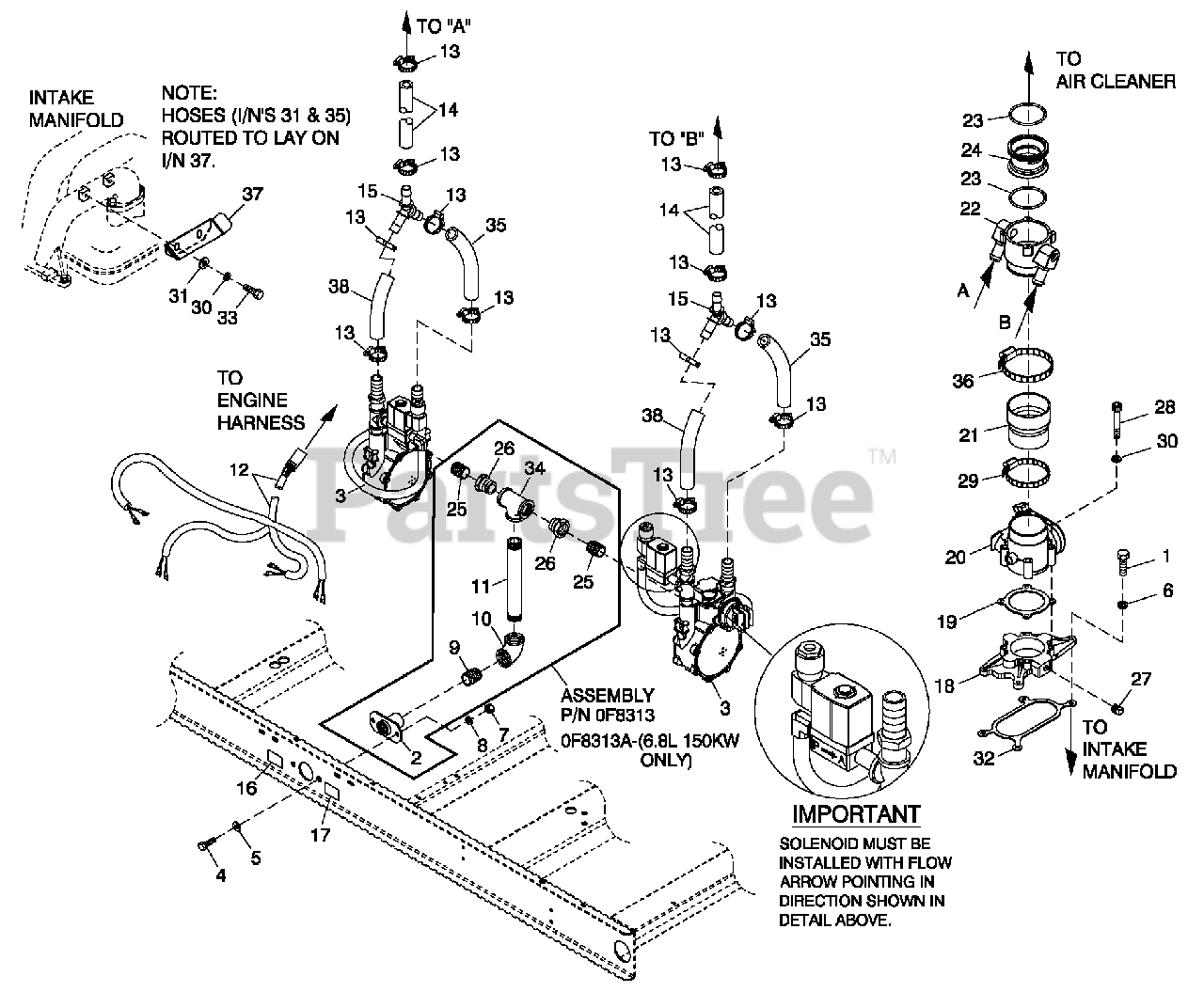

BT13068GNSN - Bryant 130kW Home Standby Generator (SN: 4608V31106 - 4608V31106) (2008) > Parts Diagrams (39) > Fuel Natural Gas Ford 6.8L 130KW & 6.8L 150KW (0G8623A)

  • Title
033212

1

SCREW HHC 5/16-18 X 1-1/4 G5

Part# 033212

OEM Warranty Repair Part for Generac

Not available

065908

2

SUPPORT NAT GAS SOLENOID

Part# 065908

OEM Warranty Repair Part for Generac

Not available

0G9191A

3

REG ASSY 6.8L 130 KW DUAL NG QT

Part# 0G9191A

Not available

0G9191B

REG ASSY 6.8L 150 KW DUAL NG QT

Part# 0G9191B

Not available

052617

4

SCREW HHC $12-1.75 X 20 G8.8

Part# 052617

OEM Warranty Repair Part for Generac

Not available

022304

5

WASHER FLAT 1/2 ZINC

Part# 022304

OEM Warranty Repair Part for Generac

Not available

022129

6

WASHER LOCK M8-5/16

Part# 022129

OEM Warranty Repair Part for Generac

Not available

045773

7

NUT HEX M12-1.75 G8 YEL CHR

Part# 045773

OEM Warranty Repair Part for Generac

Not available

022195

8

WASHER LOCK 1/2

Part# 022195

OEM Warranty Repair Part for Generac

Not available

039130

9

NIPPLE CLOSE 1.25 NPT X 1.625

Part# 039130

OEM Warranty Repair Part for Generac

Not available

030131

10

ELBOW 90D 1-1/4 NPT

Part# 030131

OEM Warranty Repair Part for Generac

Not available

031015

11

NIPPLE PIPE 1-1/4 NPT X 3 (130 KW)

Part# 031015

OEM Warranty Repair Part for Generac

Not available

088963

NIPPLE PIPE 1.25 NPT X 5.5 BL IRN (150 KW)

Part# 088963

OEM Warranty Repair Part for Generac

Not available

0G5989

12

HARNESS, FUEL JUMPER DUAL REG

Part# 0G5989

OEM Warranty Repair Part for Generac

Usually leaves our warehouse in 5 to 12 business days

Your price: $419.70

057822

13

CLAMP HOSE #8 .53-1.00

Part# 057822

OEM Warranty Repair Part for Generac

Not available

059057

14

HOSE 3/4 ID SAE-30R2 (42" LG)

Part# 059057

OEM Warranty Repair Part for Generac

Not available

0F4408

15

Y CONNECTOR 500 SERIES BARBS

Part# 0F4408

OEM Warranty Repair Part for Generac

Usually leaves our warehouse in 5 to 12 business days

Your price: $11.02

0D1509

16

DECAL INLET PRESSURE

Part# 0D1509

OEM Warranty Repair Part for Generac

Usually leaves our warehouse in 5 to 12 business days

Your price: $18.42

050279

17

DECAL FUEL INLET NG

Part# 050279

OEM Warranty Repair Part for Generac

Not available

0H2353

18

ASSY,ADAPTER,THROTTLE BODY

Part# 0H2353

Note: ORDER 0J7476

OEM Warranty Repair Part for Generac

Not available

0E4390

19

GASKET GOVERNOR ACTUATOR

Part# 0E4390

OEM Warranty Repair Part for Generac

Usually leaves our warehouse in 5 to 12 business days

Your price: $1.80

0E4392

20

ACTUATOR BOSCH 60 GOVERNOR

Part# 0E4392

OEM Warranty Repair Part for Generac

Usually leaves our warehouse in 5 to 12 business days

Your price: $543.93

0F0960

21

REDUCER 3.0" TO 2.75" TURBO

Part# 0F0960

OEM Warranty Repair Part for Generac

Usually leaves our warehouse in 5 to 12 business days

Your price: $103.48

0F3885

22

MIXER 40/60MM ACTUATOR ASSY

Part# 0F3885

OEM Warranty Repair Part for Generac

Usually leaves our warehouse in 5 to 12 business days

Your price: $101.49

0G3167

23

O-RING 2-3/4 X 3/32 X 2-15/16

Part# 0G3167

OEM Warranty Repair Part for Generac

Usually leaves our warehouse in 5 to 12 business days

Your price: $0.57

0F3691F

24

VENTURI THROTTLE 44MM (130 KW)

Part# 0F3691F

OEM Warranty Repair Part for Generac

Usually leaves our warehouse in 5 to 12 business days

Your price: $7.67

0F3691J

VENTURI THROTTLE 50MM (150 KW)

Part# 0F3691J

OEM Warranty Repair Part for Generac

Usually leaves our warehouse in 5 to 12 business days

Your price: $6.53

026915

25

NIPPLE CLOSE 3/4 X 1.375

Part# 026915

OEM Warranty Repair Part for Generac

Not available

0A8064

26

BSHG RDCR HEX 1-1/4-3/4

Part# 0A8064

OEM Warranty Repair Part for Generac

Usually leaves our warehouse in 5 to 12 business days

Your price: $25.57

026073A

27

PLUG STD PIPE 1/4 STEEL SQ HD

Part# 026073A

OEM Warranty Repair Part for Generac

Usually leaves our warehouse in 5 to 12 business days

Your price: $0.62

0D2157

28

SCREW SHC M6-1.0 X 50 C8.8

Part# 0D2157

OEM Warranty Repair Part for Generac

Usually leaves our warehouse in 5 to 12 business days

Your price: $0.35

039294

29

CLAMP HOSE #44 2.31-3.25

Part# 039294

OEM Warranty Repair Part for Generac

Not available

022097

30

WASHER LOCK M6-1/4

Part# 022097

OEM Warranty Repair Part for Generac

Usually leaves our warehouse in 1 business day

Your price: $1.28

049811

31

WASHER FLAT M6

Part# 049811

OEM Warranty Repair Part for Generac

Not available

0D2698

32

GASKET ADAPTER THROT BODY

Part# 0D2698

OEM Warranty Repair Part for Generac

Usually leaves our warehouse in 5 to 12 business days

Your price: $34.60

042568

33

SCREW HHC M6-1.0X 20 G8.8

Part# 042568

OEM Warranty Repair Part for Generac

Not available

064346

34

PIPE TEE 1-1/4 NPT

Part# 064346

OEM Warranty Repair Part for Generac

Not available

059057

35

HOSE 3/4 ID SAE-30R2 (12" LG)

Part# 059057

OEM Warranty Repair Part for Generac

Not available

066212

36

CLAMP HOSE #52 2.81-3.75

Part# 066212

OEM Warranty Repair Part for Generac

Not available

0G46350ST03

37

BRACKET, HOSE RISER

Part# 0G46350ST03

OEM Warranty Repair Part for Generac

Usually leaves our warehouse in 5 to 12 business days

Your price: $39.59

059057

38

HOSE 3/4 ID SAE-30R2 (9.5" LG)

Part# 059057

OEM Warranty Repair Part for Generac

Not available
