BTB 2226-A - Briggs & Stratton Bent Shaft String Trimmer, 26cc (2012) Engine Group - 26cc 2 Stroke (TR00415H) Parts Diagram

Bent Shaft String Trimmer, 26cc

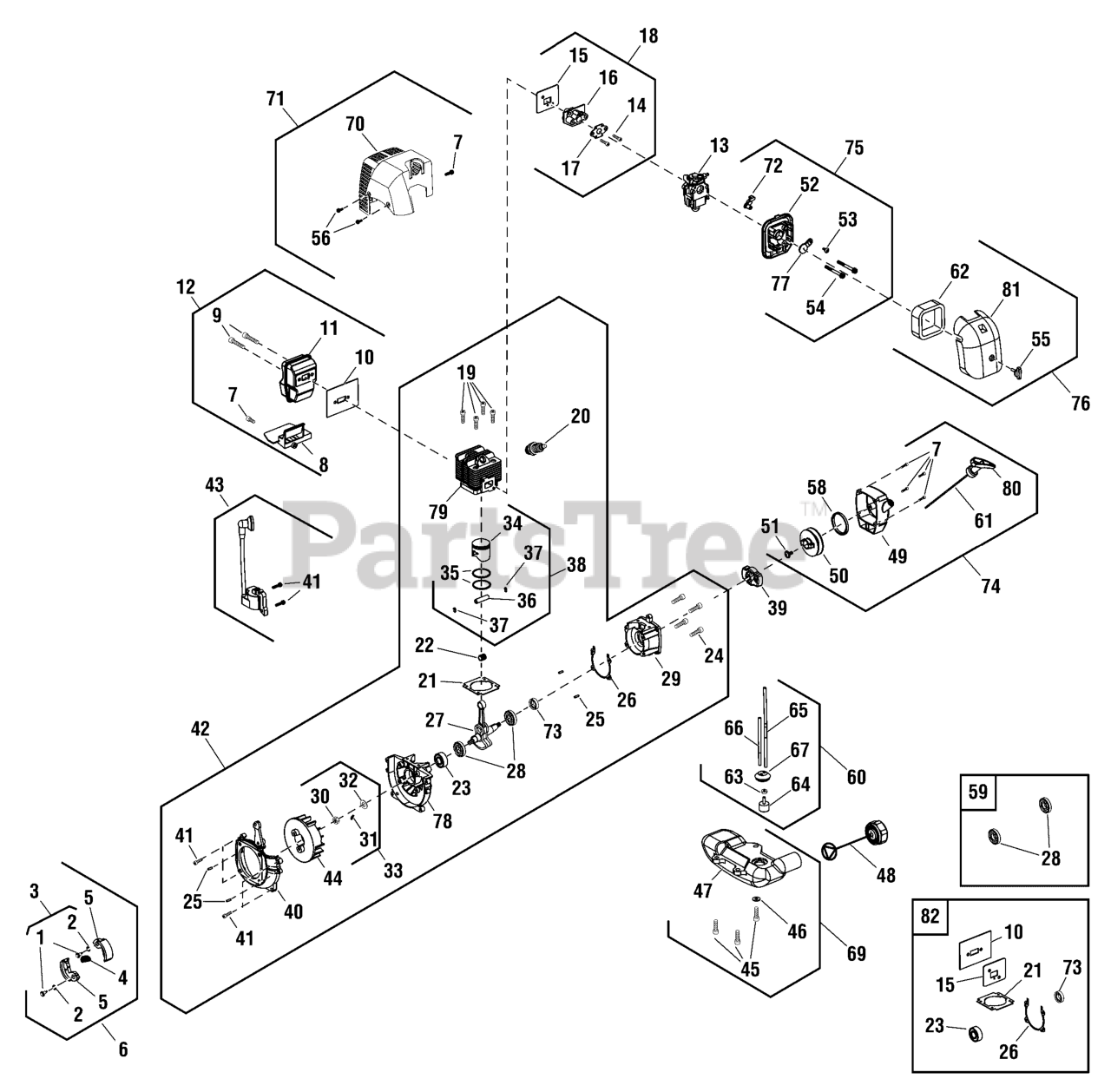

Engine Group - 26cc 2 Stroke (TR00415H) Parts Diagram

  • Title

1

* BOLT, Step, 8

$

$

Not available

2

* WASHER, Clutch

$

$

Not available

3

Murray TR00143A

KIT, Hardware, Bolts & Washers
(Superseded to 706293)

Note: (Includes Ref. Nos. 1 & 2)

$3.99

$

Usually ships in 2-12 days

0

4

* SPRING, Clutch

$

$

Not available

5

* SHOE, Clutch

$

$

Not available

6

Murray TR00138A

CLUTCH & SPRING ASSEMBLY
(Superseded to 706295)

Note: (Includes Ref. Nos. 3, 4 & 5)

$11.99

$

Usually ships in 2-12 days

0

7

* SCREW, Set, M4 x 15

$

$

Not available

8

* HEAT SHIELD

$

$

Not available

9

* BOLT, Inner Hex, M5 x 50

$

$

Not available

10

* SHIELD, Muffler

$

$

Not available

11

* MUFFLER

$

$

Not available

12

Murray TR00146A

MUFFLER ASSEMBLY
(Superseded to 706296)

Note: (Includes Ref. Nos. 7, 8, 9, 10 & 11)

$17.99

$

Usually ships in 2-12 days

0

13

Murray TR00403A

CARBURETOR
(Superseded to 706298)

$43.99

$

Usually ships in 2-12 days

0

14

* SCREW, M5 x 22

$

$

Not available

15

* GASKET, Inlet Manifold

$

$

Not available

16

* INLET MANIFOLD

$

$

Not available

17

* GASKET, Carburetor

$

$

Not available

18

Murray TR00168A

INTLET MANIFOLD ASSEMBLY
(Superseded to 706297)

Note: (Includes Ref. Nos. 14, 15, 16 & 17)

$5.49

$

Usually ships in 2-12 days

0

19

* BOLT, Inner Hex, M5 x 20

$

$

Not available

20

SPARK PLUG

Note: (NGK Part No. BPMR7A or equivalent)

$

$

Not available

21

* GASKET, Cylinder

$

$

Not available

22

* NEEDLE BEARING, K10-14-14

$

$

Not available

23

* OIL SEAL, 12 x 28 x 8

$

$

Not available

24

* BOLT, Inner Hex, M5 x 30

$

$

Not available

25

* PIN, 3 x 10

$

$

Not available

26

* GASKET, Crankcase

$

$

Not available

27

* CRANK SHAFT

$

$

Not available

28

* BALL BEARING, 6001

$

$

Not available

29

* CRANK CASE, Rear

$

$

Not available

30

* NUT, M8 x 1

$

$

Not available

31

* KEY, Woodruff, 3 x 10

$

$

Not available

32

* WASHER, Spring, 8

$

$

Not available

33

Murray TR00132A

KIT, Hardware, Flywheel Securing
(Superseded to 706294)

Note: (Includes Ref. Nos. 30, 31 & 32)

$3.49

$

Usually ships in 2-12 days

0

34

* PISTON

$

$

Not available

35

* RING, Piston

$

$

Not available

36

* PIN, Piston

$

$

Not available

37

* CIRCLIP, Piston Pin

$

$

Not available

38

Murray TR00160A

PIN & GUDGEON PIN ASSEMBLY
(Superseded to 706290)

Note: (Includes Ref. Nos. 34, 35, 36 & 37)

$11.99

$

Usually ships in 2-12 days

0

39

Murray TR00036A

CUP, Starter Pulley, Inner
(Superseded to 706291)

$6.49

$

Usually ships in 2-12 days

0

40

* COVER, Flywheel

$

$

Not available

41

* SCREW, Set, M5 x 18

$

$

Not available

42

Murray TR00180A

SHORT ENGINE ASSEMBLY
(Superseded to 706292)

Note: (Includes Ref. Nos. 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 33, 38, 40, 41, 44, 73, 78 & 79)

$176.99

$

Usually ships in 2-12 days

0

43

Murray TR00144A

IGNITION UNIT
(Superseded to 706302)

Note: (Includes Ref. No. 41)

$21.99

$

Usually ships in 2-12 days

0

44

Murray TR00137A

MAGNETO FLYWHEEL
(Superseded to 706305)

$16.99

$

Usually ships in 2-12 days

0

45

* SCREW, Set, M5 x 20

$

$

Not available

46

* WASHER, Big, 5

$

$

Not available

47

* FUEL TANK

$

$

Not available

48

Murray TR00399H

CAP, Fuel
(Superseded to 706304)

$11.99

$

Usually ships in 2-12 days

0

49

* HOUSING, Starter

$

$

Not available

50

* SPOOL, Starter

$

$

Not available

51

* SCREW, Button Head, M5 x 12

$

$

Not available

52

* AIR CLEANER BODY

$

$

Not available

53

* SCREW, Tapping, M4 x 10

$

$

Not available

54

* SCREW, Set, M5 x 50

$

$

Not available

55

* KNOB, Screw

$

$

Not available

56

* SCREW, Set, M4 x 10

$

$

Not available

58

* COIL, Starter Spring

$

$

Not available

59

Murray TR00198A

KIT, BALL BEARING, Main, 6001
(Superseded to 706300)

Note: (Includes Ref. No. 28)

$11.99

$

Usually ships in 2-12 days

0

60

Murray TR00206A

KIT, Fuel Line & Filter
(Superseded to 706299)

Note: (Includes Ref. Nos. 63, 64, 65, 66 & 67)

$14.99

$

Usually ships in 2-12 days

0

61

* SPOOL, Starter

$

$

Not available

62

Murray TR00201A

FILTER, Air
(Superseded to 706310)

$3.99

$

Usually ships in 2-12 days

0

63

* WASHER, 4

$

$

Not available

64

Murray TR00208A

FILTER, Fuel
(Superseded to 706303)

$9.49

$

Usually ships in 2-12 days

0

65

* TUBE, Fuel, Inlet

$

$

Not available

66

* TUBE, Fuel, Outlet

$

$

Not available

67

* GROMMET, Hose

$

$

Not available

69

Murray TR00404A

KIT, Fuel Tank, With Hardware
(Superseded to 706312)

Note: (Includes Ref. Nos. 45, 46 & 47)

$24.99

$

Usually ships in 2-12 days

0

70

* HOUSING, Starter

$

$

Not available

71

Murray TR00154H

ENGINE COVER ASSEMBLY, Red
(Superseded to 706311)

Note: (Includes Ref. Nos. 7, 56 & 70)

$26.99

$

Usually ships in 2-12 days

0

72

* LEVER, Chock

$

$

Not available

73

* OIL SEAL, 12 x 22 x 7

$

$

Not available

74

Murray TR00153H

STARTER ASSEMBLY, Red
(Superseded to 706314)

Note: (Includes Ref. Nos. 7, 49, 50, 51, 58, 61 & 80)

$27.99

$

Usually ships in 2-12 days

0

75

Murray TR00173H

THROTTLE PLATE ASSEMBLY, Red
(Superseded to 706309)

Note: (Includes Ref. Nos. 52, 53, 54, 72 & 77)

$5.99

$

Usually ships in 2-12 days

0

76

Murray TR00199G

AIR FILTER ASSEMBLY, Black
(Superseded to 706308)

Note: (Includes Ref. Nos. 55, 62 & 81)

$9.49

$

Usually ships in 2-12 days

0

77

* CHOKE VALVE

$

$

Not available

78

* CRANK CASE, Front

$

$

Not available

79

Murray TR00167A

CYLINDER
(Superseded to 706307)

$45.99

$

Usually ships in 2-12 days

0

80

* HANDLE, Starter

$

$

Not available

81

* COVER, Air Cleaner

$

$

Not available

82

Murray TR00204A

KIT, Gasket
(Superseded to 706306)

Note: (Includes Ref. Nos. 10, 15, 21, 23, 26 & 73)

$7.99

$

Usually ships in 2-12 days

0
