BTD 2250 FC (7800322) - Brute 22" Walk-Behind Mower, Canada (2008) Deck Assembly - BTD2250FC Parts Diagram

22" Walk-Behind Mower, Canada

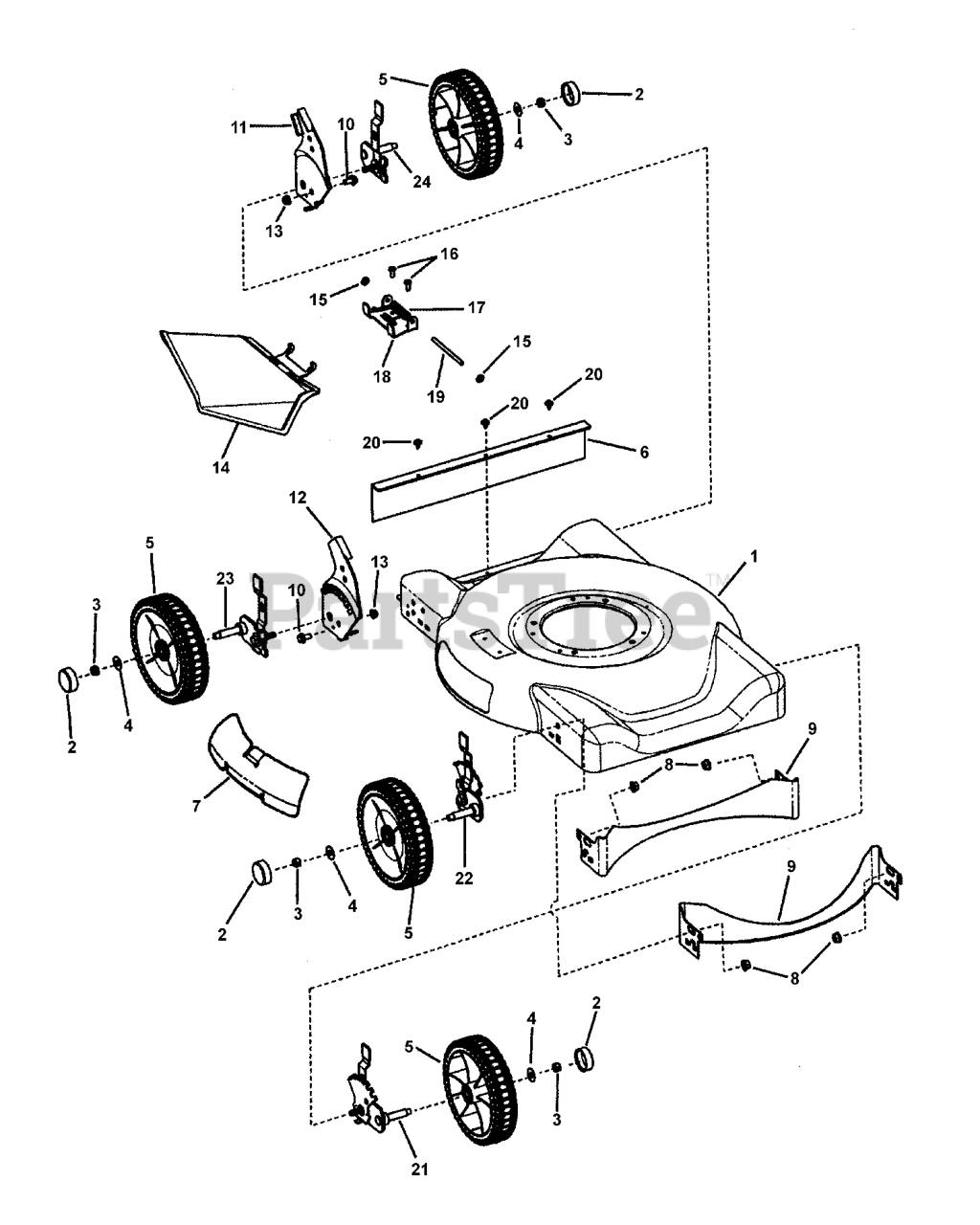

Deck Assembly - BTD2250FC Parts Diagram

  • Title

1

Murray 7300691ZYP

DECK, 22" WBM, Side Discharge

$217.99

$

Usually ships in 2-12 days

0

2

Murray 7101351MA

HUBCAP, Round, Black

$4.99

$

Usually ships in 2-12 days

0

3

Murray 7091585SM

NUT, 3/8-16 Hex Center Lock YZ
(Superseded to 703347)

$4.99

$

In Stock, Qty 20+

0

4

Murray 17X169MA

WASHER, 1" O.D. x .387 I.D. Flat
(Superseded to 703966)

$4.49

$

In Stock, Qty 12

0

5

Murray 7101712MA

ASSY, Wheel, 8" x 2" Idle, w/Db Tread, Brute Yellow

$40.99

$

In Stock, only 1 left!

0

6

Murray 672738MA

GUARD, Rear

$34.99

$

Usually ships in 2-12 days

0

7

Murray 672422ZMA

PLATE, Mulch

$42.99

$

Usually ships in 2-12 days

0

8

Murray 7900053MA

NUT, 3/8-16 Hex Flange Lock, GR 5
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

9

Murray 7300853ZYP

BAFFLE, 22" Side Discharge

$

$

Not available

10

Murray 7090606SM

BOLT, 5/16-18 x 5/8" Hex Flange Lock
(Superseded to 703823)

$3.99

$

In Stock, only 4 left!

0

11

Murray 7300851ZYP

BRACKET, Lower Handle, LH Low Cost

$15.99

$

Usually ships in 2-12 days

0

12

Murray 7300850ZYP

BRACKET, Lower Handle, RH Low Cost

$16.99

$

Usually ships in 2-12 days

0

13

Murray 7090585MA

NUT, 5/16-18 Hex Flange Lock, BZ
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

14

Murray 672421MA

CHUTE, Plastic S/D

$39.99

$

Usually ships in 2-12 days

0

15

Murray 7091020YP

PUSHNUT, 1/4"
(Superseded to 704005)

$4.49

$

In Stock, Qty 20+

0

16

Murray 26X217MA

SCREW, 1/4-20 x 11/16" Pan Head Self-Tap (Torx)
(Superseded to 703961)

$4.49

$

In Stock, Qty 13

0

17

Murray 0166X5MA

SPRING, Torsion, Chute

$4.49

$

Usually ships in 2-12 days

0

18

Murray 7300852ZYP

BRACKET, Chute Low Cost

$8.99

$

Usually ships in 2-12 days

0

19

Murray 215X11ZMA

ROD, Pivot, Mulch Cover

$4.49

$

Usually ships in 2-12 days

0

20

Murray 7091286YP

SCREW, #10-24 x 1/2" Hex Washer Self-Tap - Sems

$4.99

$

In Stock, Qty 12

0

21

Murray 7501064YP

ASSY, HOC, Left Front, 7 Position

$55.99

$

Usually ships in 2-12 days

0

22

Murray 7501063YP

ASSY, HOC, Right Front, 7 Position

$49.99

$

Usually ships in 2-12 days

0

23

Murray 7501059YP

ASSY, HOC, Right Rear, 7 Position

$28.99

$

Usually ships in 2-12 days

0

24

Murray 7501060YP

ASSY, HOC, Left Rear, 7 Position

$30.99

$

Usually ships in 2-12 days

0
