BTD 2250 FC (7800322) - Brute 22" Walk-Behind Mower, Canada (2008) Handles and Controls Parts Diagram

22" Walk-Behind Mower, Canada

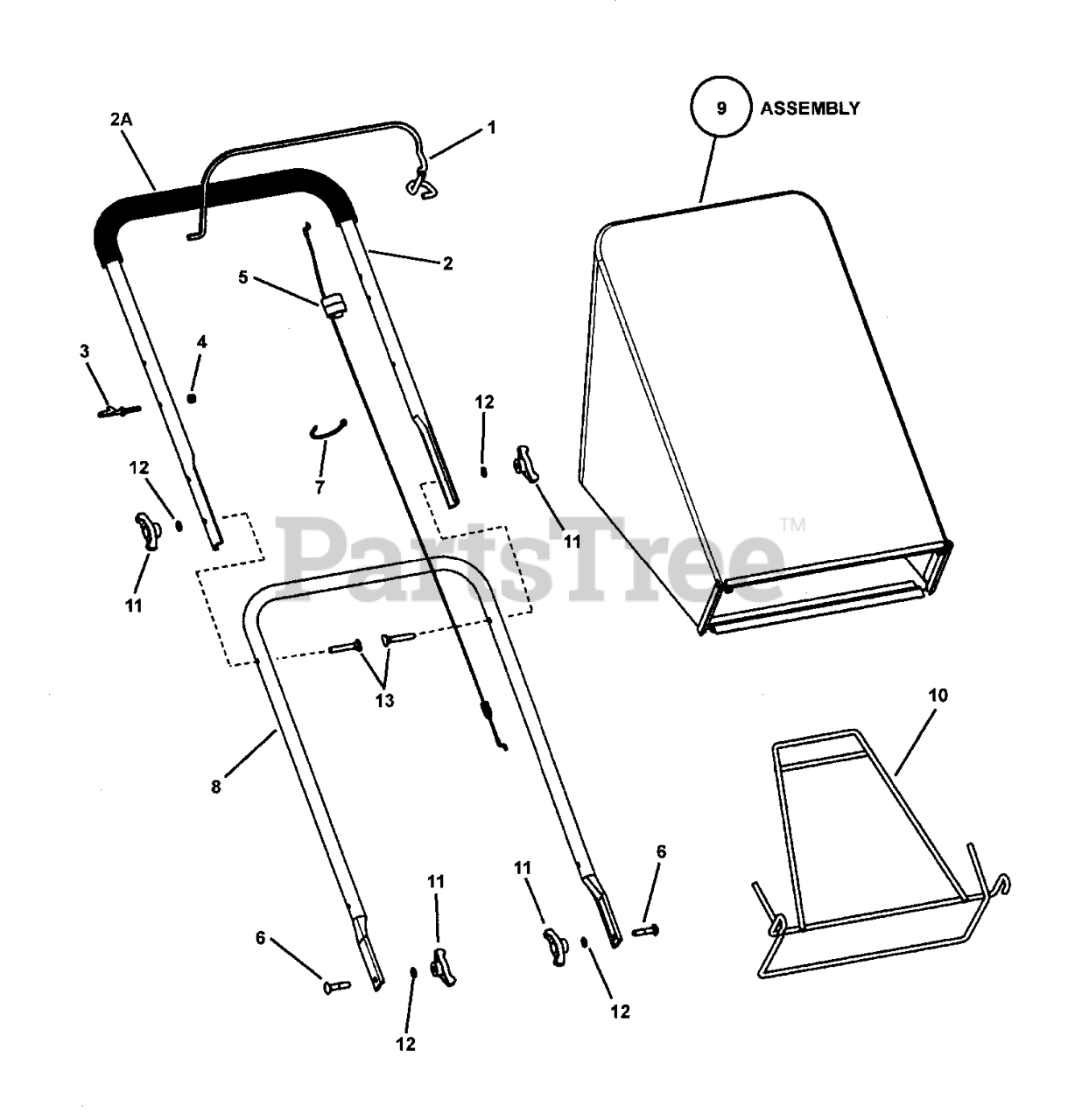

Handles and Controls Parts Diagram

  • Title

1

Murray 7101675AYP

BAIL, OPC Push

$49.99

$

Usually ships in 2-12 days

0

2

Murray 7300705AMA

HANDLE, Upper

$54.99

$

Usually ships in 2-12 days

0

2A

Murray 7023810YP

FOAM GRIP, 18.75"

Note: used on BT2265FC

$8.49

$

Usually ships in 2-12 days

0

3

Murray 071530MA

GUIDE, Rope (1/4-20 thread)

$6.49

$

Usually ships in 2-12 days

0

4

Murray 7076978SM

NUT, 1/4-20 Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

5

Murray 7101808YP

CABLE, Bail (45.00" overall length)

Note: used on BTD2250FC

$17.99

$

Usually ships in 2-12 days

0

5

Murray 7101330YP

CABLE, Bail (41.50" overall length)

Note: used on BT2265FC

$17.99

$

In Stock, only 2 left!

0

6

Murray 1931337SM

BOLT, 5/16-18 x 1-1/2" Short Square Neck Carriage, GR 5 YZ
(Superseded to 703296)

$4.49

$

In Stock, only 3 left!

0

7

Murray 7024649YP

WIRE TIE, 11 Inch Std Black Nylon

$5.49

$

Usually ships in 2-12 days

0

8

Murray 7300706AMA

HANDLE, Lower

$161.99

$

In Stock, only 1 left!

0

9

Murray 7101893MA

ASSY, Grass Bag, Cloth- includes next item below

$200.99

$

Usually ships in 2-12 days

0

--

Murray 1101005MA

BAG, Cloth, Grass Bag

$200.99

$

Usually ships in 2-12 days

0

10

Murray 1101074MA

WELDMENT, Grass Bag Frame

$76.99

$

In Stock, only 1 left!

0

11

Murray 071294MA

KNOB, Wing, 5/16-18
(Superseded to 703065)

$7.49

$

In Stock, Qty 20+

0

12

Murray 7090391SM

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

13

Murray 7091189YP

BOLT, 5/16-18 x 2" Curved Head Square Neck, GR 2
(Superseded to 703059)

$4.49

$

In Stock, Qty 13

0
