BTP 2265 HW (7800267) - Brute 22" Walk-Behind Mower (2008) Handle & Bag Group Parts Diagram

22" Walk-Behind Mower

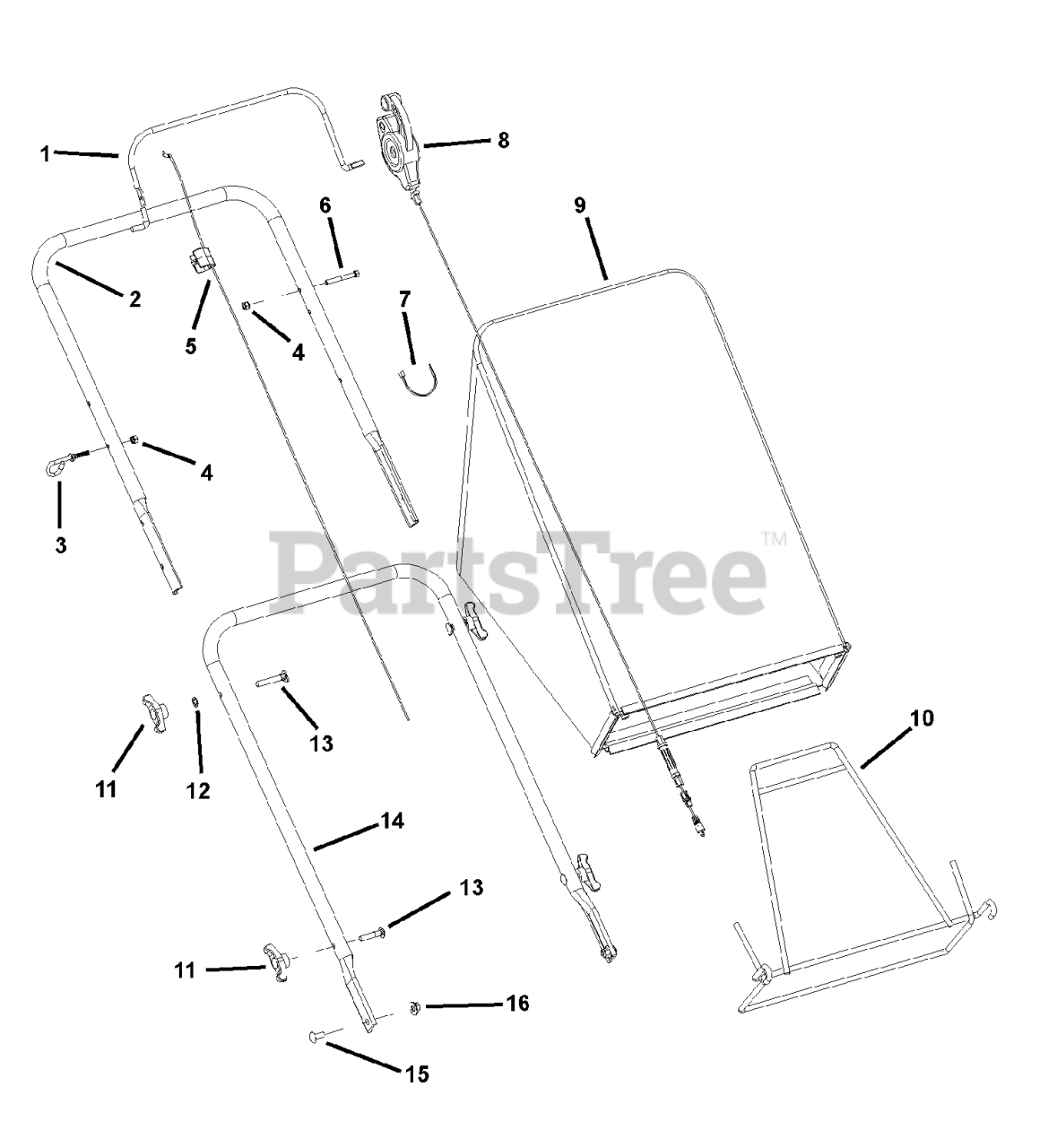

Handle & Bag Group Parts Diagram

  • Title

1

Murray 7101676AMA

BAIL, OPC PROPELLED

$12.99

$

Usually ships in 2-12 days

0

2

Murray 7300705AMA

HANDLE, UPPER, PROPELLED

$51.99

$

Usually ships in 2-12 days

0

--

Murray 7023810YP

FOAM GRIP, 18.75 (on upper handle, not shown)

$8.49

$

Usually ships in 2-12 days

0

3

Murray 071530MA

GUIDE, ROPE (1/4-20 thread)

$5.99

$

Usually ships in 2-12 days

0

4

Murray 7076978SM

NUT, HEX, 1/4C NYL RNG
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

5

Murray 7101861MA

CABLE, BAIL, HW PROPELLED

$16.99

$

In Stock, Qty 6

0

6

Murray 025X14MA

BOLT, HEX .25-20 X 2.00

$3.99

$

Usually ships in 2-12 days

0

7

Murray 7024649YP

WIRE TIE, 11 INCH STD BLK NYLON

$5.49

$

Usually ships in 2-12 days

0

8

Murray 1101670MA

CONTROL, DRIVE, SINGLE SPEED

$54.99

$

Usually ships in 2-12 days

0

9

Murray 7101893MA

GRASS BAG ASSEMBLY, CLOTH (incl. next 2 items below)

$189.99

$

In Stock, only 1 left!

0

--

Murray 1101005MA

BAG, CLOTH, GRASS BAG

$189.99

$

In Stock, only 1 left!

0

--

Murray 1101075MA

FRAME, BAG TOP 22INCH

$113.99

$

Usually ships in 2-12 days

0

10

Murray 1101074MA

WELDMENT, FRAME, GRASS BAG

$71.99

$

In Stock, only 1 left!

0

11

Murray 7035744YP

KNOB, 5/16-18 WING (BLACK)
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

12

Murray 7090391SM

LOCKWASHER, 5/16
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

13

Murray 7091189YP

BOLT, 5/16-18 X 2 GR2
(Superseded to 703059)

$4.49

$

In Stock, Qty 16

0

14

Murray 7300706AMA

HANDLE, LOWER

$152.99

$

In Stock, only 1 left!

0

15

Murray 7091508SM

BOLT, 5/16-18 X 3/4 GR5 YZ
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

16

Murray 7090951SM

NUT, HEX, 5/16-18 BLACK
(Superseded to 704001)

$4.49

$

In Stock, Qty 19

0
