BTP 22675 HW FC (7800324) - Brute 22" Walk-Behind Mower, 6.75hp, Canada (2008) Handle & Bag Group Parts Diagram

22" Walk-Behind Mower, 6.75hp, Canada

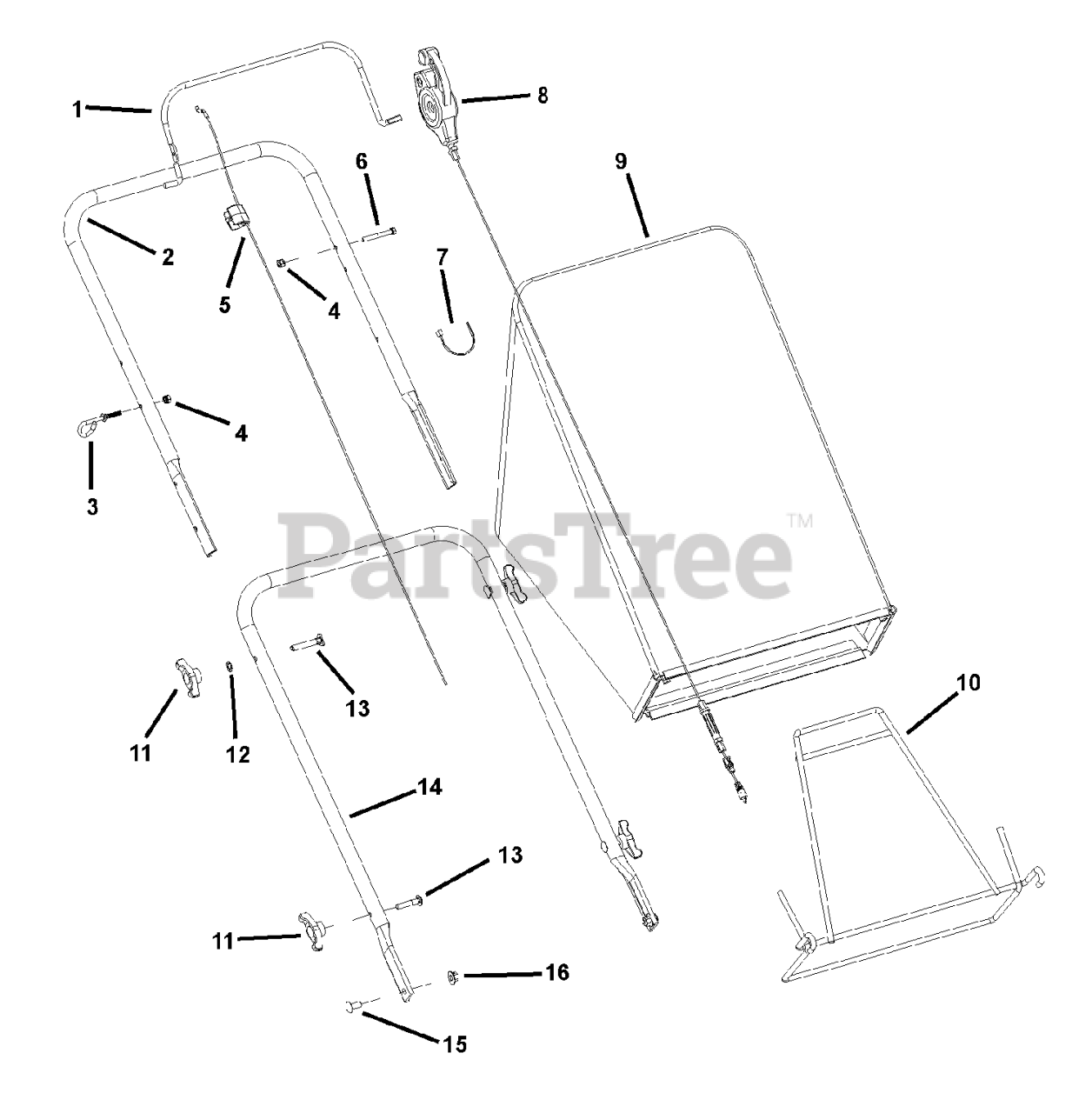

Handle & Bag Group Parts Diagram

  • Title

1

Murray 7101676AMA

BAIL, OPC Propelled

Note: (Used on models with Serial No. 2013491407 & earlier)

$12.99

$

Usually ships in 2-12 days

0

1

Murray 7103975AYP

BAIL, OPC Propelled

Note: (Used on models after Serial No. 2013491407)

$12.99

$

Usually ships in 2-12 days

0

2

Murray 7300705AMA

HANDLE, Upper

$51.99

$

Usually ships in 2-12 days

0

--

Murray 7023810YP

FOAM GRIP, 18.75" (on upper handle, not shown)

$8.49

$

Usually ships in 2-12 days

0

3

Murray 071530MA

GUIDE, Rope (1/4-20 thread)

$5.99

$

Usually ships in 2-12 days

0

4

Murray 7076978SM

NUT, Hex, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

5

Murray 7101861MA

CABLE, Bail

Note: (Used on models with Serial No. 2013491407 & earlier)

$16.99

$

In Stock, Qty 6

0

5

Murray 7103977YP

CABLE, Bail

Note: (Used on models after Serial No. 2013491407)

$41.99

$

In Stock, only 4 left!

0

6

Murray 025X14MA

BOLT, Hex 1/4-20 x 2

$3.99

$

Usually ships in 2-12 days

0

7

Murray 7024649YP

WIRE TIE

$5.49

$

Usually ships in 2-12 days

0

8

Murray 1101670MA

CONTROL, Drive, Single Speed

$54.99

$

Usually ships in 2-12 days

0

--

Murray 7101893MA

GRASS BAG ASSEMBLY (Incl. Bag & Frame, bag top)

Note: (Use with model 7800324)

$189.99

$

In Stock, only 1 left!

0

9

Murray 1101005MA

BAG, Cloth

Note: (Use with model 7800324)

$189.99

$

In Stock, only 1 left!

0

9

Murray 7102573YP

BAG, Cloth

Note: (Use with model 7800471)

$128.99

$

Usually ships in 2-12 days

0

--

Murray 1101075MA

FRAME, Bag Top, 22

Note: (Use with model 7800324)

$113.99

$

Usually ships in 2-12 days

0

10

Murray 1101074MA

FRAME, Grass Bag

Note: (Use with model 7800324)

$71.99

$

In Stock, only 1 left!

0

10

Murray 7101230AYP

FRAME, Grass Bag

Note: (Use with model 7800471)

$222.99

$

Usually ships in 2-12 days

0

11

Murray 7035744YP

KNOB, Wing, 5/16-18
(Superseded to 703065)

Note: (or 671294MA)

$6.99

$

In Stock, Qty 20+

0

12

Murray 7090391SM

LOCKWASHER, 5/16
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

13

Murray 7091189YP

BOLT, 5/16-18 x 2, GR2
(Superseded to 703059)

$4.49

$

In Stock, Qty 16

0

14

Murray 7300706AMA

HANDLE, Lower

Note: (Use with model 7800324)

$152.99

$

In Stock, only 1 left!

0

14

Murray 7301013AYP

HANDLE, Lower

Note: (Use with model 7800471)

$143.99

$

Usually ships in 2-12 days

0

15

Murray 7091508SM

BOLT, 5/16-18 x 3/4, GR5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

16

Murray 7090951SM

NUT, Hex, 5/16-18
(Superseded to 704001)

$4.49

$

In Stock, Qty 19

0
