BTPD 22625 (7800661) - Brute 22" Walk-Behind Mower (2010) Transmission & Wheel Group Parts Diagram

22" Walk-Behind Mower

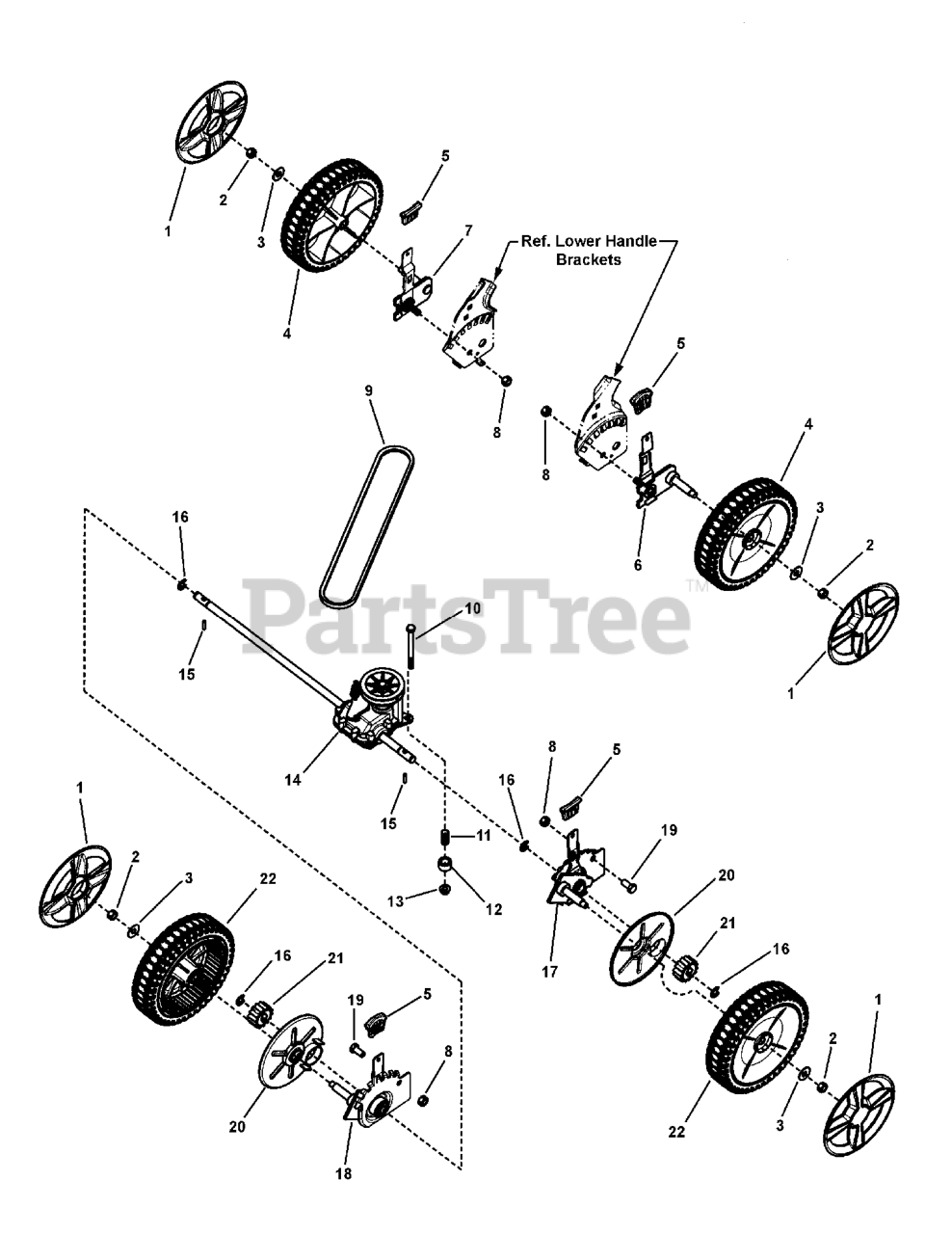

Transmission & Wheel Group Parts Diagram

  • Title

1

Murray 7103539YP

HUBCAP, 8"& 9" Wheel Spoked, P-391 St Yellow

$10.99

$

Usually ships in 2-12 days

0

2

Murray 7091585SM

NUT, 3/8-16 Hex Center Lock, YZ
(Superseded to 703347)

$4.99

$

In Stock, Qty 20+

0

3

Murray 17X169MA

WASHER, 1" OD x .387 ID Flat
(Superseded to 703966)

$4.49

$

In Stock, Qty 12

0

4

Murray 7103541YP

WHEEL, 8" X 2" Idle w/Db Tread, Brute, Satin Black

$41.99

$

Usually ships in 2-12 days

0

5

Murray 7103542YP

GRIP, Height Latch, P-391-St, Yellow

$4.49

$

Usually ships in 2-12 days

0

6

Murray 7600113YP

KIT, LR, Height-Of-Cut, 22" WBM 2N1

$

$

Not available

7

Murray 7600114YP

KIT, RR, Height-Of-Cut, 22" WBM 2N1

$48.99

$

Usually ships in 2-12 days

0

8

Murray 7900053MA

NUT, 3/8-16, Hex Flange Lock GR 5
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

9

Murray 7104084YP

BELT, Drive 22" WBM Single Speed

Note: (3L section; 33.30 effective length)

$23.99

$

Usually ships in 2-12 days

0

10

Murray 7091058YP

SCREW, 5/16-18 x 3-3/4" Hex Head Cap, GR 5
(Superseded to 5025011X30SM)

$6.49

$

Usually ships in 2-12 days

0

11

Murray 164X27MA

SPRING, Compression

$4.49

$

Usually ships in 2-12 days

0

12

Murray 7102671YP

SPACER, Drive Transmission

$3.99

$

Usually ships in 2-12 days

0

13

Murray 015X88MA

NUT, 5/16-18 Hex Flange Lock
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

14

Murray 7101206MA

TRANSMISSION, 22" WBM Single Speed, Front Wheel Drive

$137.99

$

Usually ships in 2-12 days

0

15

Murray 7101270YP

PIN, Drive, 22" WBM, Front Wheel Drive

$5.49

$

In Stock, Qty 11

0

16

Murray 7014341YP

RETAINING RING
(Superseded to 703976)

$4.49

$

In Stock, Qty 20+

0

17

Murray 7600115YP

KIT, LF, Height-Of-Cut, Front Wheel Drive, 2N1

$109.99

$

Usually ships in 2-12 days

0

18

Murray 7600116YP

KIT, RF, Height-Of-Cut, Front Wheel Drive, 2N1

$93.99

$

Usually ships in 2-12 days

0

19

Murray 001X85MA

BOLT, 3/8-16 x 3/4" Hex Head, GR 5
(Superseded to 5025013X6SM)

$3.99

$

In Stock, only 3 left!

0

20

Murray 7101402YP

SHIELD, Dust, 22" WBM, Front Wheel Drive

$7.99

$

In Stock, only 2 left!

0

21

Murray 7101207YP

GEAR, Pinion, 22" WBM, Front Wheel Drive

$8.99

$

In Stock, only 2 left!

0

22

Murray 7103500YP

WHEEL, 8" x 2" Drive, w/DB Tread P-290 Satin Black

$34.99

$

In Stock, Qty 8

0
