BTPD 22625 (7800821) - Brute 22" Walk-Behind Mower (2011) Deck Group (7501774) Parts Diagram

22" Walk-Behind Mower

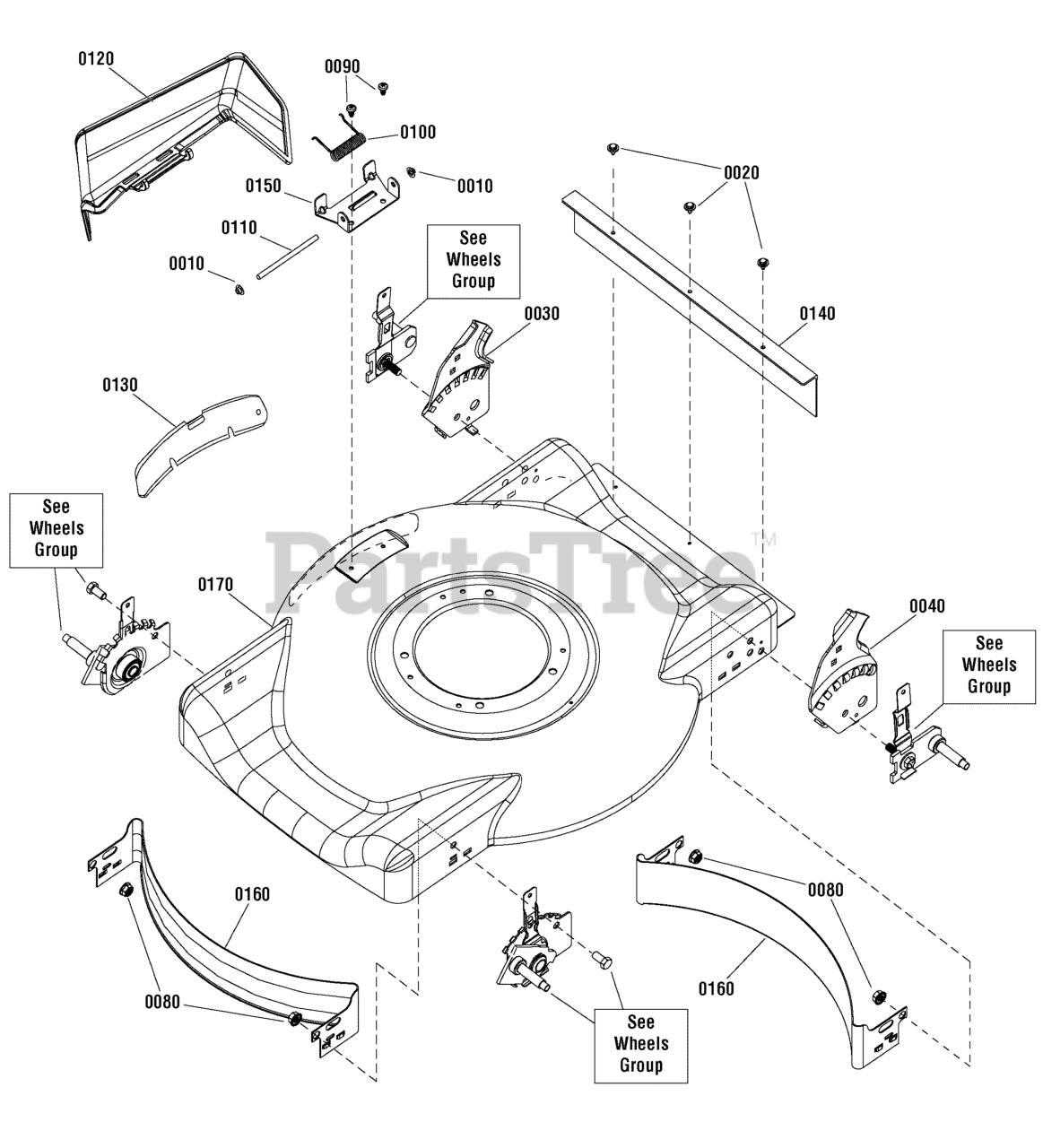

Deck Group (7501774) Parts Diagram

  • Title

0010

Murray 7091020YP

NUT, Push, 1/4
(Superseded to 704005)

$4.49

$

In Stock, Qty 20+

0

0020

Murray 7091286YP

SCREW, Self Tap, SEMS, #10-24 x 1/2

$4.99

$

In Stock, Qty 17

0

0030

Murray 7300850AYP

BRACKET, Handle, RH

$15.99

$

Usually ships in 2-12 days

0

0040

Murray 7300851AYP

BRACKET, Handle, LH

$15.99

$

Usually ships in 2-12 days

0

0080

Murray 7900053MA

NUT, 3/8-16 Hex Flange Lock, GR 5

$3.99

$

Usually ships in 2-12 days

0

0090

Murray 7900067YP

SCREW, Pan Head, Self Tap, Torx, 1/4-20 x 1/2

$4.49

$

In Stock, Qty 20+

0

0100

Murray 0166X5MA

SPRING, Torsion, Chute

$3.99

$

Usually ships in 2-12 days

0

0110

Murray 215X11ZMA

ROD, Pivot, Mulch Cover

$4.49

$

Usually ships in 2-12 days

0

0120

Murray 672421MA

CHUTE, Plastic Side Discharge

$38.99

$

Usually ships in 2-12 days

0

0130

Murray 672422ZMA

PLATE, Mulch

$41.99

$

Usually ships in 2-12 days

0

0140

Murray 672738MA

GUARD, Rear

$32.99

$

Usually ships in 2-12 days

0

0150

Murray 7300852ZYP

BRACKET, Chute

$8.99

$

Usually ships in 2-12 days

0

0160

Murray 7300853ZYP

BAFFLE, 22" Side Discharge

$51.99

$

Usually ships in 2-12 days

0

0170

Murray 7301115ZYP

DECK, 22" WBM, Side Discharge

$225.99

$

Usually ships in 2-12 days

0
