BTPV 21675 E (7800268) - Brute 21" Walk-Behind Mower (2008) Deck Assembly (BTPV21) Parts Diagram

21" Walk-Behind Mower

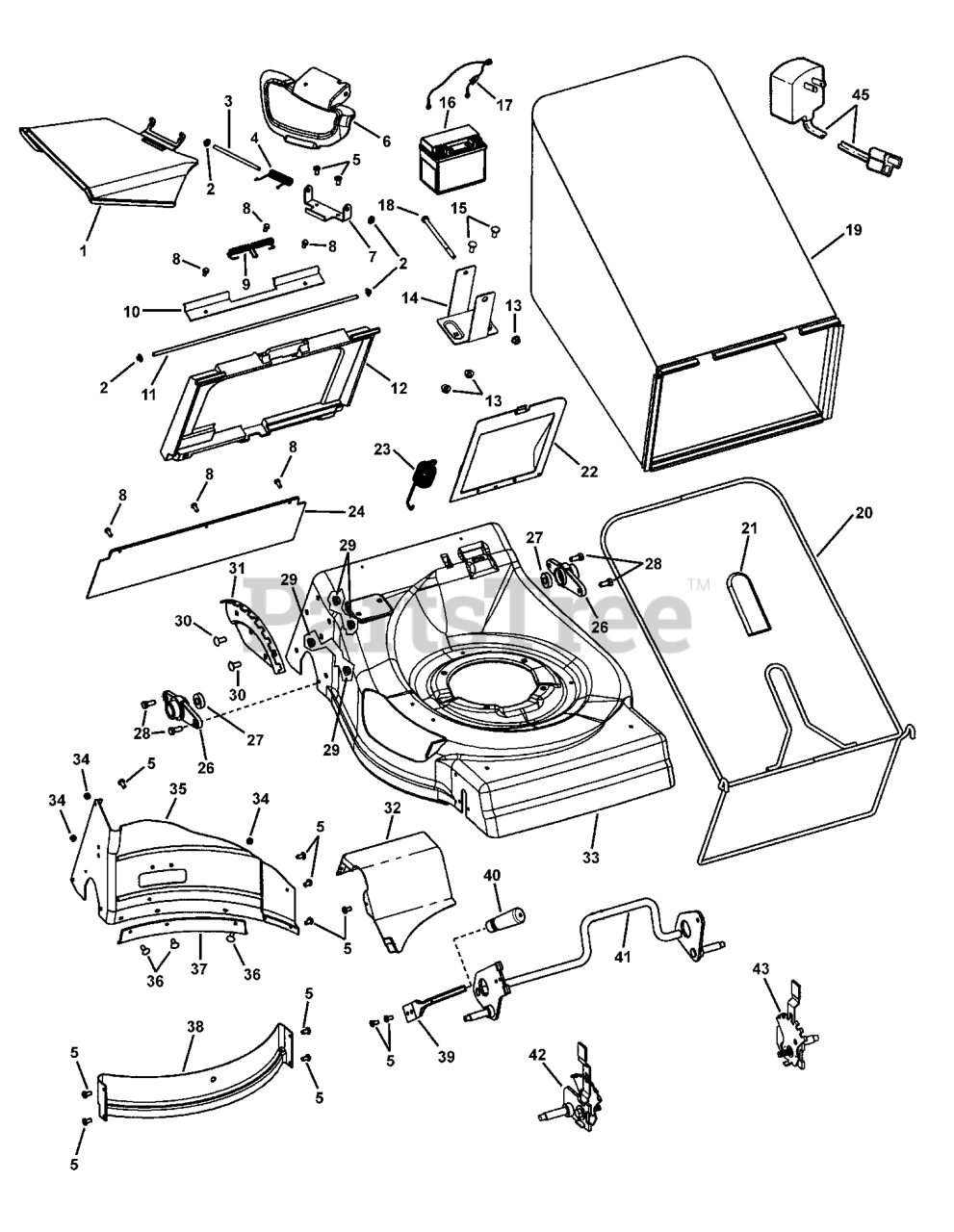

Deck Assembly (BTPV21) Parts Diagram

  • Title

1

Murray 7101490YP

CHUTE, 21" SIDE DISCHARGE

$43.99

$

In Stock, only 1 left!

0

2

Murray 7091020YP

PUSHNUT 1/4
(Superseded to 704005)

$4.49

$

In Stock, Qty 20+

0

3

Murray 7101471YP

ROD, MULCH COVER PIVOT

$4.49

$

Usually ships in 2-12 days

0

4

Murray 166X38MA

SPRING, TORSION, CHUTE

$4.99

$

In Stock, only 2 left!

0

5

Murray 26X217MA

TORX ST, 1/4-20 X 11/16
(Superseded to 703961)

$4.49

$

In Stock, Qty 20+

0

6

Murray 7101437YP

COVER, 21" MULCHING

$20.99

$

Usually ships in 2-12 days

0

7

Murray 7300590ZMA

BRACKET, CHUTE DEFLECTOR

$6.49

$

Usually ships in 2-12 days

0

8

Murray 7091286YP

HWST, 10-24X.50 SEMS

$4.99

$

In Stock, Qty 17

0

9

Murray 166X33MA

SPRING, TORSION

$6.99

$

In Stock, only 1 left!

0

10

Murray 071410MA

SPACER, REAR DOOR 21"

$7.99

$

Usually ships in 2-12 days

0

11

Murray 7101314YP

ROD, REAR DOOR PIVOT, 21" RD

$6.99

$

In Stock, only 1 left!

0

12

Murray 071409MA

DOOR, 21" BLACK

$66.99

$

Usually ships in 2-12 days

0

13

Murray 2860694SM

NUT, HEX FLANGE, 1/4-20, ESNA, YZ
(Superseded to 703463)

$4.49

$

In Stock, Qty 5

0

14

Murray 7300460ZMA

BRACKET, BATTERY, 22" WBM ES

$4.99

$

Usually ships in 2-12 days

0

15

Murray 7090803YP

BOLT, 1/4-20X5/8
(Superseded to 703841)

$3.99

$

Usually ships in 2-12 days

0

16

Murray 7101320YP

BATTERY KIT, Sealed Lead Acid 12V
(Superseded to 7067012YP)

Note: (Kit includes harness 7105488YP)

$93.99

$

Usually ships in 2-12 days

0

17

Murray 7015488YP

HARNESS, BATTERY

$14.99

$

Usually ships in 2-12 days

0

18

Murray 7900011MA

HHCS, 1/4-20 x 4" GR 5

$4.99

$

Usually ships in 2-12 days

0

19

Murray 7101304YP

GRASSBAG, 21" RD

$119.99

$

In Stock, only 1 left!

0

20

Murray 7101303AYP

BAG FRAME - 21" RD WBM

$179.99

$

Usually ships in 2-12 days

0

21

Murray 7026421YP

GRIP, RECTANGULAR (BLACK)

$6.49

$

In Stock, only 2 left!

0

22

Murray 7300723ZMA

TRANSMISSION COVER, REAR 21"

$33.99

$

Usually ships in 2-12 days

0

23

Murray 7101434YP

SPRING, EXTENSION, HOC ASSIST

$6.99

$

In Stock, only 1 left!

0

24

Murray 7101553YP

DEFLECTOR, REAR, 21" WBM, RD

$

$

Not available

26

Murray 7101418YP

BEARING HOLDER, 21" WBM, RD

$15.99

$

In Stock, only 1 left!

0

27

Murray 7078243YP

BEARING, Ball

$10.99

$

In Stock, only 2 left!

0

28

Murray 7091318SM

CAPSCREW, 5/16 X 3/4 GR5 YZ
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

29

Murray 7091601SM

FLANGE NUT, 5/16-18 YZ
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

30

Murray 7091508SM

BOLT, 5/16-18 X 3/4 GR5 YZ
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

31

Murray 7300933ZMA

PLATE, HEIGHT OF CUT, INDEX, 7 POS, RD

$12.99

$

Usually ships in 2-12 days

0

32

Murray 7300591ZMA

BAFFLE, RIGHT REAR, 21" WBM, RD
(Superseded to 7300591BMYP)

$65.99

$

In Stock, only 1 left!

0

33

Murray 7300931ZMA

DECK, 21" BRUTE, RD

$270.99

$

Usually ships in 2-12 days

0

34

Murray 7091290SM

NUT, 10-24 UNC-2B W/NYLON INSERT
(Superseded to 703412)

$4.49

$

In Stock, Qty 12

0

35

Murray 7300589ZMA

BAFFLE, LEFT REAR, 21"RD,WBM

$

$

Not available

36

Murray 7091711YP

BOLT, 10-24 X 5/8 YZ
(Superseded to 7091283YP)

$4.49

$

In Stock, only 4 left!

0

37

Murray 7101502YP

BAFFLE, EXTENSION, 21" RD WBM

$8.49

$

In Stock, only 1 left!

0

38

Murray 7300585ZMA

BAFFLE, FRONT 21" WBM, RD

$82.99

$

Usually ships in 2-12 days

0

39

Murray 672278MA

LEVER, SPRING HOC

$12.99

$

Usually ships in 2-12 days

0

40

Murray 671297MA

GRIP, HEIGHT OF CUT

$6.49

$

In Stock, only 1 left!

0

41

Murray 7400203ZMA

WELDMENT, REAR CROSSBAR 21" WBM, RD
(Superseded to 7400275YP)

$110.99

$

In Stock, only 1 left!

0

42

Murray 7501068YP

HEIGHT OF CUT ASSEMBLY, RF, 7 POSITION

$31.99

$

In Stock, only 1 left!

0

43

Murray 7501067YP

HEIGHT OF CUT ASSEMBLY, LF, 7 POSITION

$29.99

$

Usually ships in 2-12 days

0

45

Murray 206838YP

CHARGER, BATTERY 120V/12V
(Superseded to 770625)

$59.99

$

In Stock, only 1 left!

0

46

Murray 071250MA

PLUG, MULCHING (not shown)

$97.99

$

In Stock, only 1 left!

0
