BTPV 21675 E (7800268) - Brute 21" Walk-Behind Mower (2008) Handles and Controls (BTPV21) Parts Diagram

21" Walk-Behind Mower

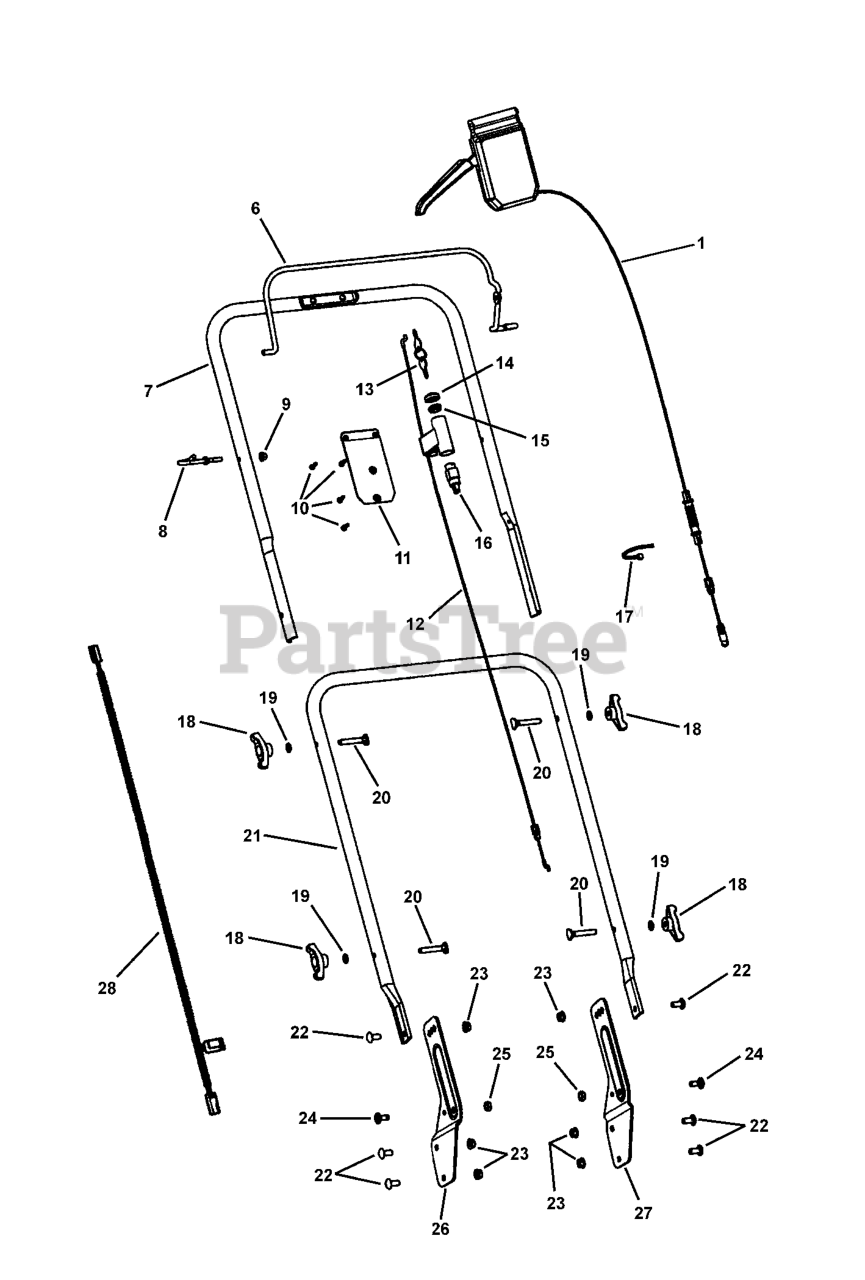

Handles and Controls (BTPV21) Parts Diagram

  • Title

1

Murray 7101892MA

CONTROL HEAD ASSEMBLY, SINGLE SPEED, BRUTE

$78.99

$

Usually ships in 2-12 days

0

6

Murray 7101731AMA

BAIL, OPC PROPELLED BRUTE
(Superseded to 7101731BMYP)

$69.99

$

In Stock, only 1 left!

0

7

Murray 7300676AMA

HANDLE, UPPER, BRUTE, PROPELLED

$

$

Not available

8

Murray 7028488MA

GUIDE, ROPE (1/4-20 thread)

$6.49

$

In Stock, only 1 left!

0

9

Murray 2860694SM

NUT, HEX FLANGE, 1/4-20, ESNA, YZ
(Superseded to 703463)

$4.49

$

In Stock, only 3 left!

0

10

Murray 7100225YP

#8-16 TORXPLUS RECESSED PAN HEAD, TWIN HELIX
(Superseded to 704209)

$3.99

$

Usually ships in 2-12 days

0

11

Murray 7300130AMA

CONTROL PANEL PLATE

$22.99

$

Usually ships in 2-12 days

0

12

Murray 7101872MA

CABLE, BAIL, 21" WBM, BRUTE, ES

$24.99

$

In Stock, only 1 left!

0

13

Murray 7011138YP

IGNITION KEY PAIR

$7.49

$

In Stock, Qty 9

0

14

Murray 7100330YP

CAP, E-START

$6.99

$

Usually ships in 2-12 days

0

15

Murray 7100329YP

NUT, 5/8"-32 E-START
(Superseded to 703995)

$5.99

$

Usually ships in 2-12 days

0

16

Murray 7028765YP

SWITCH, E/S (START/RUN)
(Superseded to 690646)

$34.99

$

In Stock, only 1 left!

0

17

Murray 7024649YP

WIRE TIE, 11 INCH STD BLK NYLON

$5.49

$

Usually ships in 2-12 days

0

18

Murray 7035744YP

KNOB, 5/16-18 WING (BLACK)
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

19

Murray 7090391SM

WASHER, 5/16
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

20

Murray 7091189YP

CHSNB, 5/16-18 X 2 GR2
(Superseded to 703059)

$4.49

$

In Stock, Qty 16

0

21

Murray 7300592AMA

HANDLE, LOWER 21" RD, JD
(Superseded to 7301182AYP)

$87.99

$

In Stock, only 1 left!

0

22

Murray 7091508SM

BOLT, 5/16-18 X 3/4 GR5 YZ
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

23

Murray 7091601SM

FLANGE NUT, 5/16-18 YZ
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

24

Murray 1931333SM

BOLT, 5/16-18 X 3/4 GR5 BZ
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

25

Murray 1920161SM

NUT, Hex Jam, 5/16-18

$4.49

$

In Stock, Qty 10

0

26

Murray 7300573ZMA

LOWER HANDLE BRACKET, LH, JD 21" WBM, RD

$

$

Not available

27

Murray 7300574ZMA

LOWER HANDLE BRACKET, RH, JD 21" WBM, RD

$26.99

$

Usually ships in 2-12 days

0

28

Murray 7101504YP

WIRE HARNESS, SNAPPER, RD 21"

$45.99

$

Usually ships in 2-12 days

0
