BTPV 21675 E (7800268) - Brute 21" Walk-Behind Mower (2008) Transmission, Front and Rear Wheels Parts Diagram

21" Walk-Behind Mower

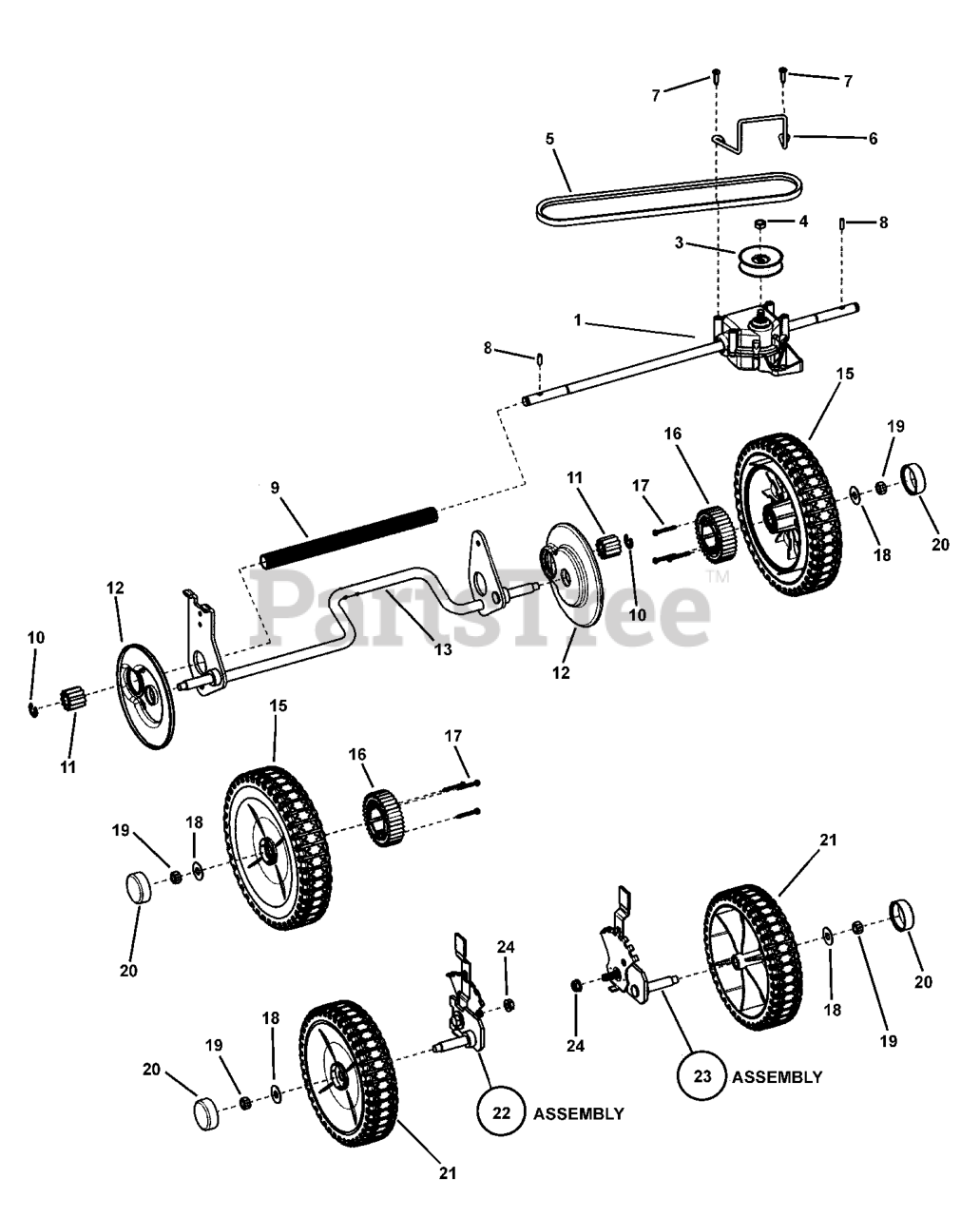

Transmission, Front and Rear Wheels Parts Diagram

  • Title

1

Murray 7101245YP

TRANSMISSION, 21" WBM, RD

$136.99

$

Usually ships in 2-12 days

0

3

Murray 7100240YP

PULLEY, TRANS VAR SPD LC WBM

$23.99

$

In Stock, only 1 left!

0

4

Murray 1960251SM

NUT, JAM, 3/8-16 BLK
(Superseded to 703230)

$4.99

$

In Stock, only 2 left!

0

5

Murray 7100883YP

BELT, 3L, TRACTION DRIVE, 21" PIVOT HANDLE

Note: 32.86" Effective Length

$20.99

$

In Stock, Qty 7

0

6

Murray 7100863YP

BELT GUIDE, TRANSMISSION

$6.49

$

In Stock, only 1 left!

0

7

Murray 7091195SM

SCREW, #10-16 X 3/4, COMBO

$4.49

$

In Stock, only 1 left!

0

8

Murray 7100861YP

PIN, AXLE

$4.99

$

In Stock, only 1 left!

0

9

Murray 043649MA

SHIELD, AXLE

$5.99

$

Usually ships in 2-12 days

0

10

Murray 7014341YP

RETAINING RING
(Superseded to 703976)

$4.49

$

In Stock, Qty 20+

0

11

Murray 7100820YP

GEAR, PINION

$6.49

$

Usually ships in 2-12 days

0

12

Murray 7101367YP

SHIELD DUST, 21" WBM, RD

$7.49

$

In Stock, only 2 left!

0

13

Murray 7400203ZMA

WELDMENT, REAR CROSSBAR 21" WBM, RD
(Superseded to 7400275YP)

Note: also shown on Deck Assembly page

$110.99

$

In Stock, only 1 left!

0

15

Murray 7500688MA

WHEEL ASSEMBLY, W/BEARING 9" ST TRD, BRUTE

Note: incl. 2 ball bearings, p/n 7101380

$43.99

$

Usually ships in 2-12 days

0

16

Murray 7100914YP

GEAR, EXTERNAL WHEEL

$10.99

$

In Stock, only 2 left!

0

17

Murray 7091196SM

SCREW, #8 X 1-1/4, HI-LO

$4.99

$

Usually ships in 2-12 days

0

18

Murray 17X169MA

WASHER, FLAT, 1" OD X .387 ID
(Superseded to 703966)

$4.49

$

In Stock, only 2 left!

0

19

Murray 7091585SM

NUT, 3/8-16 YZ
(Superseded to 703347)

$4.99

$

In Stock, Qty 17

0

20

Murray 7101351MA

HUBCAP, ROUND, BLACK

$4.99

$

Usually ships in 2-12 days

0

21

Murray 7101712MA

WHEEL, 8"X 2" IDLE, W/DB TRD, BRUTE YELLOW

$39.99

$

Usually ships in 2-12 days

0

22

Murray 7501068YP

HEIGHT OF CUT ASSEMBLY, RF, BRUTE 21, 7 POSITION

$31.99

$

In Stock, only 1 left!

0

23

Murray 7501067YP

HEIGHT OF CUT ASSEMBLY, LF, BRUTE 21, 7 POSITION

$29.99

$

Usually ships in 2-12 days

0

24

Murray 7900053MA

NUT, 3/8-16, BRIGHT ZINC

$3.99

$

Usually ships in 2-12 days

0
