BTPV 22675 E (7800510) - Brute 22" Walk-Behind Mower (2009) Deck Assembly Parts Diagram

22" Walk-Behind Mower

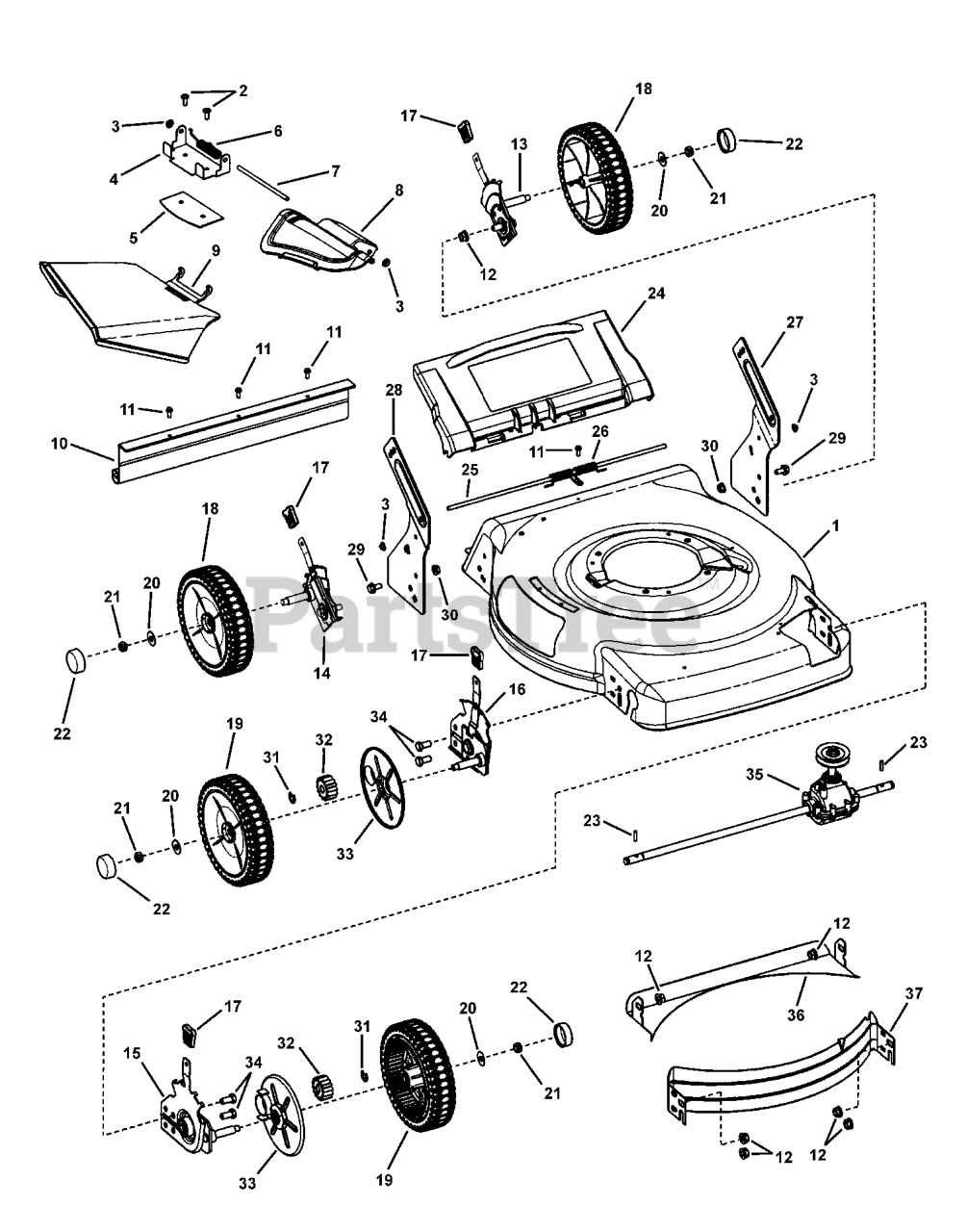

Deck Assembly Parts Diagram

  • Title

1

Murray 7301035ZYP

DECK, 22" Walk, 3-N-1, Electric Start

$232.99

$

Usually ships in 2-12 days

0

2

Murray 7900067YP

SCREW, 1/4-20 x .550 Pan Head Torx (T-30)

$4.49

$

In Stock, Qty 16

0

3

Murray 7091020YP

PUSHNUT, 1/4"
(Superseded to 704005)

$4.49

$

In Stock, Qty 6

0

4

Murray 7300855ZMA

BRACKET, Chute

$

$

Not available

5

Murray 7300856ZMA

PLATE, Mulch 22" RB Scotts

$6.49

$

Usually ships in 2-12 days

0

6

Murray 166X38MA

SPRING, Chute (Torsion)

$5.49

$

In Stock, only 1 left!

0

7

Murray 215X19ZMA

ROD, Chute Pivot
(Superseded to 7101067YP)

$7.49

$

Usually ships in 2-12 days

0

8

Murray 1101098MA

COVER, Mulch, Plastic, Black

$35.99

$

In Stock, only 1 left!

0

9

Murray 1101097MA

SIDE CHUTE, Plastic, Black

$40.99

$

In Stock, only 2 left!

0

10

Murray 7103347YP

GUARD, Rear, 22" Mower Deck

$

$

Not available

11

Murray 7091286YP

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Sems)

$4.99

$

In Stock, Qty 12

0

12

Murray 7900053MA

NUT, 3/8-16, Hex Flange Lock GR 5
(Superseded to 703333)

$4.99

$

In Stock, Qty 5

0

13

Murray 7501055YP

ASSY, Height-Of-Cut, Left Rear, 22" S.P.

$

$

Not available

14

Murray 7501056YP

ASSY, Height-Of-Cut, Right Rear, 22" S.P.

$27.99

$

Usually ships in 2-12 days

0

15

Murray 7501058YP

ASSY, Height-Of-Cut, Left Front, 22 S.P.

$91.99

$

In Stock, only 1 left!

0

16

Murray 7501057YP

ASSY, Height-Of-Cut, Right Front, 22 S.P.

$78.99

$

Usually ships in 2-12 days

0

17

Murray 7100633YP

GRIP, Height Latch
(Superseded to 7103793YP)

$4.49

$

In Stock, Qty 20+

0

18

Murray 7101712MA

WHEEL, 8" x 2" Idle, w/Db Tread

Note: (Brute yellow)

$40.99

$

Usually ships in 2-12 days

0

19

Murray 7101710MA

WHEEL, 8" x 2" Drive, w/Db Tread

Note: (Brute yellow)

$40.99

$

In Stock, only 1 left!

0

20

Murray 17X169MA

WASHER, 1" O.D. x .387 I.D. Flat
(Superseded to 703966)

$4.49

$

In Stock, only 4 left!

0

21

Murray 7091585SM

NUT, 3/8-16 Hex Center Lock, GR 5 or B
(Superseded to 703347)

$4.99

$

In Stock, only 4 left!

0

22

Murray 7101351MA

HUBCAP, Round, Black

$4.99

$

Usually ships in 2-12 days

0

23

Murray 7101270YP

DRIVE PIN, 22" WBM, Front Wheel Drive

$5.49

$

In Stock, only 2 left!

0

24

Murray 7101243YP

DOOR, 22" Rear

$54.99

$

Usually ships in 2-12 days

0

25

Murray 7101070YP

ROD, Pivot, Rear Door (1/4" Dia. X 17-1/2")

$6.99

$

Usually ships in 2-12 days

0

26

Murray 7101461YP

SPRING, Torsion, Rear Door, 22" WBM

$6.99

$

Usually ships in 2-12 days

0

27

Murray 7300668AYP

BRACKET, Lower Handle, LH, 22" WBM

$32.99

$

Usually ships in 2-12 days

0

28

Murray 7300669AYP

BRACKET, Lower Handle, RH, 22" WBM

$32.99

$

In Stock, only 1 left!

0

29

Murray 7090606SM

BOLT, 5/16-18 x 5/8" Hex Flange Lock
(Superseded to 703823)

$3.99

$

In Stock, only 2 left!

0

30

Murray 7090585MA

NUT, 5/16-18 Hex Flange Lock, GR 5
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

31

Murray 7014341YP

RING, External Retaining
(Superseded to 703976)

$4.49

$

In Stock, Qty 15

0

32

Murray 7101207YP

GEAR, Pinion, 22" WBM, Front Wheel Drive

$8.99

$

In Stock, only 2 left!

0

33

Murray 7101402YP

DUST SHIELD, Forward, 22" WBM

$7.99

$

In Stock, only 2 left!

0

34

Murray 7090134MA

SCREW, 3/8-16 x 3/4" Hex Head Cap, GR 5
(Superseded to 5025013X6SM)

$3.99

$

Usually ships in 2-12 days

0

35

Murray 7100857YP

TRANSMISSION, Rocker, 22" WBM, VS

$121.99

$

Usually ships in 2-12 days

0

36

Murray 7300854ZMA

BAFFLE, Rear, 22" Deck
(Superseded to 7300854DYP)

$45.99

$

Usually ships in 2-12 days

0

37

Murray 7300440ZMA

BAFFLE, Front, 22" WBM
(Superseded to 7300440BMYP)

$141.99

$

Usually ships in 2-12 days

0
