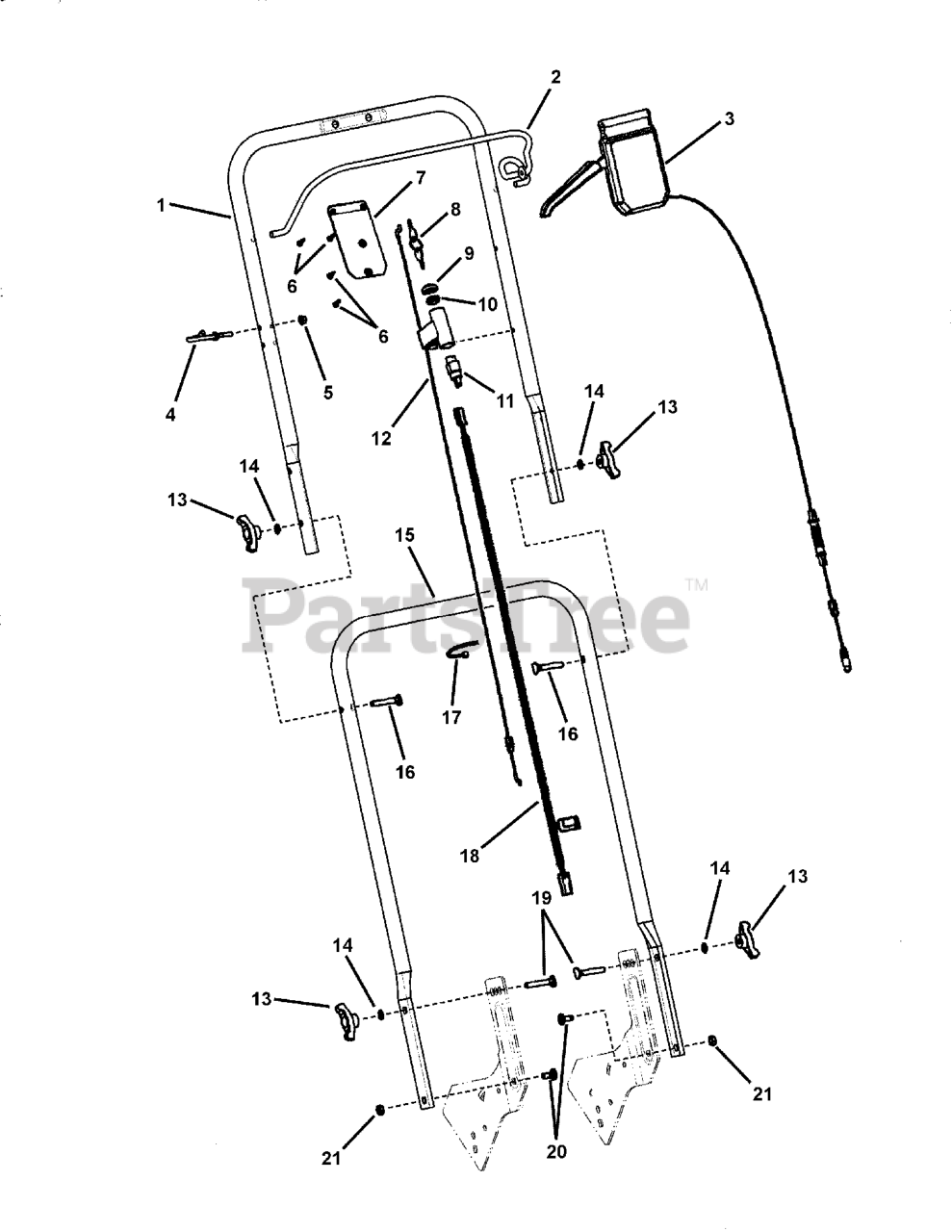

BTPV 22675 E (7800510) - Brute 22" Walk-Behind Mower (2009) Handles and Controls Parts Diagram

22" Walk-Behind Mower

Handles and Controls Parts Diagram

  • Title

1

Murray 7078247AYP

HANDLE, Upper, Flat

$151.99

$

Usually ships in 2-12 days

0

2

Murray 7101675AYP

BAIL, Operator Presence Control

$49.99

$

Usually ships in 2-12 days

0

3

Murray 7102962YP

ASSY, Control Head, VS, Brute 22"

$100.99

$

Usually ships in 2-12 days

0

4

Murray 7028488MA

GUIDE, Rope (1/4-20 thread)

$6.99

$

In Stock, only 3 left!

0

5

Murray 7076978SM

NUT,1/4-20 Hex Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

6

Murray 7100225YP

SCREW, #8-16 Recessed Pan Head (Torxplus)
(Superseded to 704209)

$3.99

$

Usually ships in 2-12 days

0

7

Murray 7300130AMA

PLATE, Control Panel

$23.99

$

Usually ships in 2-12 days

0

8

Murray 7011138YP

IGNITION KEY (Pair)

$7.99

$

In Stock, Qty 8

0

9

Murray 7100330YP

CAP, E-Start

Note: <added>

$7.49

$

Usually ships in 2-12 days

0

10

Murray 7100329YP

NUT, 5/8-32, E-Start
(Superseded to 703995)

$5.99

$

Usually ships in 2-12 days

0

11

Murray 7028765YP

IGNITION SWITCH, E/S (Start/Run)
(Superseded to 690646)

$37.99

$

In Stock, only 3 left!

0

12

Murray 7102961YP

CABLE, Bail, 22", WBM, Brute, E/S

Note: Part number is stamped on part.

$24.99

$

Usually ships in 2-12 days

0

13

Murray 071294MA

KNOB, 5/16-18 Wing Nut
(Superseded to 703065)

$7.49

$

In Stock, Qty 20+

0

14

Murray 7090391SM

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

15

Murray 7301013AYP

HANDLE, Lower Murray, MY09"

$151.99

$

Usually ships in 2-12 days

0

16

Murray 7091189YP

BOLT, 5/16-18 x 2" Curved Head Square Neck
(Superseded to 703059)

$4.49

$

In Stock, Qty 12

0

17

Murray 7024649YP

WIRE TIE,11 Inch Std Blk Nylon

$5.49

$

Usually ships in 2-12 days

0

18

Murray 7101504YP

WIRING HARNESS, RD, 21"/22" WBM

$48.99

$

Usually ships in 2-12 days

0

19

Murray 7091714YP

BOLT, 5/16-18 x 1" Round Head Square Neck
(Superseded to 5025145X8SM)

$3.99

$

In Stock, Qty 7

0

20

Murray 7091077YP

BOLT, 5/16-18 x 5/8" Round Head Square Neck, GR 5

$3.49

$

Usually ships in 2-12 days

0

21

Murray 7090951SM

NUT, 5/16-18 Hex Large Flange Center Lock
(Superseded to 704001)

$4.49

$

In Stock, only 4 left!

0
