BTPV 22675 E (7800510) - Brute 22" Walk-Behind Mower (2009) Transmission & Grass Bag Parts Diagram

22" Walk-Behind Mower

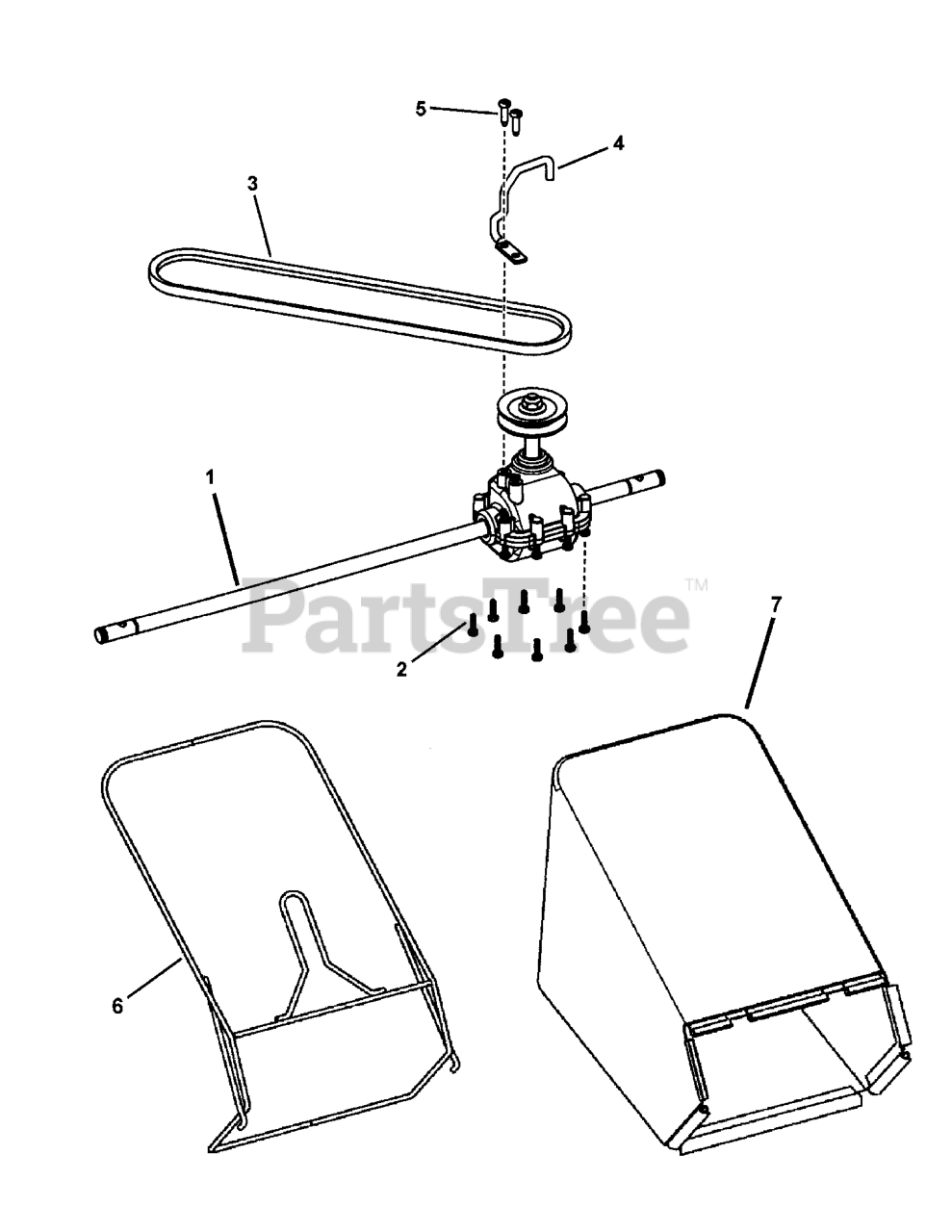

Transmission & Grass Bag Parts Diagram

  • Title

1

Murray 7100857YP

TRANSMISSION, Rocker, 22" WBM, VS

Note: (Ref. Deck Assembly Page, item 35)

$114.99

$

Usually ships in 2-12 days

0

2

Murray 7900032YP

SCREW, 7mm x 1 x .550 AB Point

$4.49

$

In Stock, only 1 left!

0

3

Murray 7100913YP

BELT, 3L, 31.94" Effective Length

Note: (Traction Drive, Pivot Handle)

$13.99

$

Usually ships in 2-12 days

0

4

Murray 7101009YP

BELT GUIDE, Transmission, 22" WBM

$13.99

$

Usually ships in 2-12 days

0

5

Murray 691138

SCREW, Pan Head Cross Recess, Tapping

$3.99

$

In Stock, Qty 17

0

6

Murray 7101230AYP

BAG FRAME, 22" WBM

$222.99

$

Usually ships in 2-12 days

0

7

Murray 7102573YP

GRASS BAG, 22" Rear Discharge

$128.99

$

Usually ships in 2-12 days

0
