BTXP 22675 HW (7800583) - Brute 22" Walk-Behind Mower (2010) Deck Group Parts Diagram

22" Walk-Behind Mower

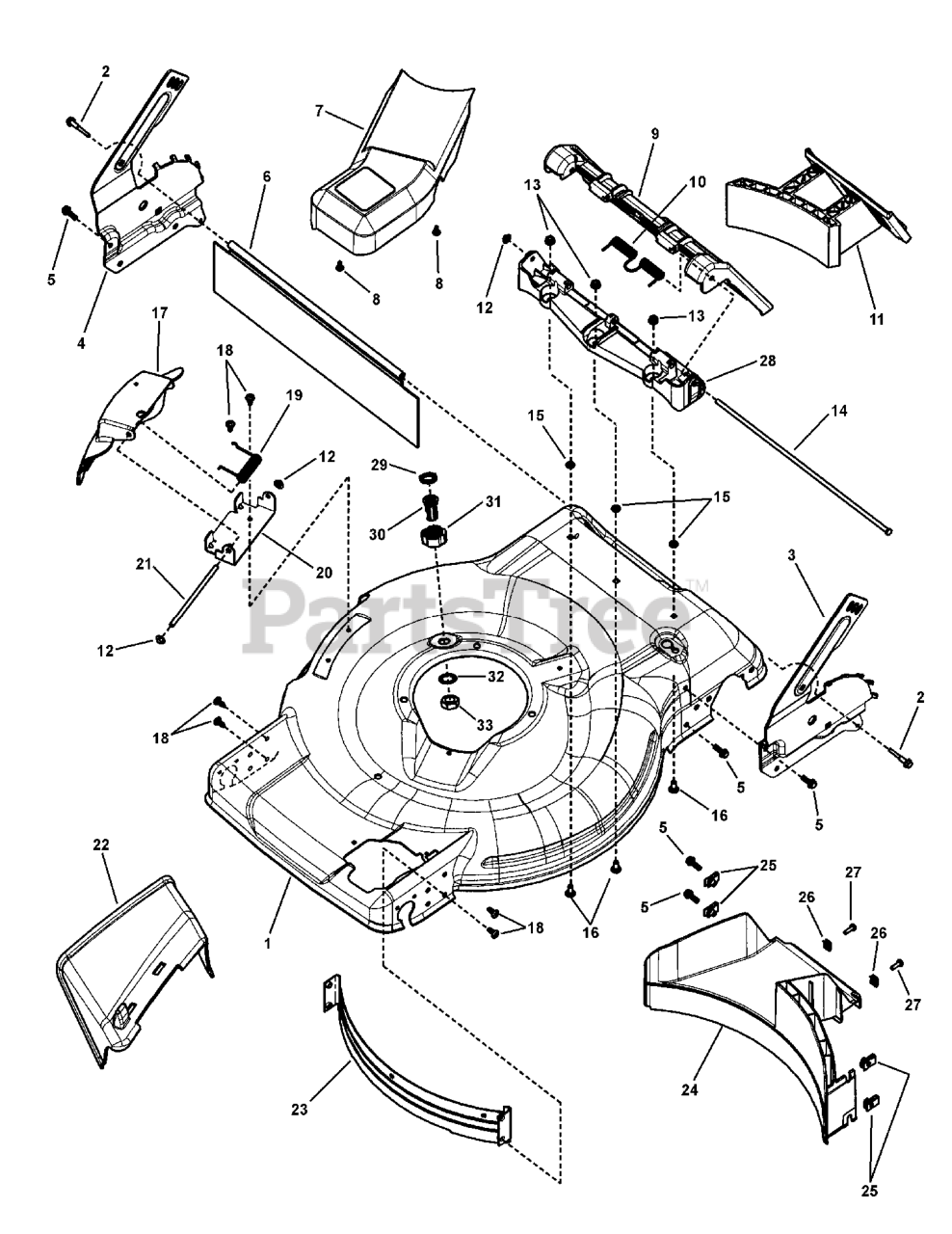

Deck Group Parts Diagram

  • Title

1

Murray 7301111ZYP

DECK, 22", Front Wheel Drive, Washout

$

$

Not available

2

Murray 7900073YP

BOLT, Drag Shield, 1/4-20 x 1-1/2"

$3.49

$

Usually ships in 2-12 days

0

3

Murray 7301091AYP

BRACKET, Lower Handle, LH, Hi-Wheel

$27.99

$

Usually ships in 2-12 days

0

4

Murray 7301090AYP

BRACKET, Lower Handle, RH, Hi-Wheel

$37.99

$

Usually ships in 2-12 days

0

5

Murray 7090699YP

BOLT, 1/4-20 x 3/4" Hex Flange Lock, GR 5

$3.99

$

Usually ships in 2-12 days

0

6

Murray 7103323YP

GUARD, Rear 22"

$9.49

$

In Stock, only 2 left!

0

7

Murray 7600108YP

ASSEMBLY, Belt Cover w/Heat Patch

$39.99

$

Usually ships in 2-12 days

0

8

Murray 7900018YP

SCREW, 4.8 x 1.59 x 13mm, Round Washer Head Hi-Lo (Torx)
(Superseded to 703834)

$4.49

$

In Stock, only 4 left!

0

9

Murray 7103291YP

DOOR, Rear Discharge
(Superseded to 7501541YP)

$45.99

$

Usually ships in 2-12 days

0

10

Murray 7103309YP

REAR DOOR SPRING, Torsion

$5.49

$

Usually ships in 2-12 days

0

11

Murray 7103453YP

PLUG, Mulching, 22" Deck

$32.99

$

In Stock, Qty 7

0

12

Murray 7091020YP

PUSHNUT, 1/4"
(Superseded to 704005)

$4.49

$

In Stock, Qty 20+

0

13

Murray 15X143MA

NUT, 1/4-20 Hex Flange Lock

$4.99

$

In Stock, only 4 left!

0

14

Murray 7103322YP

ROD, Pivot, Rear Door

$3.99

$

Usually ships in 2-12 days

0

15

Murray 1960518SM

RETAINER, 1/4" Bolt
(Superseded to 703826)

$3.49

$

In Stock, Qty 17

0

16

Murray 7090803YP

BOLT, 1/4-20 x 5/8" Flat Head Square Neck, GR 5
(Superseded to 703841)

$3.99

$

Usually ships in 2-12 days

0

17

Murray 7103298YP

COVER, Mulching

$

$

Not available

18

Murray 7900067YP

SCREW, 1/4-20 x .550 Pan Head Torx (T-30)

$4.49

$

In Stock, Qty 20+

0

19

Murray 166X38MA

CHUTE SPRING, Torsion

$4.99

$

In Stock, only 2 left!

0

20

Murray 7300855ZMA

BRACKET, Chute

$

$

Not available

21

Murray 7101067YP

ROD, Pivot

$6.99

$

Usually ships in 2-12 days

0

22

Murray 7103299YP

CHUTE, Side Discharge, 22" WBM

$35.99

$

In Stock, Qty 8

0

23

Murray 7301020ZYP

BAFFLE, Front
(Superseded to 7301020YP)

$50.99

$

Usually ships in 2-12 days

0

24

Murray 7103452YP

REAR BAFFLE, Front Wheel Drive, WBM

$51.99

$

Usually ships in 2-12 days

0

25

Murray 7023295SM

U-NUT, 1/4-20
(Superseded to 705876)

$4.49

$

In Stock, only 4 left!

0

26

Murray 1960593SM

SPEED NUT, #10-24 Retainer w/Extrusion

$4.99

$

Usually ships in 2-12 days

0

27

Murray 7091075SM

SCREW, #10-24 x 5/8" Hex Washer Face Self-Tap, GR 5

$4.49

$

In Stock, Qty 9

0

28

Murray 7103292YP

DOOR HINGE, Rear Discharge

$19.99

$

Usually ships in 2-12 days

0

29

Murray 7103957YP

WASHER, Hose

$3.99

$

Usually ships in 2-12 days

0

30

Murray 7103804YP

ADAPTOR, Washout Port, WBM

$6.49

$

Usually ships in 2-12 days

0

31

Murray 7103919YP

COUPLING, Hose

$4.49

$

Usually ships in 2-12 days

0

32

Murray 7090880YP

WASHER, 5/8" Internal Tooth Lock

$4.49

$

Usually ships in 2-12 days

0

33

Murray 1960716SM

NUT, 5/8-11 NC-2B Hex Jam

$3.49

$

Usually ships in 2-12 days

0
