BTXP 22675 HW (7800583) - Brute 22" Walk-Behind Mower (2010) Handles & Controls Parts Diagram

22" Walk-Behind Mower

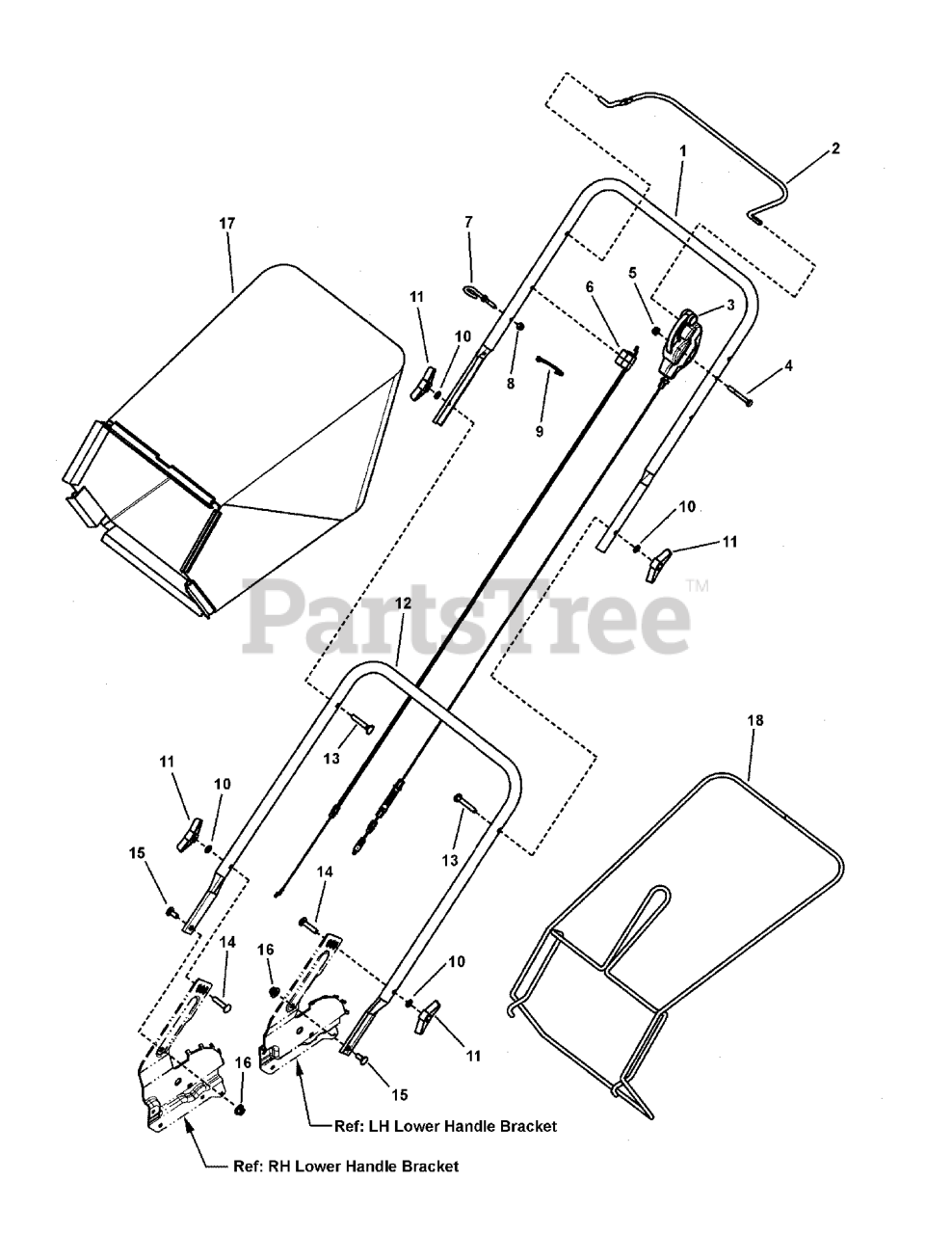

Handles & Controls Parts Diagram

  • Title

1

Murray 7103492AYP

UPPER HANDLE

$56.99

$

Usually ships in 2-12 days

0

2

Murray 7103491AYP

BAIL, OPC Propelled

$77.99

$

In Stock, only 1 left!

0

3

Murray 1101670MA

CONTROL, Drive, Single Speed

$54.99

$

Usually ships in 2-12 days

0

4

Murray 7090892YP

SCREW, 1/4-20 x 2-1/4" Hex Head Cap, GR 5
(Superseded to 1960346SM)

$4.99

$

Usually ships in 2-12 days

0

5

Murray 2860694SM

NUT, 1/4-20 Hex Flange Esna, YZ
(Superseded to 703463)

$4.49

$

In Stock, Qty 5

0

6

Murray 7103977YP

CABLE, Bail, 22" Brute WBM

$41.99

$

In Stock, only 4 left!

0

7

Murray 7028488MA

ROPE GUIDE (1/4-20 thread)

$6.49

$

In Stock, only 1 left!

0

8

Murray 7076978SM

NUT, 1/4-20 Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

9

Murray 7024649YP

WIRE TIE,11 Inch Std Black Nylon

$5.49

$

Usually ships in 2-12 days

0

10

Murray 7090391SM

WASHER, 5/16" Internal Tooth lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

11

Murray 671294MA

KNOB, 5/16-18 Wing Nut
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

12

Murray 7300592AMA

HANDLE, Lower, 21" Rear Discharge
(Superseded to 7301182AYP)

$87.99

$

In Stock, only 1 left!

0

13

Murray 7091189YP

BOLT, 5/16-18 x 2" Curved Head Square Neck, GR 2
(Superseded to 703059)

$4.49

$

In Stock, Qty 16

0

14

Murray 1931337SM

BOLT, 5/16-18 x 1-1/2" Round Head Short Square Neck Carriage, GR 5
(Superseded to 703296)

$4.49

$

In Stock, Qty 10

0

15

Murray 340720MA

BOLT, 5/16-18 x 3/4" Round Head Short Square Neck Carriage, YZ
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

16

Murray 7090951SM

NUT, 5/16-18 Large Head Center Lock
(Superseded to 704001)

$4.49

$

In Stock, Qty 19

0

--

Murray 7600107YP

ASSEMBLY, 22" Grass Catcher (incl. items 17 & 18)

$101.99

$

Usually ships in 2-12 days

0

17

Murray 7103375YP

BAG, Grass, 22" Rear Discharge

$98.99

$

In Stock, only 2 left!

0

18

Murray 7103305AYP

BAG FRAME, Rear Discharge

$170.99

$

Usually ships in 2-12 days

0
