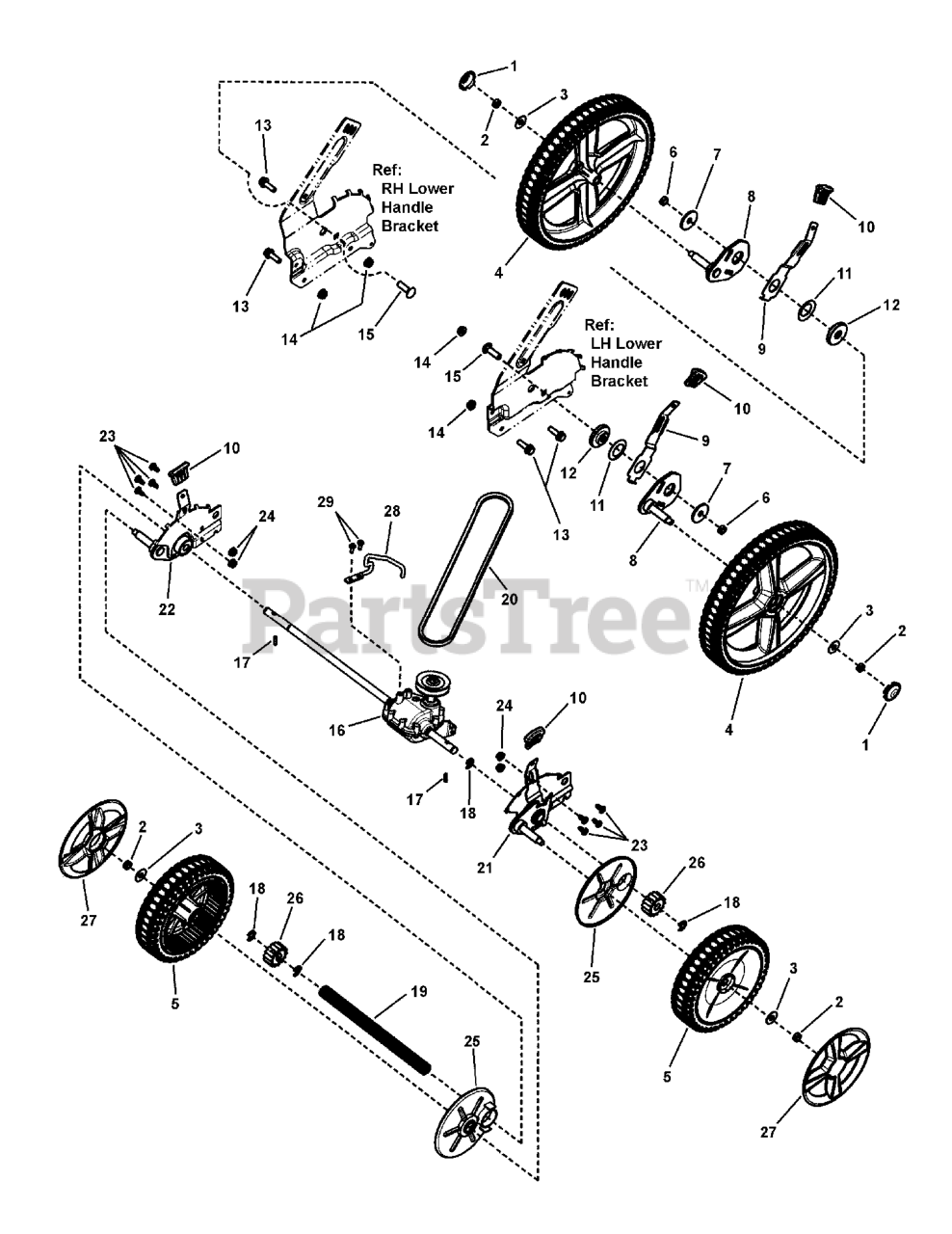

BTXP 22675 HW (7800802) - Brute 22" Walk-Behind Mower (2011) Transmission & Wheels Group Parts Diagram

22" Walk-Behind Mower

Transmission & Wheels Group Parts Diagram

  • Title

1

Murray 7103540YP

HUBCAP, 12" Rim Yellow

$4.49

$

Usually ships in 2-12 days

0

2

Murray 7091585SM

NUT, Hex Center Lock, 3/8-16, GR 5
(Superseded to 703347)

$4.99

$

In Stock, Qty 9

0

3

Murray 17X169MA

WASHER, 1" OD x .387 ID Flat
(Superseded to 703966)

$4.49

$

In Stock, Qty 6

0

4

Murray 7101708MA

WHEEL,12" x 2" Idle, w/Db Tread, Brute Yellow
(Superseded to 7105711YP)

$55.99

$

In Stock, Qty 9

0

5

Murray 7103500YP

WHEEL, 8" x 2" Drive, w/DB Tread P-290 Satin Black

$34.99

$

In Stock, Qty 8

0

6

Murray 7091585SM

NUT, 3/8-16 Hex Center Lock, YZ
(Superseded to 703347)

$4.99

$

In Stock, Qty 9

0

7

Murray 7091331SM

WASHER, 13/32 x 1-1/2" x .120 Flat, YZ
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

8

Murray 7501639YP

ASSEMBLY, Wheel Bracket, Rear, High-Wheel (staked)

$

$

Not available

9

Murray 7103301YP

LEVER, Front, Height-Of-Cut, 22"
(Superseded to 7105156YP)

$29.99

$

Usually ships in 2-12 days

0

10

Murray 7103542YP

GRIP, Height Latch, P-391-St, Yellow

$4.49

$

Usually ships in 2-12 days

0

11

Murray 17X178MA

WASHER, 1" ID x 1.64 OD Bellville

$4.99

$

Usually ships in 2-12 days

0

12

Murray 7103511YP

BUSHING, Pivot, Hi-Wheel, Rear

$5.49

$

Usually ships in 2-12 days

0

13

Murray 7091591SM

BOLT, 5/16-18 x 1" Hex Flange Lock, GR 5, YZ
(Superseded to 703410)

$4.49

$

In Stock, only 2 left!

0

14

Murray 7091601SM

NUT, 5/16-18 Hex Flange Lock, GR 5, YZ
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

15

Murray 7091790YP

BOLT, 3/8-16 x 1-1/4" Round Head Square Neck Carriage, GR 5 YZ
(Superseded to 703130)

$4.49

$

In Stock, Qty 13

0

16

Murray 7103311YP

TRANSMISSION, Variable Speed, Front Wheel Drive

$122.99

$

In Stock, only 2 left!

0

17

Murray 7101270YP

PIN, Drive, 22" WBM, Front Wheel Drive

$5.49

$

Usually ships in 2-12 days

0

18

Murray 7014341YP

RETAINING RING
(Superseded to 703976)

$4.49

$

In Stock, Qty 20+

0

19

Murray 043649MA

SHIELD, Axle

$5.99

$

Usually ships in 2-12 days

0

20

Murray 7103362YP

BELT, 3L, Traction Drive, 22" Walk Behind Mower, FWD

Note: (3L section; 32.40 effective length)

$22.99

$

In Stock, only 3 left!

0

21

Murray 7600105YP

ASSEMBLY, Height-Of-Cut, LF, 22" WBM, Propelled

Note: (Includes Ref. No. 30)

$87.99

$

Usually ships in 2-12 days

0

22

Murray 7600104YP

ASSEMBLY, Height-Of-Cut, RF, 22" WBM, Propelled

Note: (Includes Ref. No. 30)

$

$

Not available

23

Murray 7900067YP

SCREW, 1/4-20 x .550 Pan Head Torx (T-30)

$4.49

$

In Stock, Qty 18

0

24

Murray 7091584SM

NUT, 1/4-20 Hex Flange Lock, YZ
(Superseded to 703233)

$4.49

$

In Stock, Qty 10

0

25

Murray 7101402YP

SHIELD, Dust, 22" WBM, Front Wheel Drive

$7.99

$

In Stock, only 2 left!

0

26

Murray 7101207YP

GEAR, Pinion, 22" WBM, Front Wheel Drive

$8.99

$

In Stock, only 3 left!

0

27

Murray 7103539YP

HUBCAP, 8"& 9" Wheel Spoked, P-391 St Yellow

$10.99

$

Usually ships in 2-12 days

0

28

Murray 7103304YP

BELT GUIDE, Front Wheel Drive

$30.99

$

Usually ships in 2-12 days

0

29

Murray 7900055YP

SCREW, #10-14 x 1/2" Hex Washer Self-Tap, Plastite

$4.49

$

In Stock, only 1 left!

0

30

Murray 7078243YP

BEARING, Ball

Note: (Included in Ref. No. 21 & Ref. No. 22)(Not Illustrated)

$10.99

$

In Stock, Qty 7

0
