BTXPV 22700 E (7800662) - Brute 22" Walk-Behind Mower (2010) Front & Rear Wheels Group Parts Diagram

22" Walk-Behind Mower

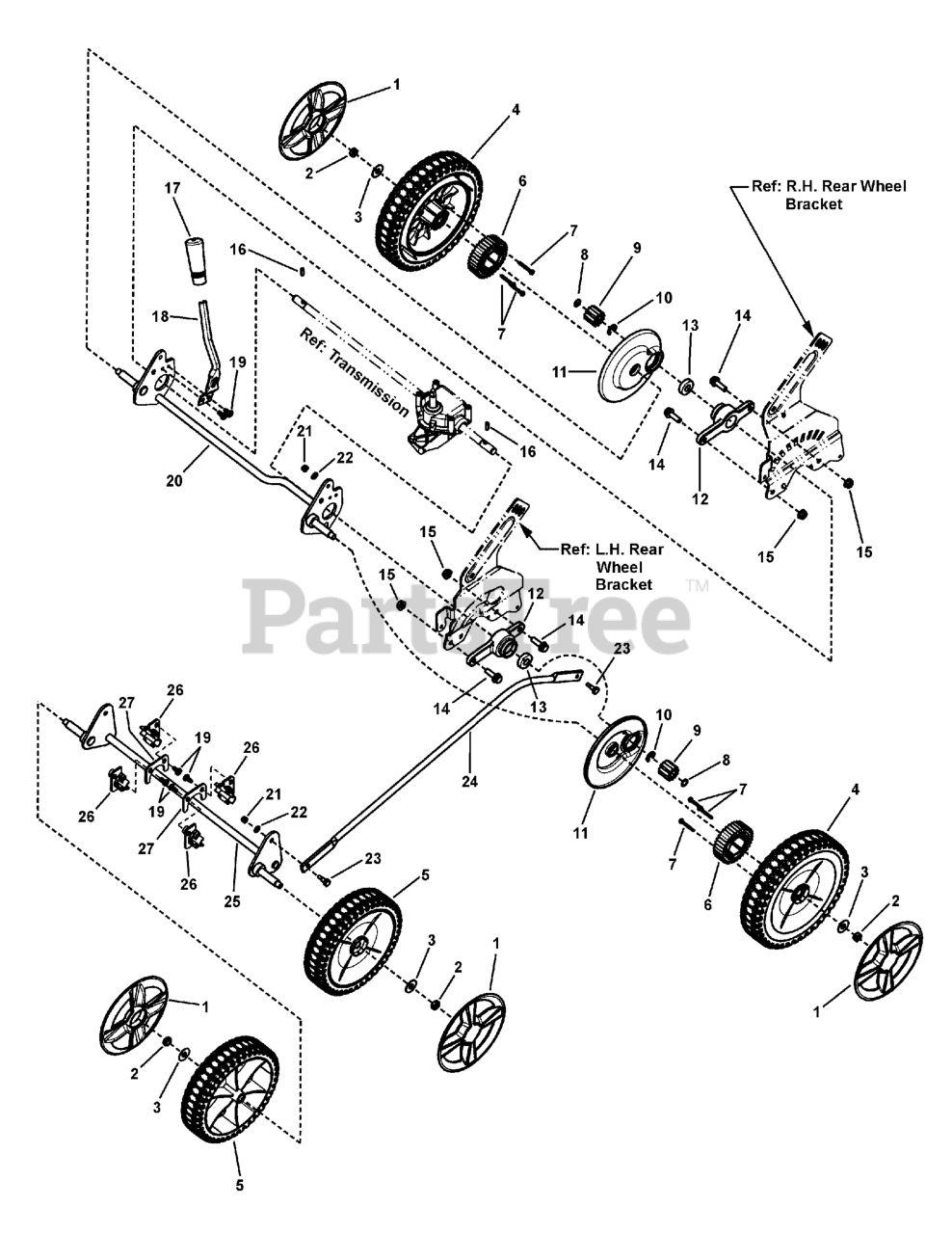

Front & Rear Wheels Group Parts Diagram

  • Title

1

Murray 7103539YP

HUBCAP, 8"& 9" Wheel Spoked, P-391 St Yellow

$10.99

$

Usually ships in 2-12 days

0

2

Murray 1960251SM

NUT, 3/8-16 Hex Center Lock Jam YZ
(Superseded to 703230)

$4.99

$

In Stock, only 2 left!

0

3

Murray 17X169MA

WASHER, 1" O.D. x .387 I.D. Flat
(Superseded to 703966)

$4.49

$

In Stock, only 2 left!

0

4

Murray 7501793YP

Wheel, 9" x 2"

Note: (Includes two ball bearings)

$49.99

$

In Stock, Qty 8

0

5

Murray 7103541YP

WHEEL, 8" x 2" Idle w/Db Trd, Brute, Satin Black

$40.99

$

Usually ships in 2-12 days

0

6

Murray 7100914YP

GEAR, External Wheel

$10.99

$

In Stock, only 2 left!

0

7

Murray 7091196SM

SCREW, #8 x 1-1/4" Hi-Lo Hex washer Self-Tap

$4.99

$

Usually ships in 2-12 days

0

8

Murray 7027999YP

RETAINING RING

Note: (Waldes Truarc #5100-50 or equiv.)

$4.49

$

In Stock, Qty 7

0

9

Murray 7100820YP

GEAR, Pinion

$6.49

$

Usually ships in 2-12 days

0

10

Murray 7014341YP

RING, External Retaining
(Superseded to 703976)

$4.49

$

In Stock, Qty 20+

0

11

Murray 7101367YP

DUST SHIELD, 21" WBM, RD

$7.49

$

In Stock, only 2 left!

0

12

Murray 7103290YP

HOLDER, Bearing, RWD

$13.99

$

Usually ships in 2-12 days

0

13

Murray 7078243YP

BEARING, Ball

$10.99

$

In Stock, Qty 6

0

14

Murray 7091591SM

BOLT, 5/16-18 x 1" Hex Flange Lock, GR 5, YZ
(Superseded to 703410)

$4.49

$

In Stock, only 2 left!

0

15

Murray 7091601SM

NUT, 5/16-18 Hex Flange Lock, YZ
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

16

Murray 7100861YP

PIN, Axle

$4.99

$

In Stock, only 1 left!

0

17

Murray 671297MA

GRIP, Height-Of-Cut

$6.49

$

In Stock, only 1 left!

0

18

Murray 7103289YP

LEVER, Spring, Height-Of-Cut

$11.99

$

In Stock, Qty 5

0

19

Murray 7900067YP

SCREW, 1/4-20 x .550 Pan Head Torx (T-30)

$4.49

$

In Stock, Qty 20+

0

20

Murray 7400259YP

WELDMENT, Rear Crossbar, RWD

$152.99

$

In Stock, only 1 left!

0

21

Murray 7091290SM

NUT, #10-24 Hex Lock (Nyloc)
(Superseded to 703412)

$4.49

$

In Stock, Qty 10

0

22

Murray 7091552SM

WASHER, .219 x 1/2" x .049 Flat

$3.99

$

In Stock, only 4 left!

0

23

Murray 7101774YP

SHOULDER BOLT, #10-24

$8.49

$

In Stock, only 4 left!

0

24

Murray 7103306ZYP

ROD, Lifter Link, WBM
(Superseded to 7103306BMYP)

$40.99

$

Usually ships in 2-12 days

0

25

Murray 7400274YP

WELDMENT, Front Crossbar
(Superseded to 7400306YP)

$60.99

$

In Stock, only 3 left!

0

26

Murray 7103314YP

BUSHING, Bearing, RWD

$5.49

$

In Stock, Qty 12

0

27

Murray 7301154YP

PLATE, SUPPORT, FRONT BUSHING

$11.99

$

In Stock, Qty 5

0
