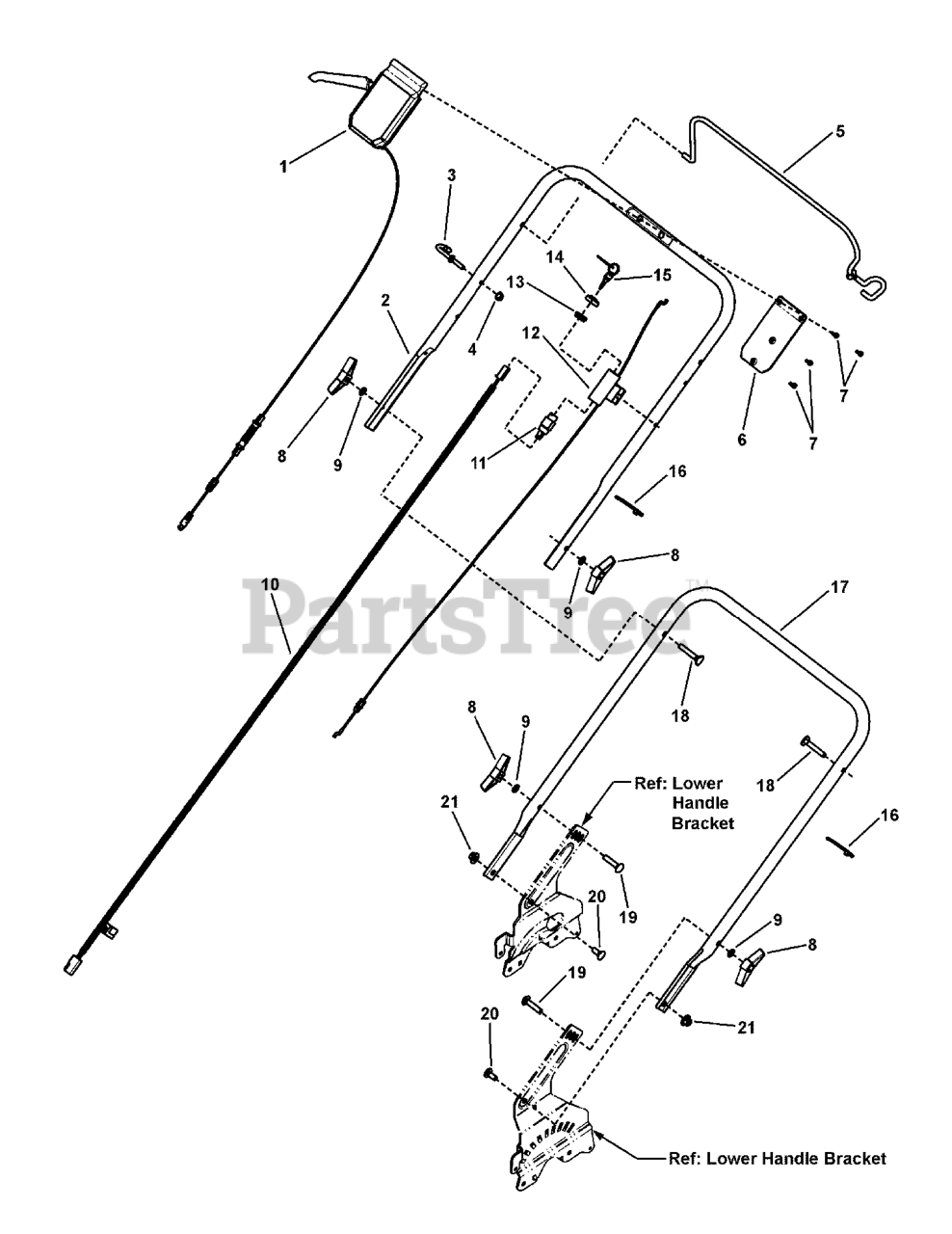

BTXPV 22700 E (7800662) - Brute 22" Walk-Behind Mower (2010) Handles & Controls Group Parts Diagram

22" Walk-Behind Mower

Handles & Controls Group Parts Diagram

  • Title

1

Murray 7103890YP

ASSY, Control Box, VS, RWD

$

$

Not available

2

Murray 7300676AMA

HANDLE, Upper, Brute, Propelled

$

$

Not available

3

Murray 7028488MA

GUIDE, Rope (1/4-20 thread)

$6.99

$

In Stock, only 3 left!

0

4

Murray 2860694SM

NUT, 1/4-20 Hex Flange Lock (Esna)
(Superseded to 5025391FS)

$4.49

$

In Stock, Qty 20+

0

5

Murray 7101731AMA

BAIL, Brute SP, Operator Presence Control
(Superseded to 7101731BMYP)

$73.99

$

Usually ships in 2-12 days

0

6

Murray 7300130AMA

PLATE, Control Panel

$23.99

$

Usually ships in 2-12 days

0

7

Murray 7100225YP

SCREW, #8-16 Recessed Pan Head (Torxplus)
(Superseded to 704209)

$3.99

$

In Stock, only 2 left!

0

8

Murray 671294MA

KNOB, 5/16-18 Wing Nut
(Superseded to 703065)

$7.49

$

In Stock, Qty 20+

0

9

Murray 7090391SM

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

10

Murray 7103676YP

WIRING HARNESS, El Start, WBM

$29.99

$

Usually ships in 2-12 days

0

11

Murray 7028765YP

IGNITION SWITCH, E/S (Start/Run)
(Superseded to 690646)

$37.99

$

In Stock, only 3 left!

0

12

Murray 7103973YP

CABLE, Bail, 21", WBM, Brute, E/S

Note: (Part number is stamped on part)

$35.99

$

In Stock, only 2 left!

0

13

Murray 7100329YP

NUT, 5/8-32, E-Start
(Superseded to 703995)

$5.99

$

Usually ships in 2-12 days

0

14

Murray 7100330YP

CAP, E-Start

$7.49

$

Usually ships in 2-12 days

0

15

Murray 7011138YP

IGNITION KEY (Pair)

$7.99

$

In Stock, Qty 6

0

16

Murray 7024649YP

WIRE TIE,11 Inch Std Blk Nylon

$5.49

$

Usually ships in 2-12 days

0

17

Murray 7300592YP

HANDLE, Lower 21" RD

$

$

Currently unavailable

18

Murray 7091189YP

BOLT, 5/16-18 x 2" Curved Head Square Neck
(Superseded to 703059)

$4.49

$

In Stock, Qty 20+

0

19

Murray 1931337SM

BOLT, 5/16-18 x 1-1/2" Round Head Short Square Neck, GR 5
(Superseded to 703296)

$4.49

$

In Stock, only 2 left!

0

20

Murray 1931333SM

BOLT, 5/16-18 x 3/4" Round Head Short Square Neck, GR 5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

21

Murray 7090951SM

NUT, 5/16-18 Hex Large Flange Center Lock
(Superseded to 704001)

$4.49

$

In Stock, only 2 left!

0
