BV 2000 LE - Poulan Blower, Type 4 (2006-12) Housing - Type 4 Parts Diagram

Blower, Type 4

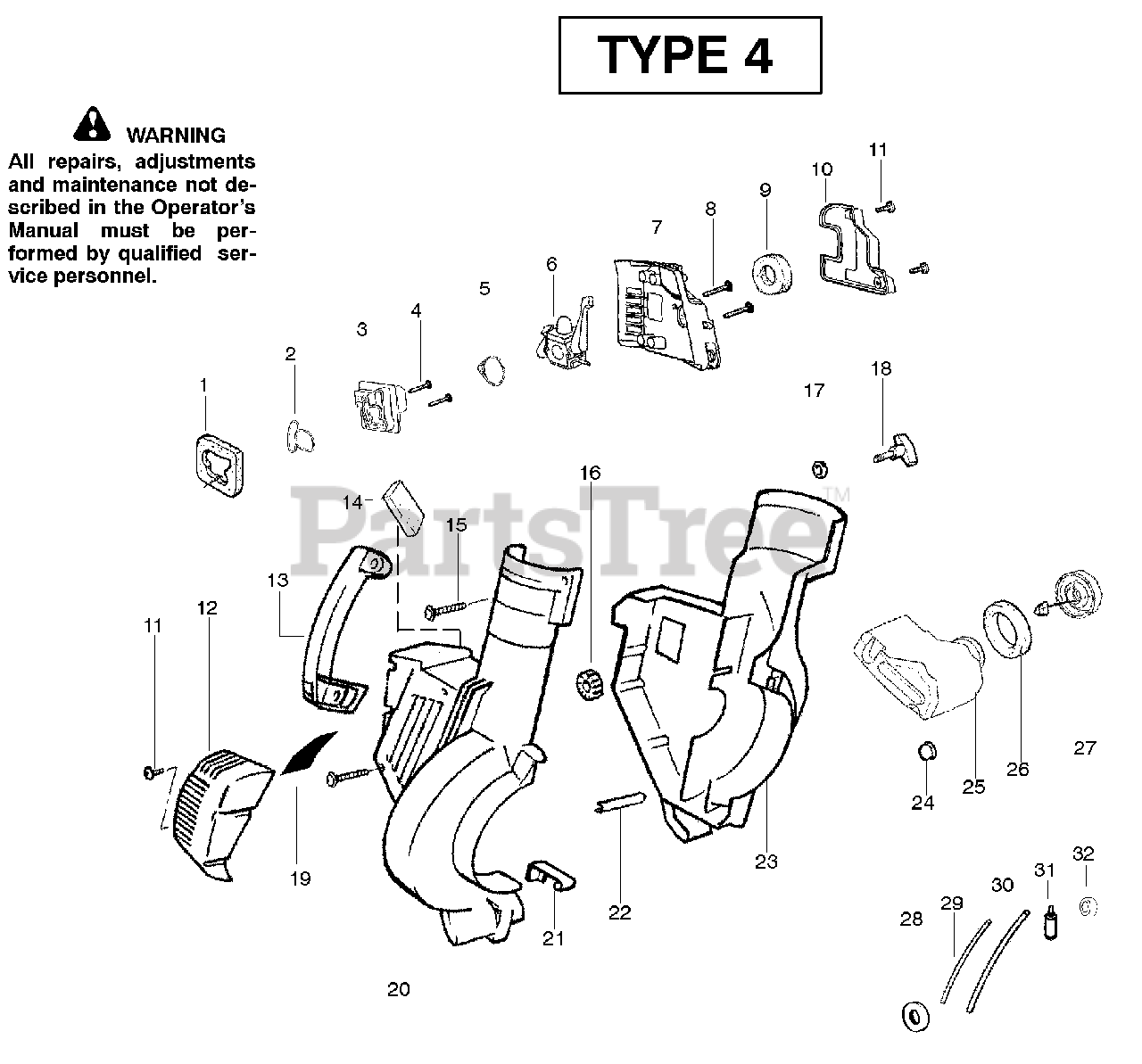

Housing - Type 4 Parts Diagram

  • Title

1

Electrolux/AYP 530071459

Air Dam (kit)

$

$

Not available

2

Electrolux/AYP 530071458

Gasket-Adapter (kit)

$

$

Not available

3

Electrolux/AYP 530035561

Carburetor Adaptor

$

$

Not available

4

Electrolux/AYP 530016441

Screw

$3.49

$

In Stock, only 1 left!

0

5

Electrolux/AYP 530071458

Gasket-Carburetor (kit)

$

$

Not available

6

Electrolux/AYP 530071465

Kit-Carb Ass'y. (C1Q-W11)

$69.99

$

In Stock, only 2 left!

0

6

Electrolux/AYP 530071632

Kit-Carb Ass'y. (C1Q-W11C)
(Superseded to 530071775)

$69.99

$

In Stock, only 2 left!

0

7

Electrolux/AYP 530056629

Air Box

$

$

Not available

8

Electrolux/AYP 530015849

Screw-Carb.

$3.49

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 530049383

Filter-Air

$

$

Not available

10

Electrolux/AYP 530056581

Cover-Air Filter

$

$

Not available

11

Electrolux/AYP 530016349

Screw

$3.99

$

In Stock, only 1 left!

0

12

Electrolux/AYP 545085001

Guard-Muffler

$31.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 530095469

Handle

$

$

Not available

14

Electrolux/AYP 530071459

Foam - 71.12mm (kit)

$

$

Not available

15

Electrolux/AYP 530015886

Screw

$3.49

$

In Stock, Qty 13

0

16

Electrolux/AYP 530049323

Isolator

$

$

Not available

17

Electrolux/AYP 530015197

Nut

$2.49

$

In Stock, only 3 left!

0

18

Electrolux/AYP 530016322

Knob-Tube Clamp

$3.99

$

In Stock, only 3 left!

0

19

Electrolux/AYP 530071458

Reflector-Heat (kit)

$

$

Not available

20

Electrolux/AYP 545018207

Assy-Housing-Right

Note: (Incl. 21)

$

$

Not available

21

Electrolux/AYP 530402044

Spring-Cover Latch

$

$

Not available

22

Electrolux/AYP 530049617

Guide-Starter Rope

$

$

Not available

23

Electrolux/AYP 545018108

Housing-Left

$

$

Not available

24

Electrolux/AYP 530036792

Isolator-Crankcase

$

$

Not available

25

Electrolux/AYP 545058007

Assy-Fuel Tank

$

$

Not available

26

Electrolux/AYP 530049527

Gasket-Fuel Tank

$

$

Not available

27

Electrolux/AYP 530049386

Fuel Cap w/Retainer
(Superseded to 530057973)

$

$

Not available

28

Electrolux/AYP 530049656

Grommet-Shroud

$

$

Not available

29

Electrolux/AYP 530069247

Kit-Line Carb/Purge

$8.49

$

In Stock, Qty 20+

0

30

Electrolux/AYP 530069216

Kit-Line Tank/Purge

$11.99

$

In Stock, Qty 20+

0

31

Electrolux/AYP 530095646

Assy-Fuel Pick-up

$7.49

$

In Stock, Qty 20+

0

32

Electrolux/AYP 530071459

Grommet-Fuel line (kit)

$

$

Not available

32

Electrolux/AYP 545137217

Operator Manual

Note: Not Shown

$

$

Not available

32

Electrolux/AYP 530057414

Warning Decal

Note: Not Shown

$

$

Not available

32

Electrolux/AYP 545003024

Decal-Inst./Warning

Note: Not Shown

$

$

Not available
