BV 2126 - Jonsered Blower/Vacuum (2008-03) ENGINE Parts Diagram

Blower/Vacuum

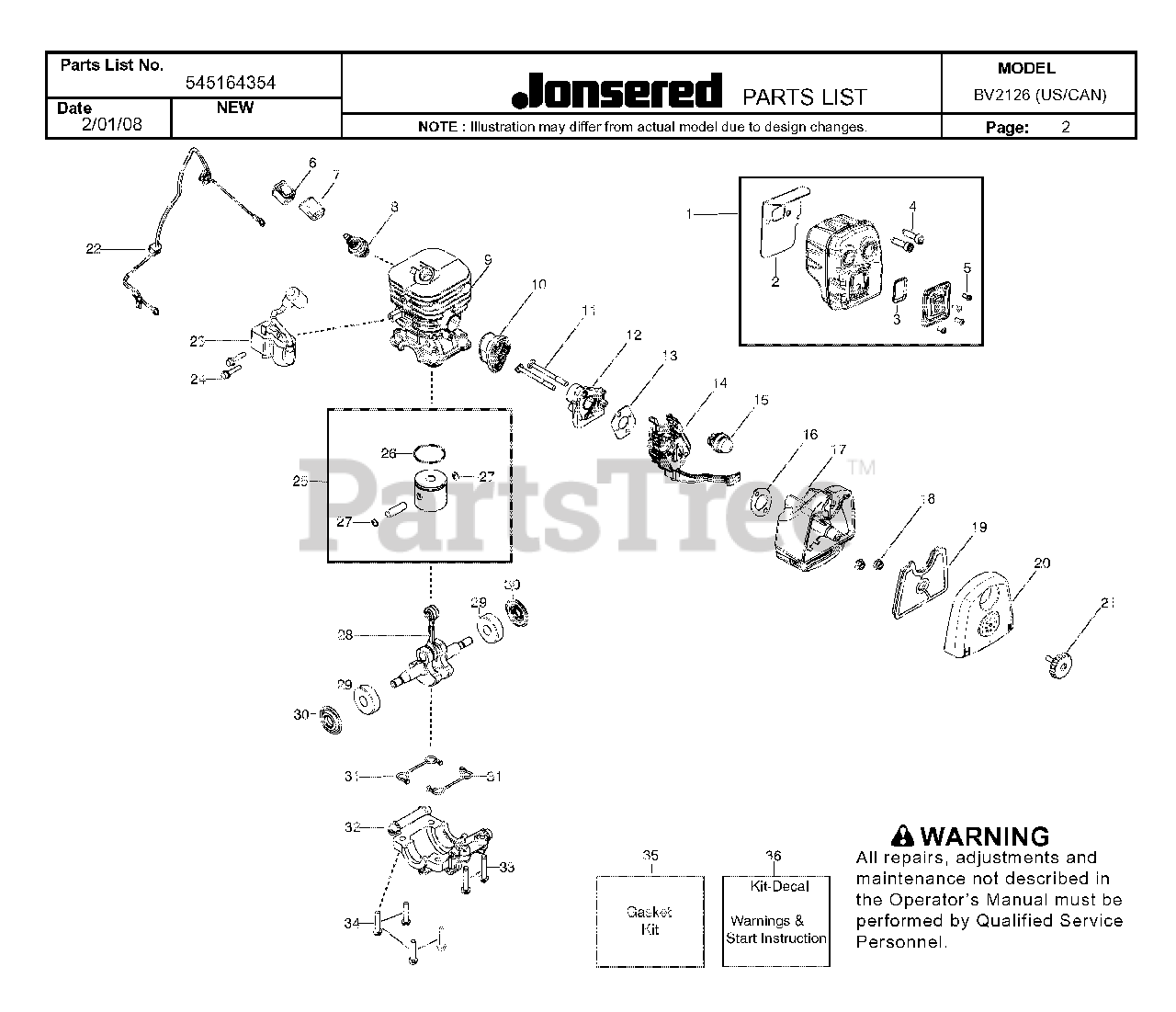

ENGINE Parts Diagram

  • Title

1

Jonsered 545111901

ASSY, MUFFLER
(Superseded to 580502701)

$31.99

$

In Stock, Qty 9

0

2

Jonsered 545081813

GASKET

$24.99

$

In Stock, Qty 5

0

3

Jonsered 545081810

KIT, SPARK SCREEN

$10.99

$

In Stock, only 1 left!

0

4

Jonsered 530058982

BOLT MUFFLER

$4.99

$

In Stock, Qty 12

0

5

Jonsered 530015241

SCREW-6-19X5/16PLAST PA

$3.99

$

Usually ships in 3-10 days

0

6

Jonsered 545049301

KIT SWITCH

$9.99

$

In Stock, Qty 18

0

7

Jonsered 545128201

PROTECTOR, SWITCH

$4.99

$

Usually ships in 3-10 days

0

8

Jonsered 952030249

PLUG-SPARK (RCJ-6Y)

$4.99

$

In Stock, Qty 20+

0

9

Jonsered 545132601

CYLINDER -CHROME
(Superseded to 587597301)

$48.99

$

Usually ships in 3-10 days

0

10

Jonsered 545132501

BOOT, CARB

$17.99

$

In Stock, only 4 left!

0

11

Jonsered 530016187

SCREW

$6.49

$

In Stock, only 4 left!

0

12

Jonsered 545133301

PLATE, CARB

$8.99

$

Usually ships in 3-10 days

0

13

Jonsered 545081813

GASKET

$24.99

$

In Stock, Qty 5

0

14

Jonsered 545081811

KIT, CARB

$40.99

$

Usually ships in 3-10 days

0

15

Jonsered 530047721

AIR PURGE

$6.49

$

In Stock, Qty 20+

0

16

Jonsered 545081813

GASKET

$24.99

$

In Stock, Qty 5

0

17

Jonsered 545109802

BASE - AIR BOX

$17.99

$

In Stock, only 2 left!

0

18

Jonsered 530016101

NUT

$6.49

$

In Stock, Qty 8

0

19

Jonsered 545112101

FILTER, AIR

$4.99

$

Usually ships in 3-10 days

0

20

Jonsered 545109602

COVER - AIR BOX
(Superseded to 545176802)

$17.99

$

In Stock, Qty 8

0

21

Jonsered 545072201

ASSY - AIR BOX KNOB

$6.49

$

In Stock, Qty 5

0

22

Jonsered 545108202

ASSY, LEADWIRE
(Superseded to 545108201)

$10.99

$

In Stock, only 1 left!

0

23

Jonsered 545108101

IGNITION MODULE

$42.99

$

Usually ships in 3-10 days

0

24

Jonsered 530016456

SCREW M4 X .70 TT 16MM

$6.49

$

In Stock, only 2 left!

0

25

Jonsered 545081814

KIT - PISTON

$44.99

$

In Stock, only 1 left!

0

26

Jonsered 530019283

RING PISTON
(Superseded to 575227901)

$7.49

$

In Stock, Qty 17

0

27

Jonsered 530015162

WRIST PIN RET.

$6.49

$

Usually ships in 3-10 days

0

28

Jonsered 545081816

KIT, CRANKSHAFT

$

$

Not available

29

Jonsered 545013401

BEARING RADIAL BALL (6201)

$10.99

$

In Stock, Qty 5

0

30

Jonsered 545081815

CRANKSHAFT SEAL

$10.99

$

In Stock, only 3 left!

0

31

Jonsered 545081813

GASKET

$24.99

$

In Stock, Qty 5

0

32

Jonsered 545068301

CAP - BEARING
(Superseded to 577929601)

$8.99

$

Usually ships in 3-10 days

0

33

Jonsered 530015940

SCREW

$6.49

$

In Stock, Qty 9

0

34

Jonsered 530015897

B0LT, C/SHAFT 36/41

$6.49

$

In Stock, Qty 19

0

35

Jonsered 545081813

GASKET

$24.99

$

In Stock, Qty 5

0

36

Jonsered 545081860

KIT DECAL

$

$

Not available
