BV 2126 - Jonsered Blower/Vacuum (2010-06) HOUSING Parts Diagram

Blower/Vacuum

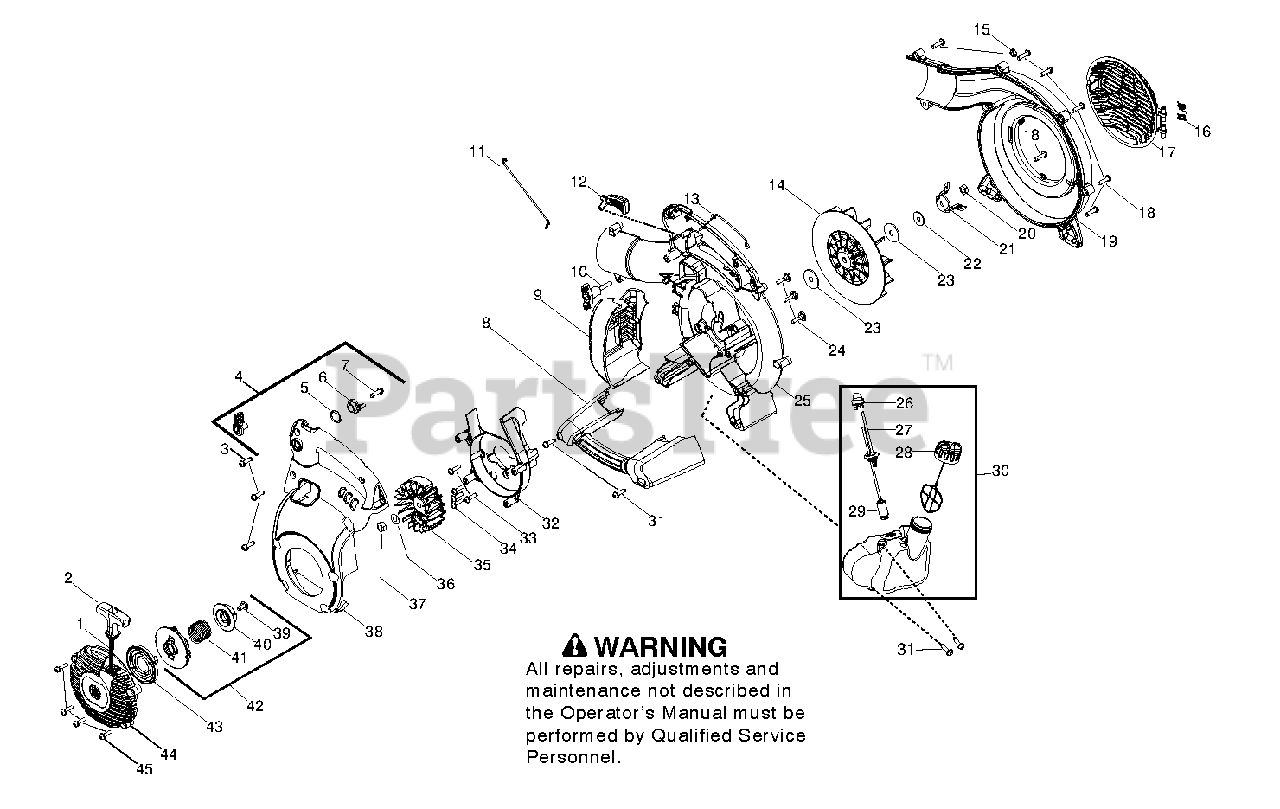

HOUSING Parts Diagram

  • Title

1

Jonsered 545081817

KIT ROPE

$8.99

$

In Stock, Qty 8

0

2

Jonsered 545043205

HANDLE - STARTER

$9.99

$

Usually ships in 3-10 days

0

3

Jonsered 530015814

SCREW

$6.49

$

In Stock, Qty 20+

0

4

Jonsered 545008020

KIT - CRUIS CONTROL (5,6,7)

Note: . 5 6 7

$8.99

$

In Stock, only 1 left!

0

5

Jonsered 530015147

No Description Available

$4.99

$

In Stock, only 1 left!

0

6

Jonsered 545111501

RATCHET CRUISE CONTROL

$7.49

$

Usually ships in 3-10 days

0

7

Jonsered 530015814

SCREW

$6.49

$

In Stock, Qty 20+

0

8

Jonsered 545119003

HANDLE - ASSIST

$12.99

$

Usually ships in 3-10 days

0

9

Jonsered 545157902

ASSY - MUFFLER GUARD

$12.99

$

Usually ships in 3-10 days

0

10

Jonsered 545108702

ASSY - TUBE CLAMP

$3.99

$

Usually ships in 3-10 days

0

11

Jonsered 545111301

WIRE LINKAGE

$4.99

$

In Stock, only 1 left!

0

12

Jonsered 545111602

TRIGGER - THROTTLE

$8.99

$

In Stock, only 1 left!

0

13

Jonsered 545131701

WIRE, HANDLE GROUND

$3.99

$

Usually ships in 3-10 days

0

14

Jonsered 545173201

IMPELLER

$

$

Not available

15

Jonsered 530015197

NUT

$6.49

$

In Stock, Qty 5

0

16

Jonsered 545111101

SPRING, VAC DOOR

$4.99

$

Usually ships in 3-10 days

0

17

Jonsered 545111203

No Description Available

$6.91

$

Usually ships in 3-10 days

0

18

Jonsered 530015814

SCREW

$6.49

$

In Stock, Qty 20+

0

19

Jonsered 575533204

No Description Available

Note: . 16 17

$

$

Not available

20

Jonsered 545147101

NUT, IMPELLER

$6.49

$

In Stock, Qty 8

0

21

Jonsered 545202801

MULCH BLADE

Note: 2008-292N AND LOWER SEE SERVICE REFERENCE

$3.99

$

In Stock, Qty 6

0

22

Jonsered 530015127

WASHER-FLYWHEEL

Note: 2008-292N AND LOWER SEE SERVICE REFERENCE

$6.49

$

Usually ships in 3-10 days

0

23

Jonsered 545164501

WASHER IMPELLER

$4.99

$

In Stock, Qty 8

0

24

Jonsered 530016445

SCREW FUEL TANK RETAINER

$6.49

$

In Stock, Qty 6

0

25

Jonsered 545110004

No Description Available

$

$

Not available

26

Jonsered 530047721

AIR PURGE

$6.49

$

In Stock, Qty 20+

0

27

Jonsered 545081841

KIT FUEL LINE GROMMET
(Superseded to 581798001)

Note: . 26 29

$9.99

$

In Stock, Qty 11

0

28

Jonsered 545073101

ASSY - FUEL CAP W/RETAINER

$18.99

$

Usually ships in 3-10 days

0

29

Jonsered 530095646

FUEL PICK-UP ASSY

$4.99

$

In Stock, Qty 20+

0

30

Jonsered 545108902

ASSY - FUEL TANK 26,27,28,29
(Superseded to 581337206)

Note: . 26 27 28 29

$34.99

$

Usually ships in 3-10 days

0

31

Jonsered 530015814

SCREW

$6.49

$

In Stock, Qty 20+

0

32

Jonsered 545132801

SCROLL, FLYWHEEL

Note: 2008-233N AND LOWER SEE SERVICE REFERENCE

$15.99

$

In Stock, only 1 left!

0

33

Jonsered 530015814

SCREW

$6.49

$

In Stock, Qty 20+

0

34

Jonsered 530015810

SCREW - SHROUD
(Superseded to 530016386)

$10.99

$

In Stock, Qty 9

0

35

Jonsered 545088801

ASSY, FLYWHEEL
(Superseded to 576423301)

$24.99

$

In Stock, only 3 left!

0

36

Jonsered 530015828

WASHER FLAT

$4.99

$

In Stock, only 1 left!

0

37

Jonsered 530016134

NUT-FLYWHEEL

$6.49

$

Usually ships in 3-10 days

0

38

Jonsered 545108804

No Description Available

$17.30

$

Usually ships in 3-10 days

0

39

Jonsered 545112801

SCREW

$4.99

$

In Stock, only 2 left!

0

40

Jonsered 545089001

No Description Available

$8.99

$

Usually ships in 3-10 days

0

41

Jonsered 545115901

SPRING EPS2

$8.99

$

Usually ships in 3-10 days

0

42

Jonsered 545006084

KIT - STARTER

Note: . 39 40 41

$24.99

$

In Stock, Qty 15

0

43

Jonsered 530042095

SPRING STARTER
(Superseded to 545008013)

$6.49

$

In Stock, Qty 5

0

44

Jonsered 545111802

HOUSING - STARTER COVER

$17.99

$

In Stock, Qty 7

0

45

Jonsered 530015810

SCREW - SHROUD
(Superseded to 530016386)

$10.99

$

In Stock, Qty 9

0
