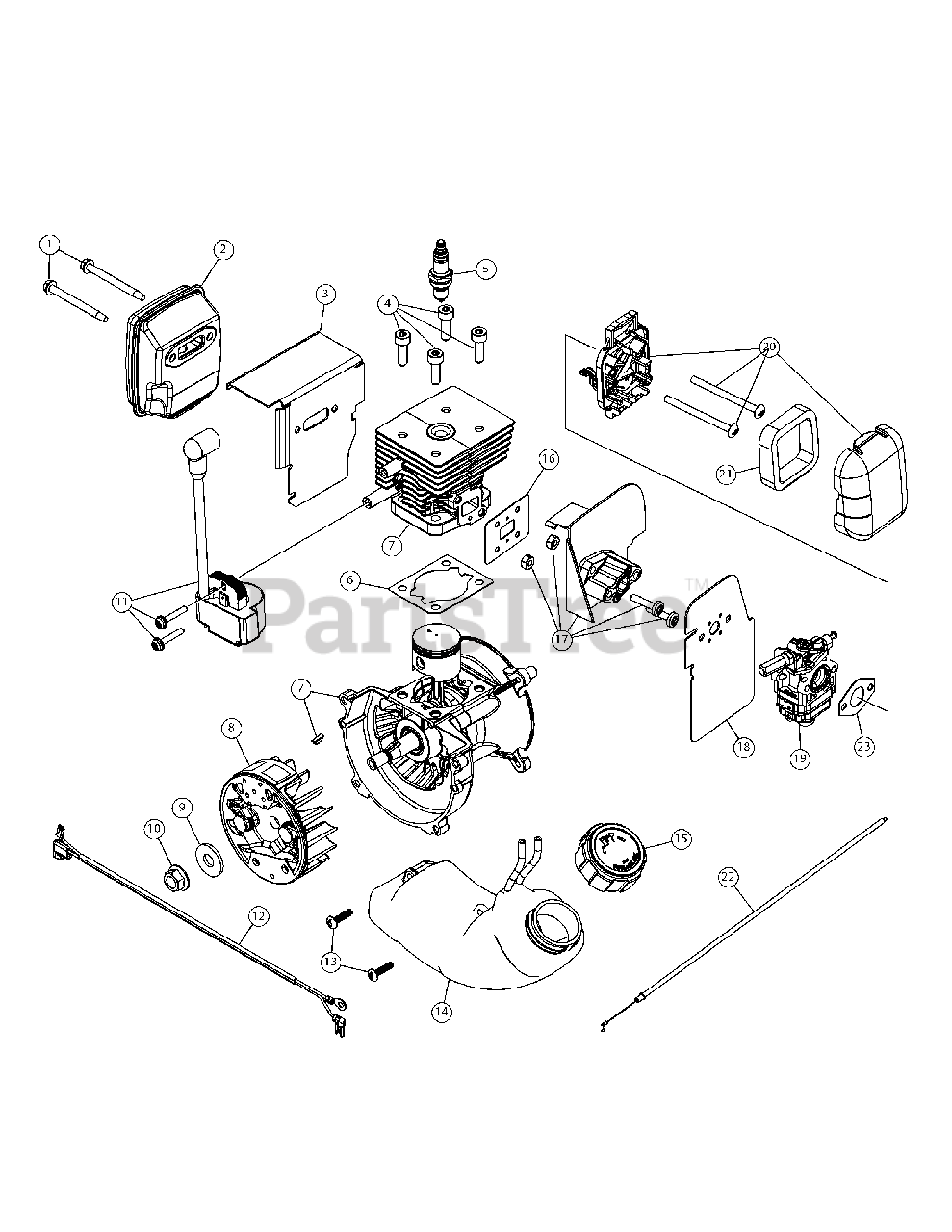

BV 228 (41AS2BVG812) - Cub Cadet Handheld Blower (2015) Engine Assembly Parts Diagram

Handheld Blower

Engine Assembly Parts Diagram

  • Title

1

Cub Cadet 753-06294

Muffler Screw

$2.99

$

In Stock, Qty 11

0

2

Cub Cadet 753-06027

Muffler Assembly (Incl. 1 & 3)

$38.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 753-05946

Muffler Gasket

$9.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-04715

Screw

$6.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 753-06193

Spark Plug
(Superseded to 753-06847)

$2.99

$

In Stock, Qty 20+

0

6

Cub Cadet 753-06360

Cylinder Gasket

$

$

Not available

7

Cub Cadet 753-08462

Shortblock Assembly (Incl. 4 - 6 & 8)

$

$

Not available

8

Cub Cadet 753-06175

Flywheel Assembly

$17.99

$

In Stock, Qty 7

0

9

Cub Cadet 753-05928

Washer

$2.99

$

In Stock, Qty 6

0

10

Cub Cadet 712-04137

Nut

$6.49

$

In Stock, only 3 left!

0

11

Cub Cadet 753-08346

Module Assembly

$30.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 753-08260

Lead Wire

$8.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 710-04194

Screw

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 753-07008

Fuel Tank Assembly (Incl. 13 & 15)

$15.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 753-06857

Fuel Cap

$7.49

$

In Stock, Qty 17

0

16

Cub Cadet 753-06353

Insulator Gasket

$3.49

$

Usually ships in 3-6 days

0

17

Cub Cadet 753-06354

Insulator Assembly (Incl. 16)

$4.49

$

Usually ships in 3-6 days

0

18

Cub Cadet 753-07009

Carburetor Gasket

$2.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 753-07010

Carburetor Assembly (Incl. 20)

$41.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 753-07011

Air Cleaner Assembly (Incl. 21)

$4.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 791-181757

Air Filter

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 753-05952

Throttle Cable

$10.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 753-06253

Carburetor Gasket

$3.49

$

In Stock, Qty 20+

0
