BVM 200 C (579382201) - Poulan Pro Blower Vacuum (2011-10) ENGINE Parts Diagram

Blower Vacuum

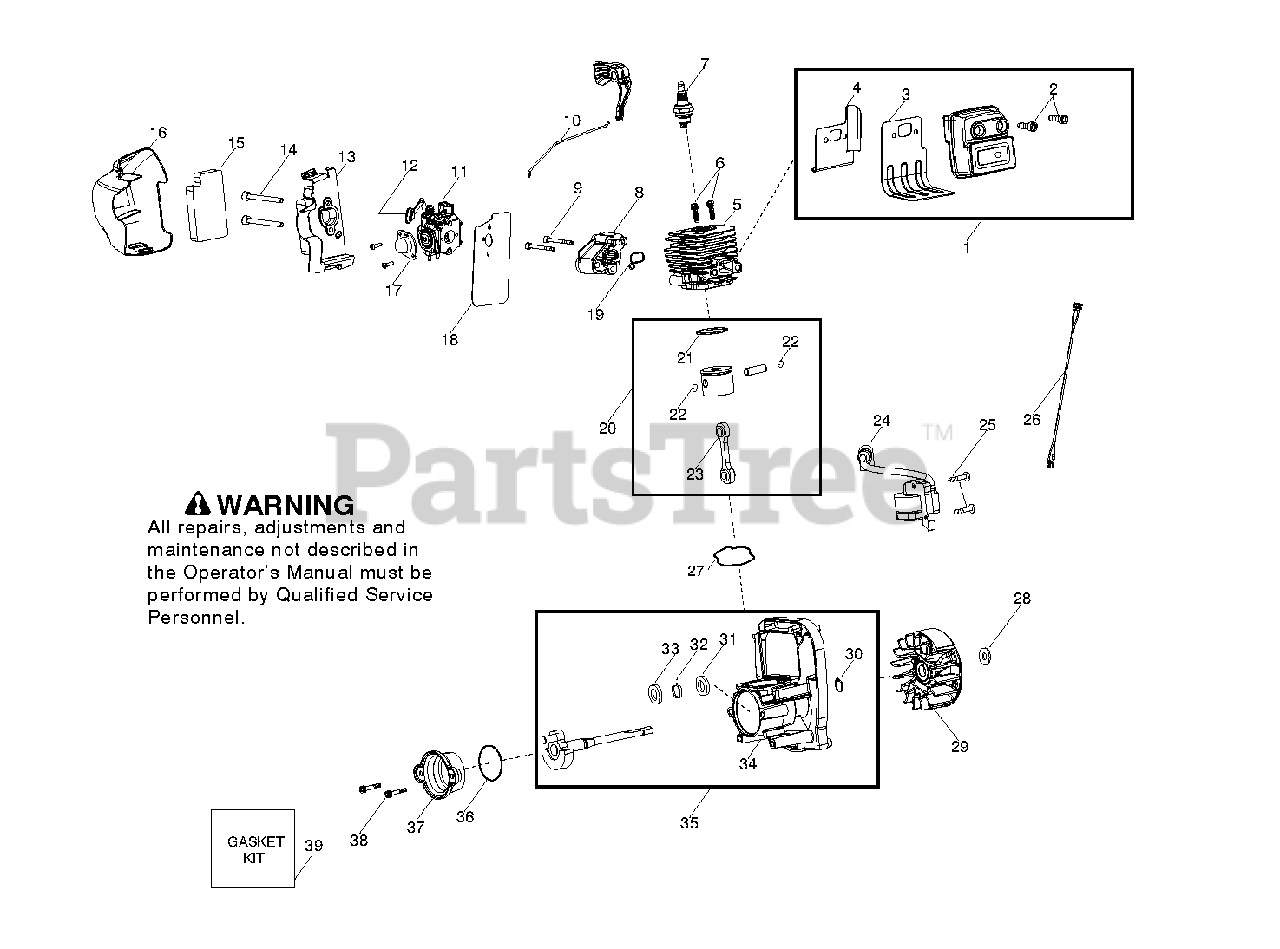

ENGINE Parts Diagram

  • Title

1

Poulan 525592801

ASSY MUFFLER WELDED

Note: 2 3 4

$37.99

$

In Stock, only 2 left!

0

2

Poulan 530058982

BOLT MUFFLER

$4.99

$

In Stock, Qty 12

0

4

Poulan 545098801

SHIELD MUFFLER HEAT

$8.99

$

Usually ships in 3-10 days

0

5

Poulan 545115301

CYLINDER CHROME 25CC

$

$

Not available

6

Poulan 530015953

SCREW

$6.49

$

In Stock, Qty 8

0

7

Poulan 952030249

PLUG-SPARK (RCJ-6Y)

$4.99

$

In Stock, Qty 20+

0

8

Poulan 545084901

ADAPTER CARBURETOR

$17.99

$

In Stock, only 1 left!

0

9

Poulan 530016441

SCREW

$6.49

$

Usually ships in 3-10 days

0

10

Poulan 545115501

LINKAGE THROTTLE

$6.49

$

Usually ships in 3-10 days

0

11

Poulan 545081855

KIT CARBURETOR WT-875A

Note: 12 17

$44.99

$

In Stock, Qty 6

0

12

Poulan 545157103

LEVER CHOKE WT-875

$9.99

$

Usually ships in 3-10 days

0

13

Poulan 545112603

BASE AIRBOX RED

$10.99

$

Usually ships in 3-10 days

0

14

Poulan 530016429

SCREW

$6.49

$

In Stock, Qty 8

0

15

Poulan 545116801

AIR FILTER FOAM

$6.49

$

In Stock, Qty 7

0

16

Poulan 545112702

COVER AIRBOX BLACK

$8.99

$

Usually ships in 3-10 days

0

17

Poulan 530035497

PURGE BULB 188-16

$9.99

$

Usually ships in 3-10 days

0

20

Poulan 545081864

KIT PISTON CONN ROD

Note: 21 22 23

$53.99

$

In Stock, only 3 left!

0

21

Poulan 545154009

PISTON RING

$3.99

$

In Stock, Qty 12

0

22

Poulan 530015162

WRIST PIN RET.

$6.49

$

Usually ships in 3-10 days

0

23

Poulan 545081865

KIT PISTON CONN ROD FORGED
(Superseded to 545156002)

$24.99

$

Usually ships in 3-10 days

0

24

Poulan 545158001

KIT MODULE W/0 INTERRUPT
(Superseded to 501092801)

$24.99

$

Usually ships in 3-10 days

0

25

Poulan 530016357

SCREW

$6.49

$

In Stock, Qty 5

0

26

Poulan 545127601

HARNESS WIRE

$10.99

$

Usually ships in 3-10 days

0

28

Poulan 530015828

WASHER FLAT

$4.99

$

In Stock, only 1 left!

0

29

Poulan 530054115

FLYWHEEL
(Superseded to 545221701)

$13.99

$

In Stock, only 1 left!

0

30

Poulan 530015941

RETAINING RING

$4.99

$

Usually ships in 3-10 days

0

31

Poulan 530055728

OUTER BEARING

$9.99

$

Usually ships in 3-10 days

0

32

Poulan 530019264

SEAL

$7.49

$

In Stock, only 1 left!

0

33

Poulan 530032125

BEARING
(Superseded to 738210101)

$18.99

$

Usually ships in 3-10 days

0

34

Poulan 530012582

ASSY CRANKCASE

Note: 31 32 33

$21.99

$

Usually ships in 3-10 days

0

35

Poulan 579012701

KIT CRANKCASE/CRANKSHAFT

Note: 30 34

$30.99

$

In Stock, only 1 left!

0

37

Poulan 530057954

ASSY REAR PLUG

Note: 36

$7.49

$

In Stock, only 4 left!

0

38

Poulan 530016386

SCREW

$10.99

$

In Stock, Qty 9

0

39

Poulan 545081832

KIT GASKET 25CC

Note: 3 18 19 27 36

$18.99

$

In Stock, only 1 left!

0
