BVM 200 C (579382201) - Poulan Pro Blower Vacuum (2011-10) HOUSING Parts Diagram

Blower Vacuum

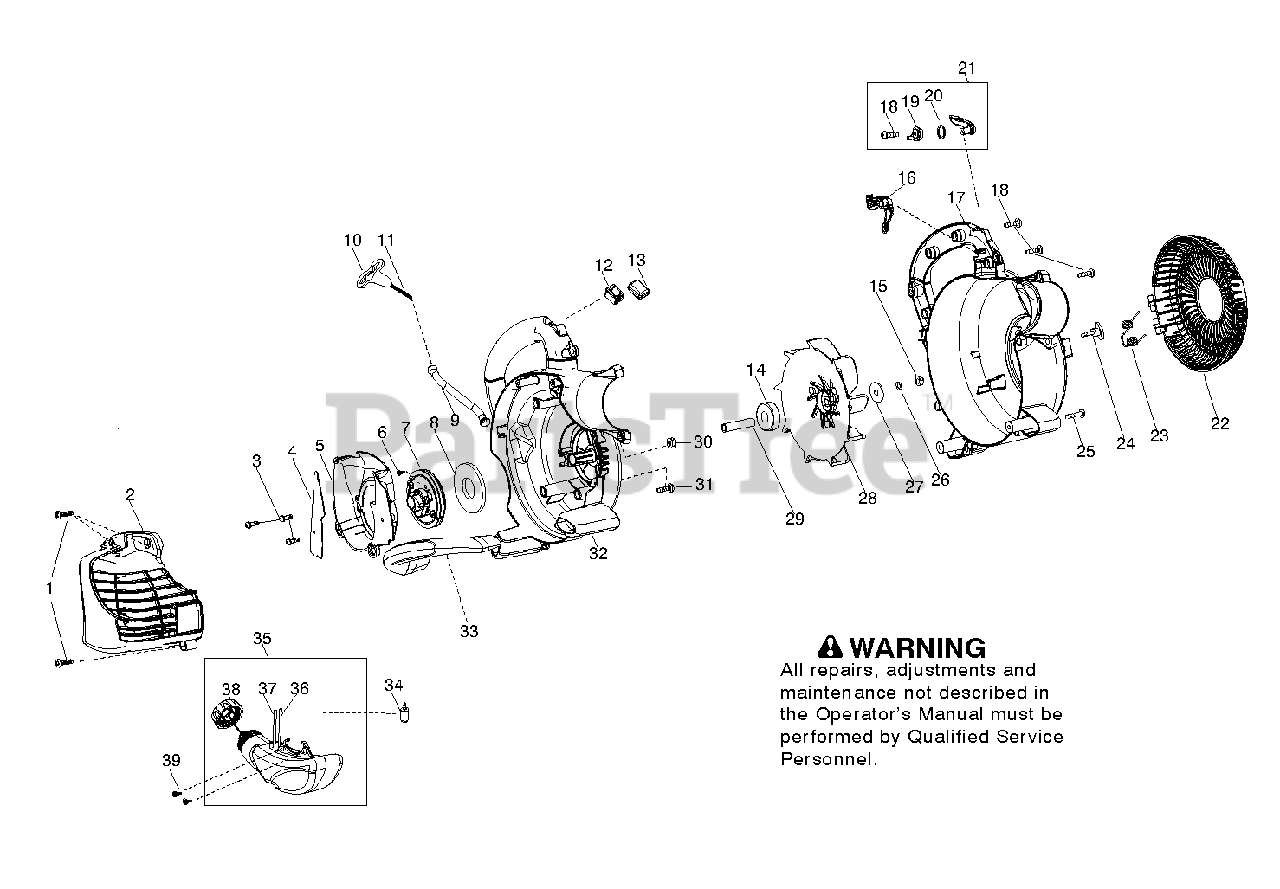

HOUSING Parts Diagram

  • Title

1

Poulan 530015814

SCREW

$6.49

$

In Stock, Qty 20+

0

2

Poulan 545135806

ASSY COVER ENGINE

$15.99

$

Usually ships in 3-10 days

0

3

Poulan 530015880

SCREW

$4.99

$

In Stock, Qty 8

0

4

Poulan 545134001

SHIELD BAFFLE

$6.49

$

Usually ships in 3-10 days

0

5

Poulan 545099101

BAFFLE

$9.99

$

Usually ships in 3-10 days

0

6

Poulan 530016391

SCREW SEMS TOOTHED WASHER

$2.23

$

Usually ships in 3-10 days

0

7

Poulan 545081852

KIT STARTER PULLEY

$17.99

$

Usually ships in 3-10 days

0

8

Poulan 545213601

KIT STARTER SPRING
(Superseded to 545008011)

$9.99

$

In Stock, Qty 11

0

9

Poulan 545107101

TUBE STARTER ROPE

$8.99

$

Usually ships in 3-10 days

0

10

Poulan 530054834

HANDLE STARTER BLK

$4.99

$

In Stock, only 1 left!

0

11

Poulan 545081833

KIT ROPE

$6.49

$

Usually ships in 3-10 days

0

12

Poulan 545081830

KIT SWITCH

Note: 13

$8.99

$

In Stock, only 2 left!

0

13

Poulan 545128201

Protector Switch

$4.99

$

Usually ships in 3-10 days

0

14

Poulan 545099001

Hub Bearing

$6.49

$

Usually ships in 3-10 days

0

15

Poulan 530626605

NUT

$3.99

$

Usually ships in 3-10 days

0

16

Poulan 576894601

TRIGGER THROTTLE SRS RED

$

$

Not available

17

Poulan 579382001

ASSY SCROLL LEFT PRO GOLD

Note: 22 23

$

$

Not available

18

Poulan 530015814

SCREW

$6.49

$

In Stock, Qty 20+

0

19

Poulan 545111501

RATCHET CRUISE CONTRO

$7.49

$

Usually ships in 3-10 days

0

20

Poulan 545173101

WASHER

$3.99

$

Usually ships in 3-10 days

0

21

Poulan 545081867

KIT CRUISE CONTROL

Note: 18 19 20

$10.99

$

Usually ships in 3-10 days

0

22

Poulan 545100801

DOOR VAC BLACK

$12.99

$

Usually ships in 3-10 days

0

23

Poulan 545115601

SPRING VAC DOOR

$4.99

$

Usually ships in 3-10 days

0

24

Poulan 545144501

KNOB BLOWER

$6.49

$

Usually ships in 3-10 days

0

25

Poulan 530016406

SCREW #10 PLASTITE 1.362

$6.49

$

In Stock, only 1 left!

0

26

Poulan 530092322

LOCK WASHER

$3.49

$

Usually ships in 3-10 days

0

27

Poulan 545109901

Impeller Washer

$3.99

$

In Stock, only 2 left!

0

28

Poulan 545113601

ASSY IMPELLAR HUB
(Superseded to 580780901)

$8.99

$

In Stock, Qty 12

0

29

Poulan 576810101

FLYWHEEL SPACER

$6.49

$

Usually ships in 3-10 days

0

30

Poulan 530015197

NUT

$6.49

$

In Stock, Qty 5

0

31

Poulan 530016386

SCREW

$10.99

$

In Stock, Qty 9

0

32

Poulan 577011201

Note: 14

$

$

Not available

33

Poulan 545101201

HANDLE VAC BLACK

$12.99

$

In Stock, only 3 left!

0

34

Poulan 530095646

FUEL PICK-UP ASSY

$4.99

$

In Stock, Qty 20+

0

35

Poulan 576764901

FUEL TANK
(Superseded to 578943308)

Note: 36 37 38

$

$

Not available

36

Poulan 530069247

KIT-LINE

$6.49

$

In Stock, Qty 20+

0

37

Poulan 530069216

LINE KIT

$6.49

$

In Stock, Qty 20+

0

38

Poulan 530057973

ASSY FUEL CAP W/RETAINER
(Superseded to 578931605)

$7.99

$

In Stock, only 1 left!

0

39

Poulan 530016445

SCREW FUEL TANK RETAINER

$6.49

$

In Stock, Qty 6

0
