BVM 200 - Poulan Pro Blower Vacuum, Type 1 Engine Assembly Type 1 Parts Diagram

Blower Vacuum, Type 1

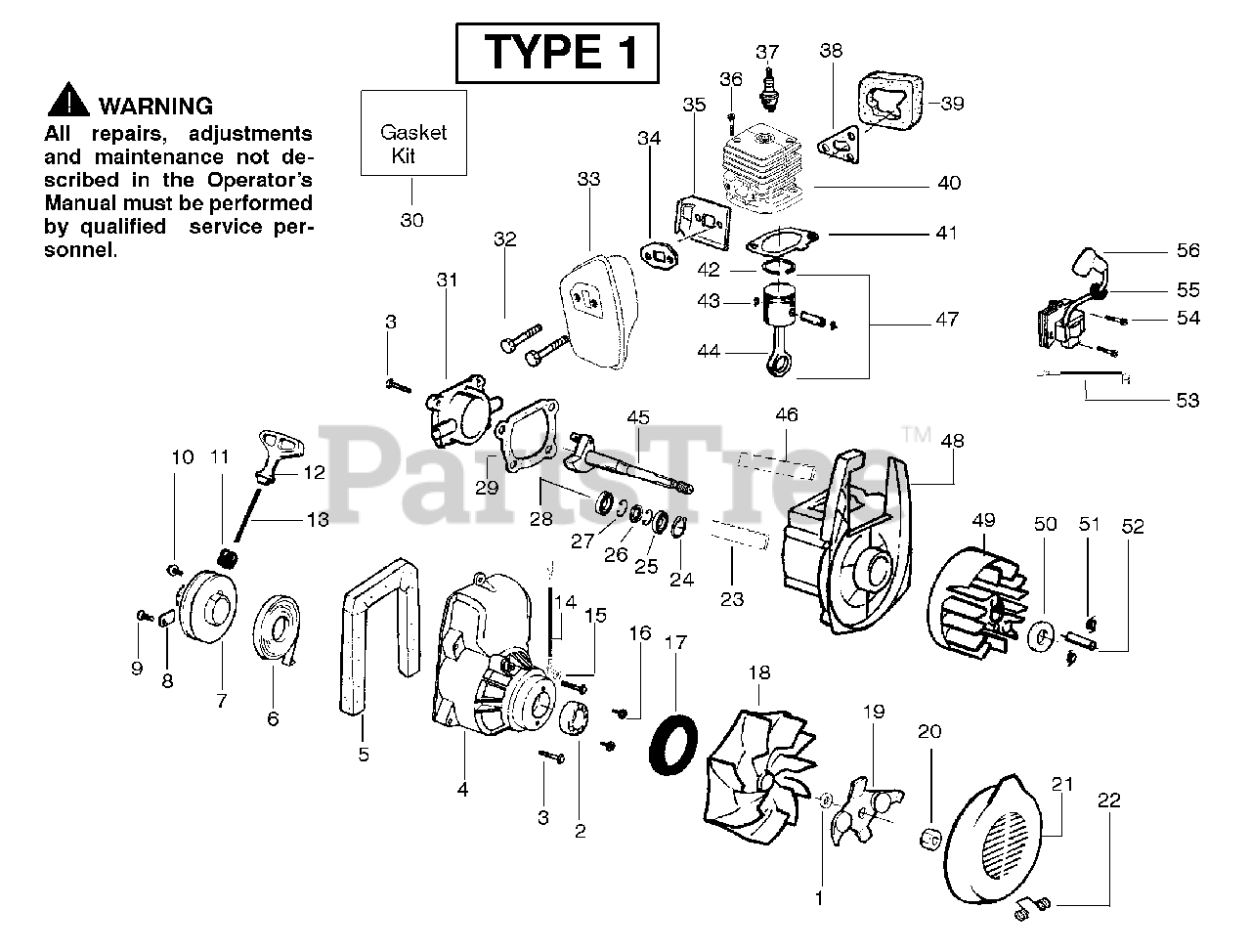

Engine Assembly Type 1 Parts Diagram

  • Title

1

Poulan 530016240

Washer-Belleville

$6.49

$

In Stock, Qty 5

0

2

Poulan 530054292

Bearing

$

$

Not available

3

Poulan 530015810

Screw
(Superseded to 530016386)

$10.99

$

In Stock, Qty 9

0

4

Poulan 530054114

Fan Housing Ass'y.

Note: (incl. 2, 3)

$

$

Not available

5

Poulan 530049713

Foam Seal

$

$

Not available

6

Poulan 530042086

Starter Spring
(Superseded to 545008011)

$9.99

$

In Stock, Qty 11

0

7

Poulan 530069885

Starter Pulley Kit

$12.99

$

Usually ships in 3-10 days

0

8

Poulan 530016226

Retainer Can

$

$

Not available

9

Poulan 530015880

Screw

$4.99

$

In Stock, Qty 8

0

10

Poulan 530016080

Screw-Starter Pulley

$6.49

$

In Stock, Qty 11

0

11

Poulan 530029182

Eyelet - Flange

$4.99

$

Usually ships in 3-10 days

0

12

Poulan 530049488

Starter Handle

$3.99

$

In Stock, only 1 left!

0

13

Poulan 530069232

Kit - Rope

$7.49

$

In Stock, Qty 20+

0

14

Poulan 530049496

Leadwire - Ground

$

$

Not available

15

Poulan 530015677

Washer

$

$

Not available

16

Poulan 530015815

Screw

$3.99

$

In Stock, only 2 left!

0

17

Poulan 530019240

O-Ring

$

$

Not available

18

Poulan 530069817

Assy.Impeller

$

$

Not available

19

Poulan 530095461

Assy. Mulch Blade
(Superseded to 530095355)

$6.49

$

Usually ships in 3-10 days

0

20

Poulan 530626605

Nut

$3.99

$

Usually ships in 3-10 days

0

21

Poulan 530049313

Door - Inlet

$

$

Not available

22

Poulan 530402043

Spring-Return Cover

$4.99

$

In Stock, Qty 5

0

23

Poulan 530049847

Foam - Side

$2.49

$

Usually ships in 3-10 days

0

24

Poulan 530015941

Retainer Ring-C'chaft

$4.99

$

Usually ships in 3-10 days

0

25

Poulan 530032124

Bearing - Outer

$7.49

$

Usually ships in 3-10 days

0

26

Poulan 530019179

Seal - Crankcase

$7.49

$

Usually ships in 3-10 days

0

27

Poulan 530015945

Retaining Ring- C'case

$3.99

$

Usually ships in 3-10 days

0

28

Poulan 530032125

Bearing - Inner
(Superseded to 738210101)

$18.99

$

Usually ships in 3-10 days

0

29

Poulan 530019181

Gasket - C'case/Shrd

$6.49

$

In Stock, only 4 left!

0

30

Poulan 530069813

Kit - Gasket

Note: (incl. 29,34,38,41) (incl. 29,41 on pg.1)

$12.99

$

Usually ships in 3-10 days

0

31

Poulan 530049297

Cover - Crankcase

$8.99

$

Usually ships in 3-10 days

0

32

Poulan 530016203

Bolt - Muffler

$3.99

$

In Stock, only 2 left!

0

33

Poulan 530052241

Assy. -Muffler

$6.99

$

In Stock, only 1 left!

0

34

Poulan 530019241

Gasket - Muffler

$

$

Not available

35

Poulan 530049502

Shield - Muffler

$3.99

$

In Stock, only 1 left!

0

36

Poulan 530015953

Screw

$6.49

$

In Stock, Qty 8

0

37

Poulan 952030201

Spark Plug (RCJ-8Y)
(Superseded to 952030150)

$3.49

$

In Stock, Qty 20+

0

38

Poulan 530019242

Gasket- Carb. Adapter

$

$

Not available

39

Poulan 530019247

Air Dam

$3.99

$

Usually ships in 3-10 days

0

40

Poulan 530071373

Cylinder Kit
(Superseded to 530012422)

$

$

Not available

41

Poulan 530049467

Gasket - Cylinder

$

$

Not available

42

Poulan 530053565

Piston Rings (2)
(Superseded to 545154009)

$3.99

$

In Stock, Qty 12

0

43

Poulan 530015162

Retainer

$6.49

$

Usually ships in 3-10 days

0

44

Poulan 530069945

Connecting Rod Ass'y.
(Superseded to 530049817)

$9.99

$

Usually ships in 3-10 days

0

45

Poulan 530049429

Assy. - Crankshaft

$21.99

$

Usually ships in 3-10 days

0

46

Poulan 530049846

Foam - Top

$

$

Not available

47

Poulan 530071372

Piston Kit
(Superseded to 530071476)

Note: (Incl. 42 & 43)

$40.99

$

Usually ships in 3-10 days

0

48

Poulan 530069818

Assy.- Crankcase
(Superseded to 530049521)

Note: (incl. 25-28)

$

$

Not available

49

Poulan 530071268

Assy-Flywheel

Note: (incl 51)

$

$

Not available

50

Poulan 530015149

Washer

$4.99

$

In Stock, only 3 left!

0

51

Poulan 530023817

Spring-Starter Dog

$6.49

$

In Stock, Qty 5

0

52

Poulan 530016190

Flywheel Spacer

$

$

Not available

53

Poulan 530049495

Leadwire - Switch

$

$

Not available

54

Poulan 530016208

Bolt

$

$

Not available

55

Poulan 530019182

Grommet-Ign. Module

$3.99

$

Usually ships in 3-10 days

0

56

Poulan 530052266

Ignition Module

$40.99

$

Usually ships in 3-10 days

0

Poulan 530069914

Spark Arrestor Kit

Note: (Optional); Not Shown

$14.99

$

Usually ships in 3-10 days

0
