BVM 200 VS - Poulan Blower (2009-03) Starter Parts Diagram

Blower

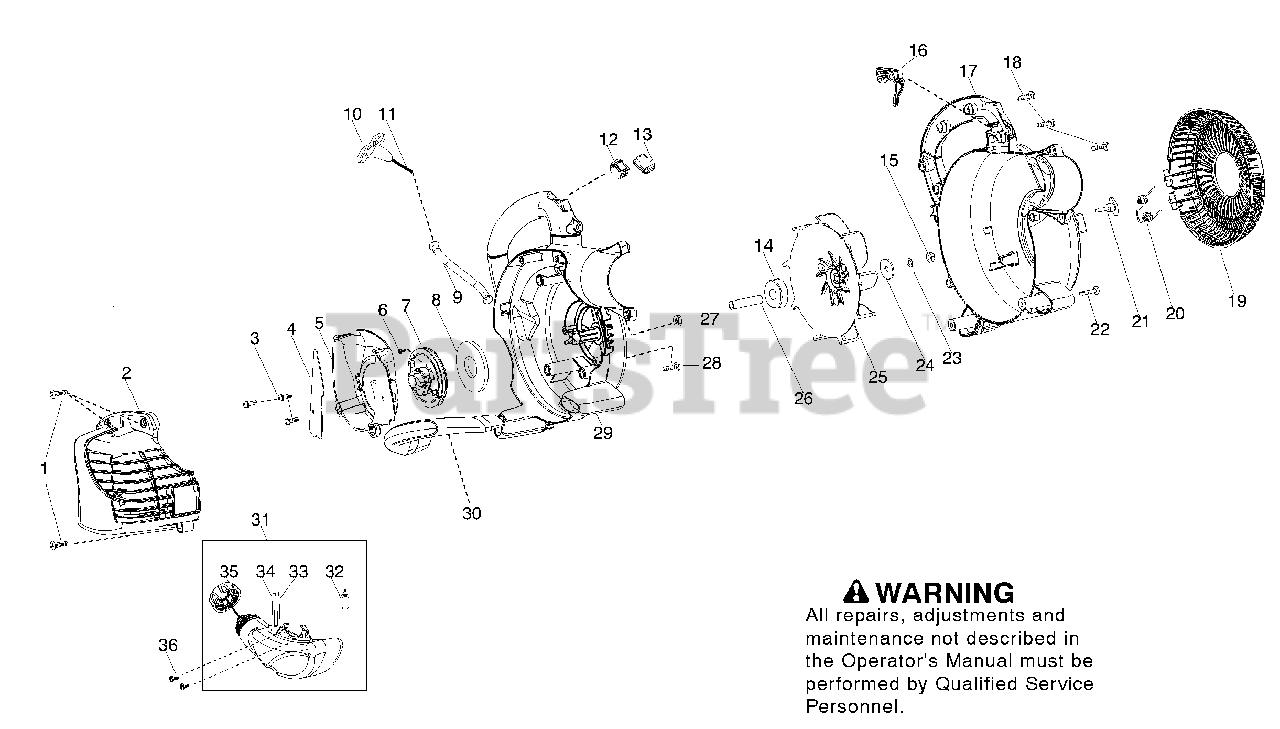

Starter Parts Diagram

  • Title

1

Electrolux/AYP 530015814

Screw

$6.49

$

In Stock, Qty 20+

0

2

Electrolux/AYP 545135806

Assy - Engine Cover

$15.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 530015880

Screw

$4.99

$

In Stock, Qty 8

0

4

Electrolux/AYP 545134001

Shield - Baffle

$6.49

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 545099101

Baffle

$9.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 530016391

Screw

$2.23

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 545081852

Kit - Starter Pulley

$17.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 530042086

Spring - Starter
(Superseded to 545008011)

$9.99

$

In Stock, Qty 11

0

9

Electrolux/AYP 545107101

Tube - Starter Rope

$8.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 530054834

Handle - starter

$4.99

$

In Stock, only 1 left!

0

11

Electrolux/AYP 545081833

Kit - Rope

$6.49

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 545081830

Kit - Switch (momentary)

Note: (Incl. 13)

$8.99

$

In Stock, only 2 left!

0

13

Electrolux/AYP 545128201

Protector - Switch

$4.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 545099001

Bearing

$6.49

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 530626605

Nut

$3.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 545113803

Trigger - Throttle

$9.99

$

In Stock, only 1 left!

0

17

Electrolux/AYP 545134103

Assy - Scroll LH

Note: (Incl. 19,20)

$

$

Not available

18

Electrolux/AYP 530015814

Screw

$6.49

$

In Stock, Qty 20+

0

19

Electrolux/AYP 545100801

Door- Vac

$12.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 545115601

Spring - Vac Door

$4.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 545144501

Knob - Blower

$6.49

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 530016406

Screw - Handle Vac

$6.49

$

In Stock, only 1 left!

0

23

Electrolux/AYP 530092322

Washer - Lock

$3.49

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 545109901

Washer - Impeller

$3.99

$

In Stock, only 2 left!

0

25

Electrolux/AYP 545113601

Assy-Impeller
(Superseded to 580780901)

$8.99

$

In Stock, Qty 12

0

26

Electrolux/AYP 545113701

Spacer - Flywheel

$4.99

$

In Stock, only 1 left!

0

27

Electrolux/AYP 530015197

Nut

$6.49

$

In Stock, Qty 5

0

28

Electrolux/AYP 530016386

Screw

$10.99

$

In Stock, Qty 9

0

29

Electrolux/AYP 545161604

Assy-Scroll Assy. RH
(Superseded to 545100903)

Note: (Incl. 14)

$46.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 545101201

Handle - Vac

$12.99

$

In Stock, only 3 left!

0

31

Electrolux/AYP 545100401

Assy - Fuel Tank
(Superseded to 578943308)

Note: (Incl. 32,33,34,35)

$24.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 530095646

Assy - Fuel Pickup

$4.99

$

In Stock, Qty 20+

0

33

Electrolux/AYP 530069247

Kit - Fuel Line (carb/purge)

$6.49

$

In Stock, Qty 20+

0

34

Electrolux/AYP 530069216

Kit - Fuel Line (tank/purge)

$6.49

$

In Stock, Qty 20+

0

35

Electrolux/AYP 530057973

Assy - Fuel Cap w/retainer
(Superseded to 578931605)

$7.99

$

In Stock, only 1 left!

0

36

Electrolux/AYP 530016445

Screw - Fuel Tank Retainer

$6.49

$

In Stock, Qty 6

0

36

Electrolux/AYP 545146927

Manual

Note: Not Shown

$6.49

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 545001245

Decal - Warning
(Superseded to 527290301)

Note: Not Shown

$

$

Not available

36

Electrolux/AYP 545001285

Decal - Start Instructions

Note: Not Shown

$

$

Not available

36

Electrolux/AYP 522928602

Decal - Spark Arrestor Warning

Note: Not Shown

$3.99

$

Usually ships in 3-10 days

0
