BVM 200 VS - Poulan Pro Blower Vacuum (Original) Housing Type 1, 2 Parts Diagram

Blower Vacuum

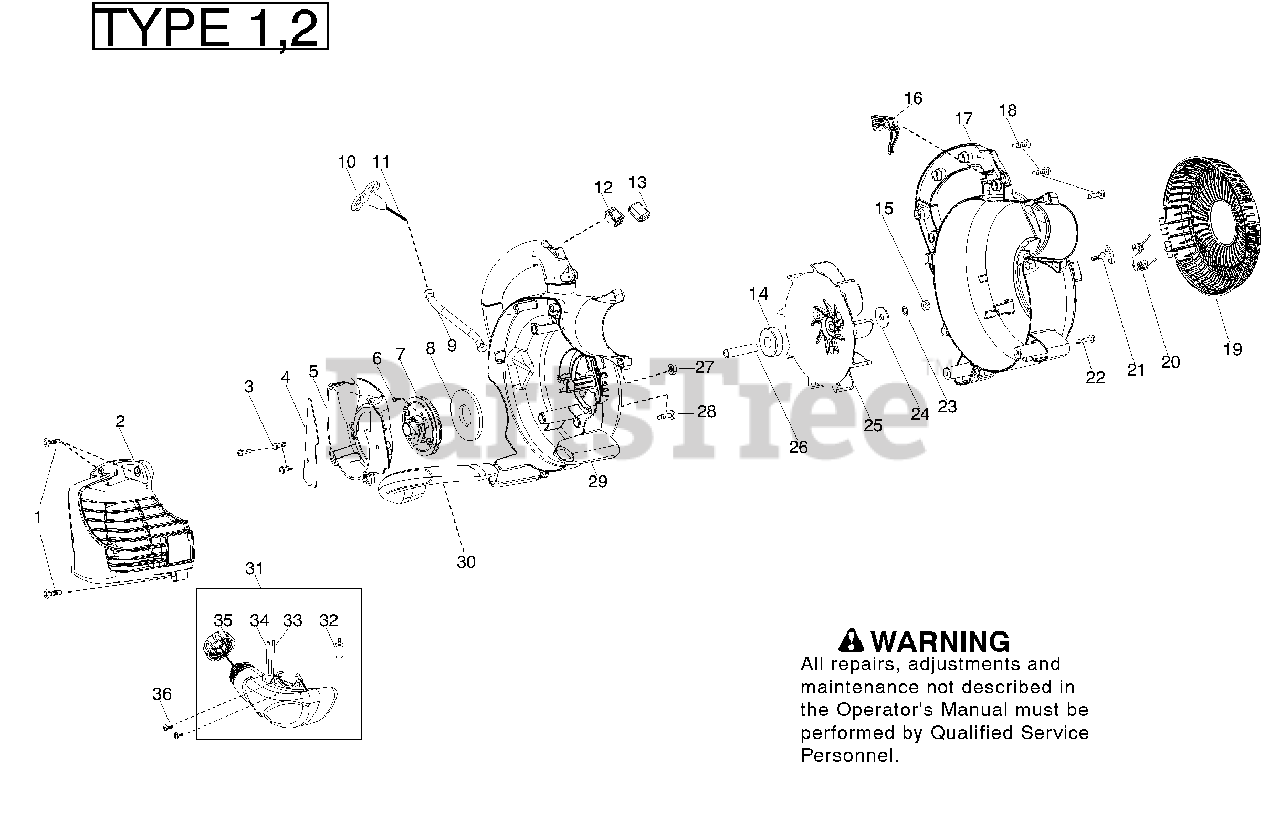

Housing Type 1, 2 Parts Diagram

  • Title

1

Poulan 530015814

Screw

$6.49

$

In Stock, Qty 20+

0

2

Poulan 545135806

Assy - Engine Cover

$15.99

$

Usually ships in 3-10 days

0

3

Poulan 530015880

Screw

$4.99

$

In Stock, Qty 8

0

4

Poulan 545134001

Shield - Baffle

$6.49

$

Usually ships in 3-10 days

0

5

Poulan 545099101

Baffle

$9.99

$

Usually ships in 3-10 days

0

6

Poulan 530016391

Screw

$2.23

$

Usually ships in 3-10 days

0

7

Poulan 545081852

Kit - Starter Pulley

$17.99

$

Usually ships in 3-10 days

0

8

Poulan 545213601

Spring - Starter
(Superseded to 545008011)

$9.99

$

In Stock, Qty 11

0

9

Poulan 545107101

Tube - Starter Rope

$8.99

$

Usually ships in 3-10 days

0

10

Poulan 530054834

Handle - starter

$4.99

$

In Stock, only 1 left!

0

11

Poulan 545081833

Kit - Rope

$6.49

$

Usually ships in 3-10 days

0

12

Poulan 545081830

Kit - Switch (momentary)

Note: (Incl. 13)

$8.99

$

In Stock, only 2 left!

0

13

Poulan 545128201

Protector - Switch

$4.99

$

Usually ships in 3-10 days

0

14

Poulan 545099001

Bearing

$6.49

$

Usually ships in 3-10 days

0

15

Poulan 530626605

Nut

$3.99

$

Usually ships in 3-10 days

0

16

Poulan 545113803

Trigger - Throttle

$9.99

$

In Stock, only 1 left!

0

17

Poulan 545134103

Assy - Scroll LH

Note: (Incl. 19,20)

$

$

Not available

18

Poulan 530015814

Screw

$6.49

$

In Stock, Qty 20+

0

19

Poulan 545100801

Door- Vac

$12.99

$

Usually ships in 3-10 days

0

20

Poulan 545115601

Spring - Vac Door

$4.99

$

Usually ships in 3-10 days

0

21

Poulan 545144501

Knob - Blower

$6.49

$

Usually ships in 3-10 days

0

22

Poulan 530016406

Screw - Handle Vac

$6.49

$

In Stock, only 1 left!

0

23

Poulan 530092322

Washer - Lock

$3.49

$

Usually ships in 3-10 days

0

24

Poulan 545109901

Washer - Impeller

$3.99

$

In Stock, only 2 left!

0

25

Poulan 545113601

Assy-Impeller
(Superseded to 580780901)

$8.99

$

In Stock, Qty 12

0

26

Poulan 545113701

Spacer - Flywheel

$4.99

$

In Stock, only 1 left!

0

27

Poulan 530015197

Nut

$6.49

$

In Stock, Qty 5

0

28

Poulan 530016386

Screw

$10.99

$

In Stock, Qty 9

0

29

Poulan 545161604

Assy-Scroll Assy. RH
(Superseded to 545100903)

Note: (Incl. 14)

$46.99

$

Usually ships in 3-10 days

0

30

Poulan 545101201

Handle - Vac

$12.99

$

In Stock, only 3 left!

0

31

Poulan 526222201

Assy - Fuel Tank
(Superseded to 578943308)

Note: (Incl. 32,33,34,35)

$

$

Not available

32

Poulan 530095646

Assy - Fuel Pickup

$4.99

$

In Stock, Qty 20+

0

33

Poulan 530069247

Kit - Fuel Line (carb/purge)

$6.49

$

In Stock, Qty 20+

0

34

Poulan 530069216

Kit - Fuel Line (tank/purge)

$6.49

$

In Stock, Qty 20+

0

35

Poulan 530057973

Assy - Fuel Cap w/retainer
(Superseded to 578931605)

$7.99

$

In Stock, only 1 left!

0

36

Poulan 530016445

Screw - Fuel Tank Retainer

$6.49

$

In Stock, Qty 6

0

36

Poulan 115351127

Manual

Note: Not Shown

$

$

Not available

36

Poulan 527290301

Decal - Warning

Note: Not Shown

$

$

Not available
