BZ 34 (968999316) - Husqvarna Zero-Turn Mower (2007-03) PARKING BRAKE Parts Diagram

Zero-Turn Mower

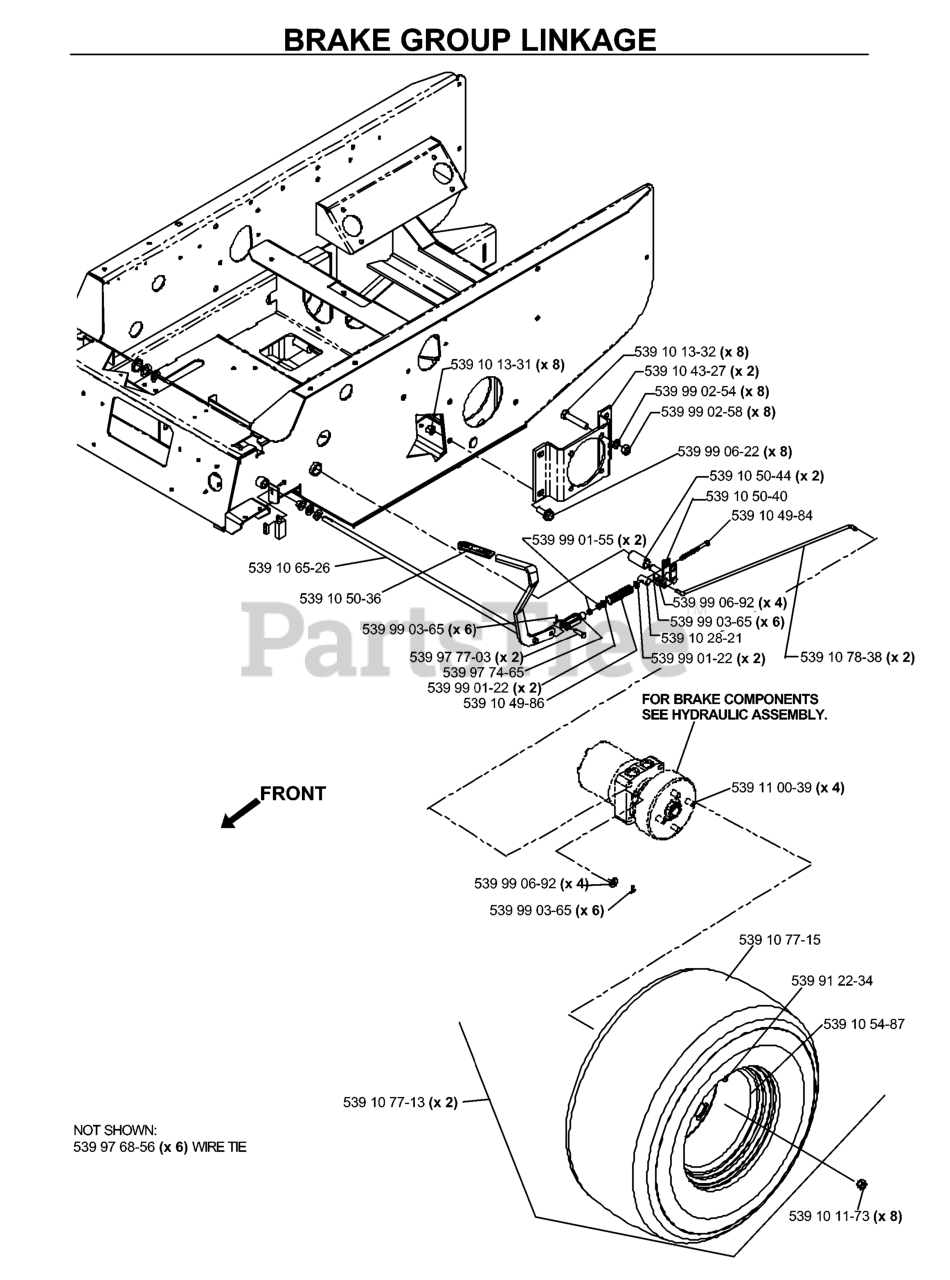

PARKING BRAKE Parts Diagram

  • Title

539 99 02-54

Husqvarna 539990254

WASHER 1/2" SPLIT LOCK

$4.99

$

Usually ships in 3-10 days

0

539 10 13-31

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

539 10 11-73

Husqvarna 539101173

LUG NUT 1/2F
(Superseded to 587653903)

$4.99

$

In Stock, Qty 10

0

539 99 01-22

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

539 10 50-36

Husqvarna 539105036

GRIP, PARK BRAKE

$3.99

$

In Stock, only 2 left!

0

539 10 78-38

Husqvarna 539107838

BRAKE LINKAGE BAR

$

$

Not available

539 10 77-15

Husqvarna 539107715

TIRE, 26-12 X 12

$

$

Not available

539 97 74-65

Husqvarna 539977465

YOKE-3/8-24 PLTD
(Superseded to 596739901)

$35.99

$

In Stock, Qty 11

0

539 97 68-56

Husqvarna 539976856

TIE, PLASTIC

$6.99

$

Usually ships in 3-10 days

0

539 99 02-58

Husqvarna 539990258

NUT HEX 1/2

$4.99

$

In Stock, Qty 9

0

539 99 06-92

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.99

$

In Stock, Qty 20+

0

539 99 03-65

Husqvarna 539990365

RP_COTTER PIN 1/8 X 3/4
(Superseded to 596029501)

$3.99

$

Usually ships in 3-10 days

0

539 10 13-32

Husqvarna 539101332

HCS 1/2C X 2 3/4

$5.99

$

In Stock, only 2 left!

0

539 10 65-26

Husqvarna 539106526

BRAKE ARM

$

$

Not available

539 99 01-55

Husqvarna 539990155

NUT 3/8F

$3.99

$

In Stock, Qty 15

0

539 10 49-86

Husqvarna 539104986

SPRING

$21.99

$

Usually ships in 3-10 days

0

539 10 50-40

Husqvarna 539105040

BELLCRANK

$

$

Not available

539 99 06-22

Husqvarna 539990622

HCS 1/2C X 1 1/4 SERRATED HEAD

$

$

Not available

539 91 22-34

Husqvarna 539912234

VALVE STEM TR-412

$4.99

$

In Stock, Qty 15

0

539 10 43-27

Husqvarna 539104327

MOTOR STANDOFF - PAINTED

$

$

Not available

539 10 28-21

Husqvarna 539102821

TRUNION PIN

$

$

Not available

539 10 54-87

Husqvarna 539105487

12"RIM 2.5" NEG OFFSET 8.5" W

$193.99

$

Usually ships in 3-10 days

0

539 10 50-44

Husqvarna 539105044

BRONZE BEARING

$

$

Not available

539 10 77-13

Husqvarna 539107713

TIRE/WHEEL ASSY 26 X 12-12

$

$

Not available

539 10 49-84

Husqvarna 539104984

HCS 3/8F X SPECIAL
(Superseded to 596438401)

$29.99

$

Usually ships in 3-10 days

0

539 97 77-03

Husqvarna 539977703

CLEVIS PIN 3/8 X 1 1/8

$

$

Not available

539 11 00-39

Husqvarna 539110039

WHEEL STUD 1/2-20X1-3/8 GR8 ZN

$

$

Not available
