BZ 6127 (968999262) - Husqvarna 61" Zero-Turn Mower (2005-01) Brake Group Linkage Parts Diagram

61" Zero-Turn Mower

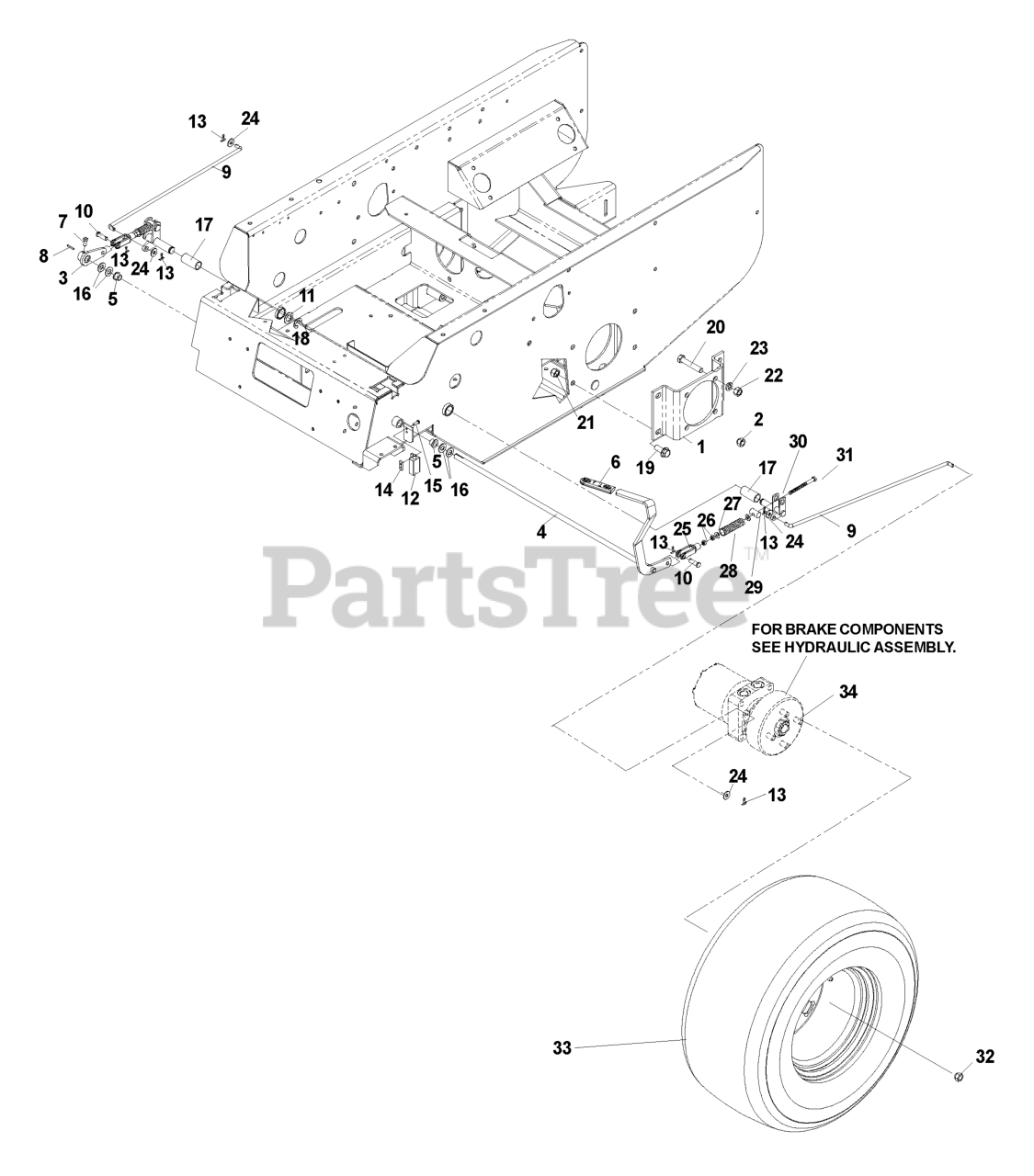

Brake Group Linkage Parts Diagram

  • Title

1

Husqvarna 539104327

MOTOR STANDOFF - PAINTED

$84.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539101173

LUG NUT 1/2F

$

$

Not available

3

Husqvarna 539106523

BRAKE ARM WELDMENT

$26.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539106526

BRAKE ARM

$84.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539102519

BUSHING

$2.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539105036

GRIP, PARK BRAKE

$6.49

$

In Stock, only 1 left!

0

7

Husqvarna 539102717

SCREW 5/16C X 5/8 SQ HEAD

$3.99

$

In Stock, Qty 6

0

8

Husqvarna 539106528

KEY

$

$

Not available

9

Husqvarna 539107838

BRAKE LINKAGE BAR

$24.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539977703

CLEVIS PIN 3/8 X 1 1/8

$4.99

$

In Stock, Qty 14

0

11

Husqvarna 539991050

BUSHING

$3.99

$

In Stock, Qty 6

0

12

Husqvarna 539106269

SWITCH

$21.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539990365

RP_COTTER PIN 1/8 X 3/4
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

14

Husqvarna 539102678

TAPPED PLATE

$15.99

$

In Stock, only 4 left!

0

15

Husqvarna 539976952

SCREW #10-24 X 5/8
(Superseded to 596039001)

$3.99

$

In Stock, Qty 20+

0

16

Husqvarna 539102843

WASHER, 7/16 DISC SPRING
(Superseded to 539115528)

$3.99

$

In Stock, only 3 left!

0

17

Husqvarna 539105044

BRONZE BEARING

$6.49

$

Usually ships in 3-10 days

0

18

Husqvarna 539102454

E RING 3/4

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539990622

HCS 1/2C X 1 1/4 SERRATED HEAD

$4.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539101332

HCS 1/2C X 2 3/4

$4.99

$

In Stock, only 4 left!

0

21

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

22

Husqvarna 539990258

NUT HEX 1/2

$4.99

$

In Stock, Qty 16

0

23

Husqvarna 539990254

WASHER 1/2" SPLIT LOCK

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

25

Husqvarna 539977465

YOKE-3/8-24 PLTD

$24.99

$

In Stock, Qty 12

0

26

Husqvarna 539990155

NUT 3/8F

$4.99

$

In Stock, Qty 16

0

27

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 539104986

SPRING

$10.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539102821

TRUNION PIN

$5.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539105040

BELLCRANK

$48.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539104984

HCS 3/8F X SPECIAL

$

$

Not available

32

Husqvarna 539101173

LUG NUT 1/2F

$

$

Not available

33

Husqvarna 539107713

TIRE/WHEEL ASSY 26 X 12-12

$485.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539107715

TIRE, 26-12 X 12

$484.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539105487

12"RIM 2.5" NEG OFFSET 8.5" W

$182.99

$

In Stock, only 1 left!

0

33

Husqvarna 539912234

VALVE STEM TR-412

$6.49

$

In Stock, Qty 20+

0

Husqvarna 539976856

TIE, PLASTIC

Note: (Not shown)

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539110039

WHEEL STUD 1/2-20X1-3/8 GR8 ZN

$

$

Not available
