BZ 6127 D (968999218) - Husqvarna 61" Zero-Turn Mower (SN: 033600000 & Above) (2004-11) Brake Group Linkage Parts Diagram

61" Zero-Turn Mower

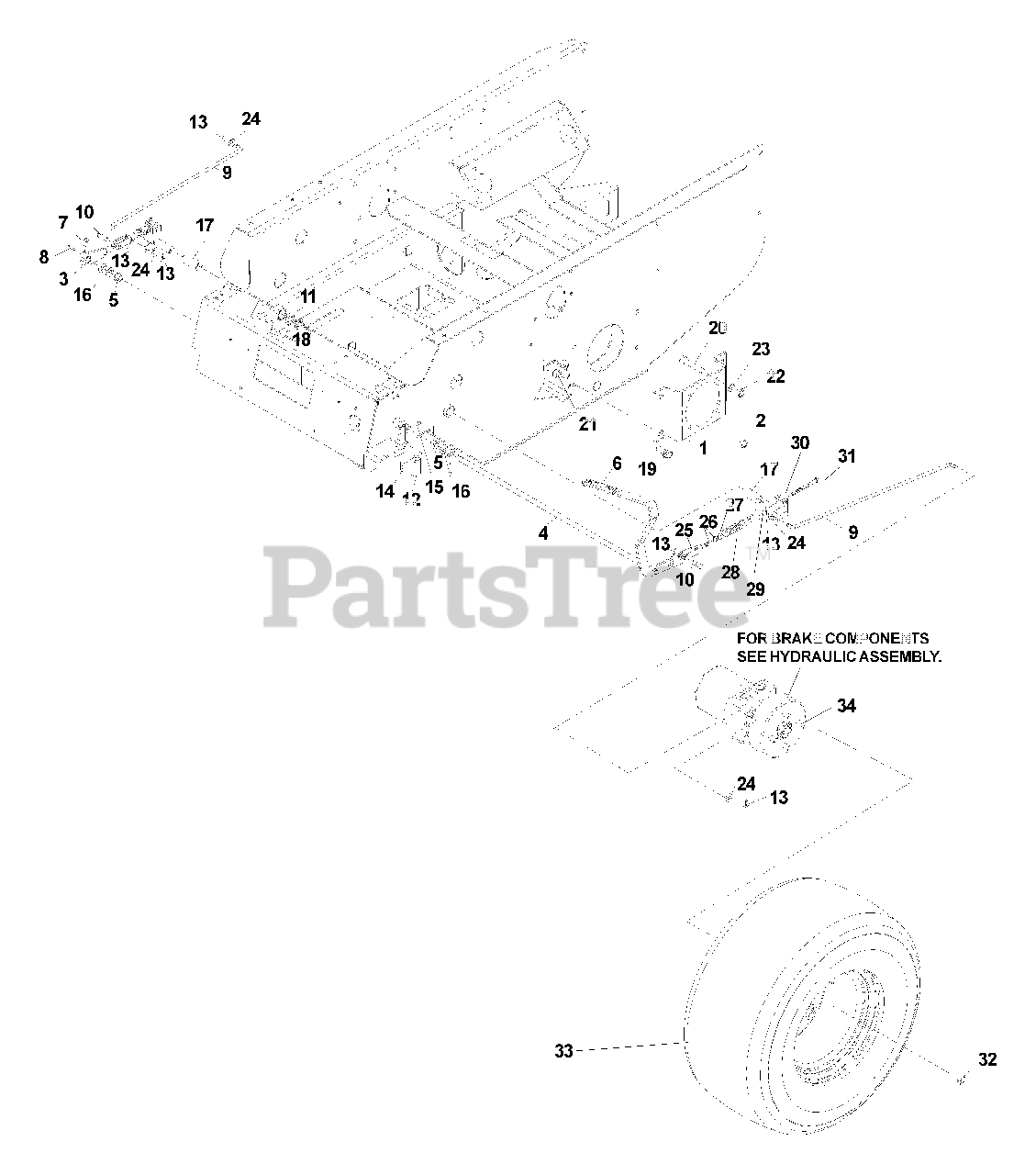

Brake Group Linkage Parts Diagram

  • Title

1

Husqvarna 539104327

Standoff, wheel motor

$84.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539101173

Nut, 1/2, lug

$

$

Not available

3

Husqvarna 539106523

Brake arm

$26.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539106526

Brake lever

$84.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539102519

Bushing, bronze

$2.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539105036

Grip, park brake

$6.49

$

In Stock, only 1 left!

0

7

Husqvarna 539102717

Setscrew, 5/16-18 sq. x 5/8

$3.99

$

In Stock, Qty 6

0

8

Husqvarna 539106528

Key, 1/8 sq. x 7/8

$

$

Not available

9

Husqvarna 539107838

Brake linkage bar

$24.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539977703

Pin, clevis

$4.99

$

In Stock, Qty 14

0

11

Husqvarna 539991050

Bushing, machine, 3/4

$3.99

$

In Stock, Qty 6

0

12

Husqvarna 539106269

Switch

$21.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539990365

Pin, cotter
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

14

Husqvarna 539102678

Plate, tapped

$15.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539976952

Screw, #10-24 x 5/8
(Superseded to 596039001)

$3.99

$

In Stock, Qty 20+

0

16

Husqvarna 539102843

Washer, 7/16, spring
(Superseded to 539115528)

$3.99

$

In Stock, only 3 left!

0

17

Husqvarna 539105044

Bearing, bronze

$6.49

$

Usually ships in 3-10 days

0

18

Husqvarna 539102454

E-ring, 3/4

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539990622

Bolt, 1/2-13 x 1 1/4, serrated washer

$4.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539101332

Bolt, 1/2-13 x 2 3/4

$4.99

$

In Stock, only 4 left!

0

21

Husqvarna 539101331

Nut, 1/2-13, nyloc
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

22

Husqvarna 539990258

Nut, 1/2-13

$4.99

$

In Stock, Qty 16

0

23

Husqvarna 539990254

Lockwasher, 1/2

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539990692

Washer, 5/16
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

25

Husqvarna 539977465

Yoke

$24.99

$

In Stock, Qty 12

0

26

Husqvarna 539990155

Nut, 3/8-24

$4.99

$

In Stock, Qty 16

0

27

Husqvarna 539990122

Washer 3/8
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 539104986

Spring

$10.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539102821

Pin, trunion

$5.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539105040

Bellcrank

$48.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539104984

Bolt, 3/8-24 x 4 1/2, special

$

$

Not available

32

Husqvarna 539101173

Nut, 1/2, lug

$

$

Not available

33

Husqvarna 539107713

Tire, rear, assembly

$485.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539107715

Tire

$484.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539105487

Rim

$182.99

$

In Stock, only 1 left!

0

33

Husqvarna 539912234

Air valve

$6.49

$

In Stock, Qty 20+

0

33

Husqvarna 539976856

Wire tie

Note: (Not shown)

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539110039

Wheel stud, 1/2-20 x 1 3/8, Gr8

$

$

Not available
