BZ 6127 D (968999262) - Husqvarna 61" Zero-Turn Mower (2005-08) 61" Deck Parts Diagram

61" Zero-Turn Mower

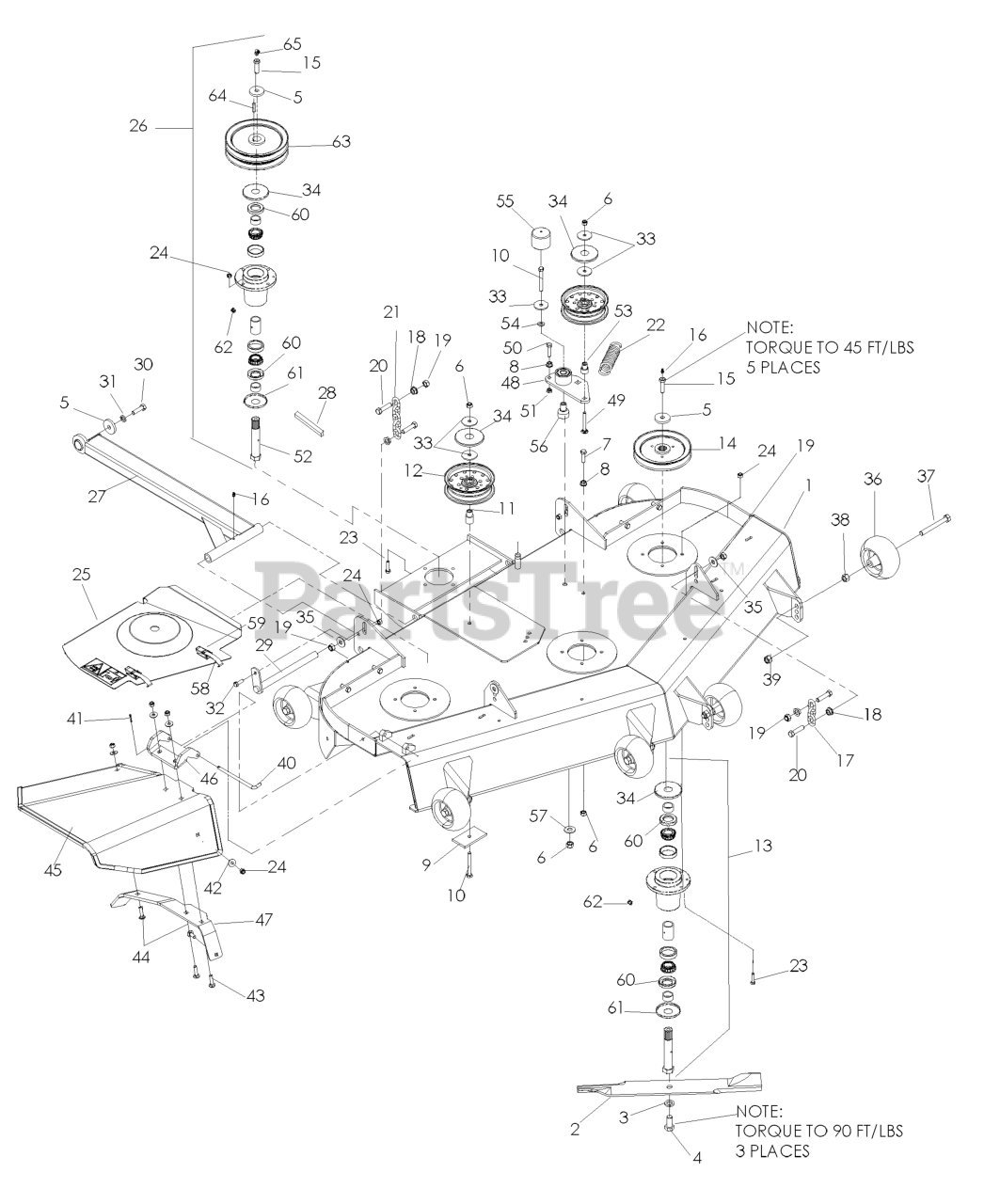

61" Deck Parts Diagram

  • Title

1

Husqvarna 539111427

DECK W/DECALS 61" TUNNEL HUS

$

$

Not available

2

Husqvarna 539101733

BLADE OEM 21" (61" DECK)

$21.99

$

In Stock, Qty 19

0

3

Husqvarna 539990333

LOCKWASHER 5/8

$1.99

$

In Stock, only 2 left!

0

4

Husqvarna 539103299

HCS 5/8F X 1 1/4

$

$

Not available

5

Husqvarna 539106504

SPINDLE WASHER

$

$

Not available

6

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.49

$

In Stock, Qty 20+

0

7

Husqvarna 539976941

HCS 3/8C X 1 1/4 GR5

$4.99

$

In Stock, only 1 left!

0

8

Husqvarna 539990613

NUT 3/8C WHIZ

$

$

Not available

9

Husqvarna 539103303

SUPPORT PLATE
(Superseded to 539106504)

$

$

Not available

10

Husqvarna 539101341

HCS 3/8C X 3

$5.99

$

In Stock, Qty 18

0

11

Husqvarna 539103295

IDLER BUSHING

$17.99

$

In Stock, Qty 18

0

12

Husqvarna 539103257

IDLER PULLEY

$56.99

$

In Stock, Qty 20+

0

13

Husqvarna 539112934

HOUSING ASM, 52/61
(Superseded to 966956101)

$159.99

$

In Stock, Qty 20+

0

14

Husqvarna 539112125

PULLEY, 61

$43.99

$

In Stock, only 3 left!

0

15

Husqvarna 539112120

HCS 7/16-20 GD 8 SPEC

$31.99

$

In Stock, only 1 left!

0

16

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

17

Husqvarna 539109693

LIFT CHAIN - 3 LINK

$

$

Not available

18

Husqvarna 539102582

NUT 7/16C WHIZ

$

$

Not available

19

Husqvarna 539119124

7/16-14 HEX NUT W/NYL RING ZD
(Superseded to 595901901)

$3.49

$

In Stock, Qty 8

0

20

Husqvarna 539108073

HCS 7/16 - 14 X 1 3/4
(Superseded to 596438501)

$3.49

$

In Stock, only 4 left!

0

21

Husqvarna 539102641

LIFT CHAIN
(Superseded to 594722002)

$4.99

$

In Stock, Qty 20+

0

22

Husqvarna 539130690

SPRING

$11.99

$

In Stock, only 2 left!

0

23

Husqvarna 539990627

HCS 5/16C X 1 1/4

$4.99

$

In Stock, only 2 left!

0

24

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.49

$

In Stock, Qty 20+

0

25

Husqvarna 539109493

61 BELT SHIELD ASM - RH

$

$

Not available

Husqvarna 539109494

61 BELT SHIELD ASM - LH

$

$

Not available

26

Husqvarna 539112263

BAM L44 JACKSHAFT ASM LOWER

$

$

Not available

27

Husqvarna 539107751

STRUT WELDMT, L.H.

$

$

Not available

28

Husqvarna 539106340

BELT, DECK

$

$

Not available

29

Husqvarna 539102619

PIVOT PIN

$56.99

$

In Stock, only 1 left!

0

30

Husqvarna 539100141

HCS 7/16F X 1 1/2

$

$

Not available

31

Husqvarna 539990247

WASHER 7/16 LOCK
(Superseded to 596238901)

$3.49

$

In Stock, only 1 left!

0

32

Husqvarna 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539111897

WASHER, 3/8 SPEC

$

$

Not available

34

Husqvarna 539108450

TOP DUST CAP

$5.99

$

In Stock, Qty 17

0

35

Husqvarna 539104864

WASHER 7/16 FLAT ZD
(Superseded to 596437601)

$3.49

$

In Stock, Qty 20+

0

36

Husqvarna 539107610

GAUGE WHEEL
(Superseded to 532133957)

$14.99

$

In Stock, Qty 20+

0

37

Husqvarna 539108366

HCS 1/2-13 X 4 GR 5 ZD

$6.99

$

In Stock, Qty 18

0

38

Husqvarna 539990258

NUT HEX 1/2

$4.99

$

In Stock, Qty 10

0

39

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

40

Husqvarna 539131813

PIN, CHUTE PIVOT

$

$

Not available

41

Husqvarna 539990365

RP_COTTER PIN 1/8 X 3/4
(Superseded to 596029501)

$3.49

$

In Stock, only 2 left!

0

42

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

43

Husqvarna 539102933

RHSNB 5/16-18 X 1-1/2 GR 5 ZD
(Superseded to 596030801)

$4.99

$

Usually ships in 3-10 days

0

44

Husqvarna 539100472

BOLT, CARRIAGE 5/16X1-1/4
(Superseded to 596671401)

$4.99

$

In Stock, Qty 16

0

45

Husqvarna 539130779

CHUTE, RUBBER DISCHARGE 52/61"

$125.99

$

Usually ships in 3-10 days

0

46

Husqvarna 539130923

PIVOT BRACKET - RUBBER CHUTE

$51.99

$

Usually ships in 3-10 days

0

47

Husqvarna 539130925

BRACKET, REINF-CHUTE

$193.99

$

Usually ships in 3-10 days

0

48

Husqvarna 539130391

ARM-IDLER W/BRG

$

$

Not available

49

Husqvarna 539130235

RHSNB 3/8-16 X 2.75

$

$

Not available

50

Husqvarna 539107042

HCS 3/8-16 X 1-1/2

$3.49

$

In Stock, only 4 left!

0

51

Husqvarna 539109332

NUT 3/8-16 HEX JAM
(Superseded to 596433501)

$3.49

$

In Stock, Qty 10

0

52

Husqvarna 539108767

JACKSHAFT SPINDLE

$

$

Not available

53

Husqvarna 539130242

BUSHING, IDLER

$3.49

$

In Stock, only 2 left!

0

54

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.49

$

In Stock, Qty 20+

0

55

Husqvarna 539114823

CAP, VINYL

$

$

Not available

56

Husqvarna 539130205

PIVOT, BEARING

$4.99

$

In Stock, Qty 10

0

57

Husqvarna 539990517

WASHER 3/8 FLAT
(Superseded to 596433701)

$3.49

$

In Stock, Qty 20+

0

58

Husqvarna 539109660

DRAW LATCH

$

$

Not available

59

Husqvarna 539110740

RIVET, BLIND, 5/32 DIA

$

$

Not available

60

Husqvarna 539108754

SHAFT SEAL

$7.99

$

In Stock, Qty 17

0

61

Husqvarna 539108449

BOTTOM DUST CAP

$4.99

$

In Stock, Qty 15

0

62

Husqvarna 539977326

PLUG-VENTED

$11.99

$

Usually ships in 3-10 days

0

63

Husqvarna 539106346

SHEAVE WSL

$

$

Not available

64

Husqvarna 539101995

KEY 1/4 SQ X 1 1/8

$

$

Not available

65

Husqvarna 539912758

ZERK

$

$

Not available
