BZ 6127 D BF (968999369) - Husqvarna 61" Zero-Turn Mower (2005-08) Ignition System Parts Diagram

61" Zero-Turn Mower

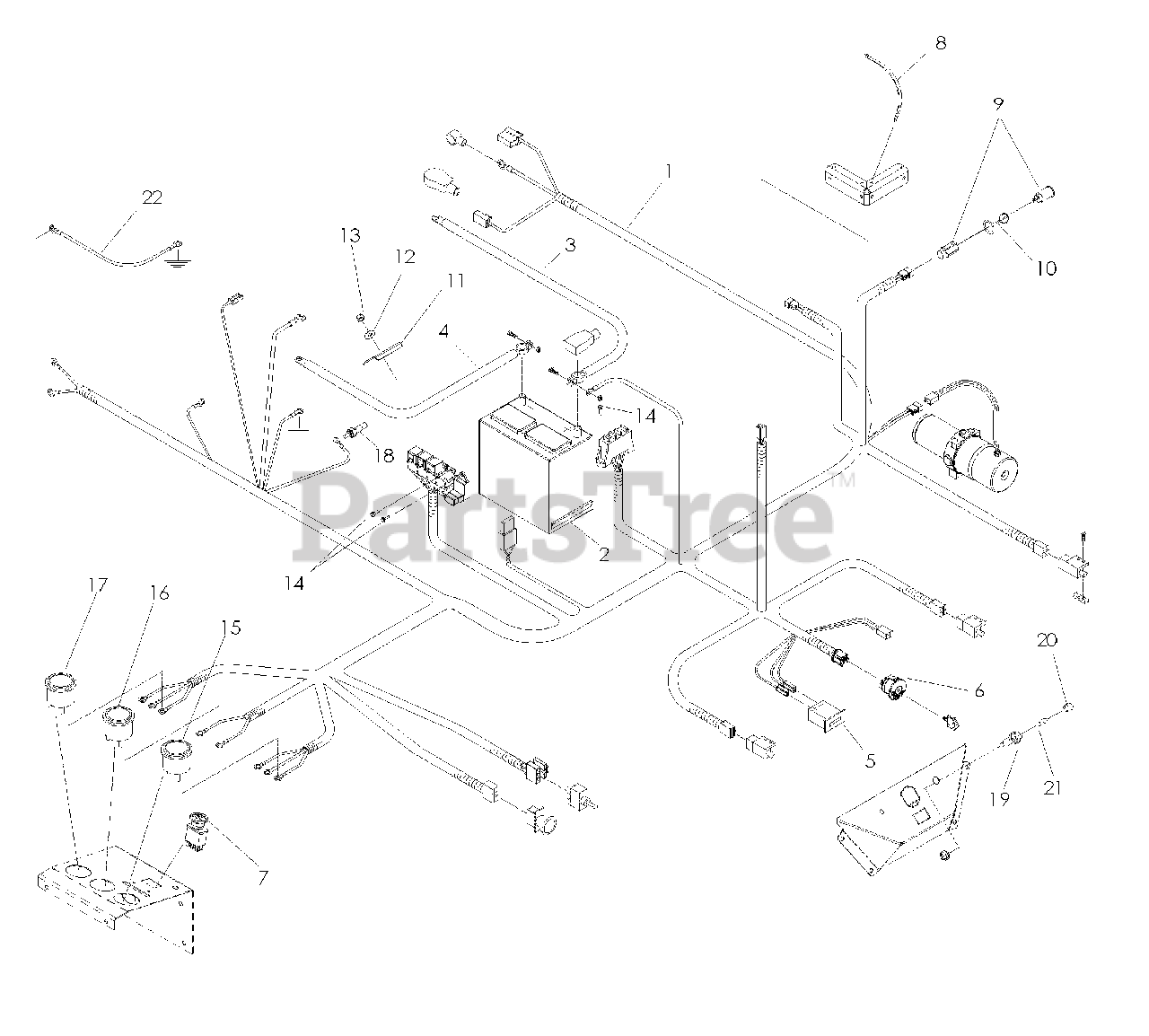

Ignition System Parts Diagram

  • Title

1

Husqvarna 539110915

HARNESS

$728.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539102423

BATTERY

$

$

Not available

3

Husqvarna 539107941

CABLE, POSITIVE

$51.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539107942

CABLE, NEGATIVE

$37.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539110074

HOUR METER
(Superseded to 576179401)

$34.99

$

In Stock, Qty 9

0

6

Husqvarna 539107541

IGNITION SWITCH
(Superseded to 532175566)

$12.99

$

In Stock, Qty 20+

0

7

Husqvarna 539131627

SWITCH, 10 AMP PTO
(Superseded to 597520401)

$100.99

$

In Stock, Qty 13

0

8

Husqvarna 539976856

WIRE TIE

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539107856

HOUSING, POWER SOURCE

$14.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539107857

CAP, POWER SOURCE

$2.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539107755

CLAMP

$8.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539990692

WASHER 5/16 STD FLT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

13

Husqvarna 539990717

NUT 5/16-18 HEX NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

14

Husqvarna 539110673

SCREW 10-12 x 3/4 THD FRM

$4.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539105246

GAUGE, TEMP

$80.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539106388

GAUGE, AMPERES

$121.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539106387

GAUGE, OIL PRESSURE

$121.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539106386

SENDER, TEMPERATURE

$36.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539107920

LAMP SOCKET

$17.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539108174

LENS

$

$

Not available

21

Husqvarna 539108175

LAMP

$42.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539109346

GROUND WIRE

$

$

Not available
