BZ 6134 D (968999214) - Husqvarna 61" Zero-Turn Mower (SN: 033600000 & Above) (2004-11) Hydraulic Assembly Parts Diagram

61" Zero-Turn Mower

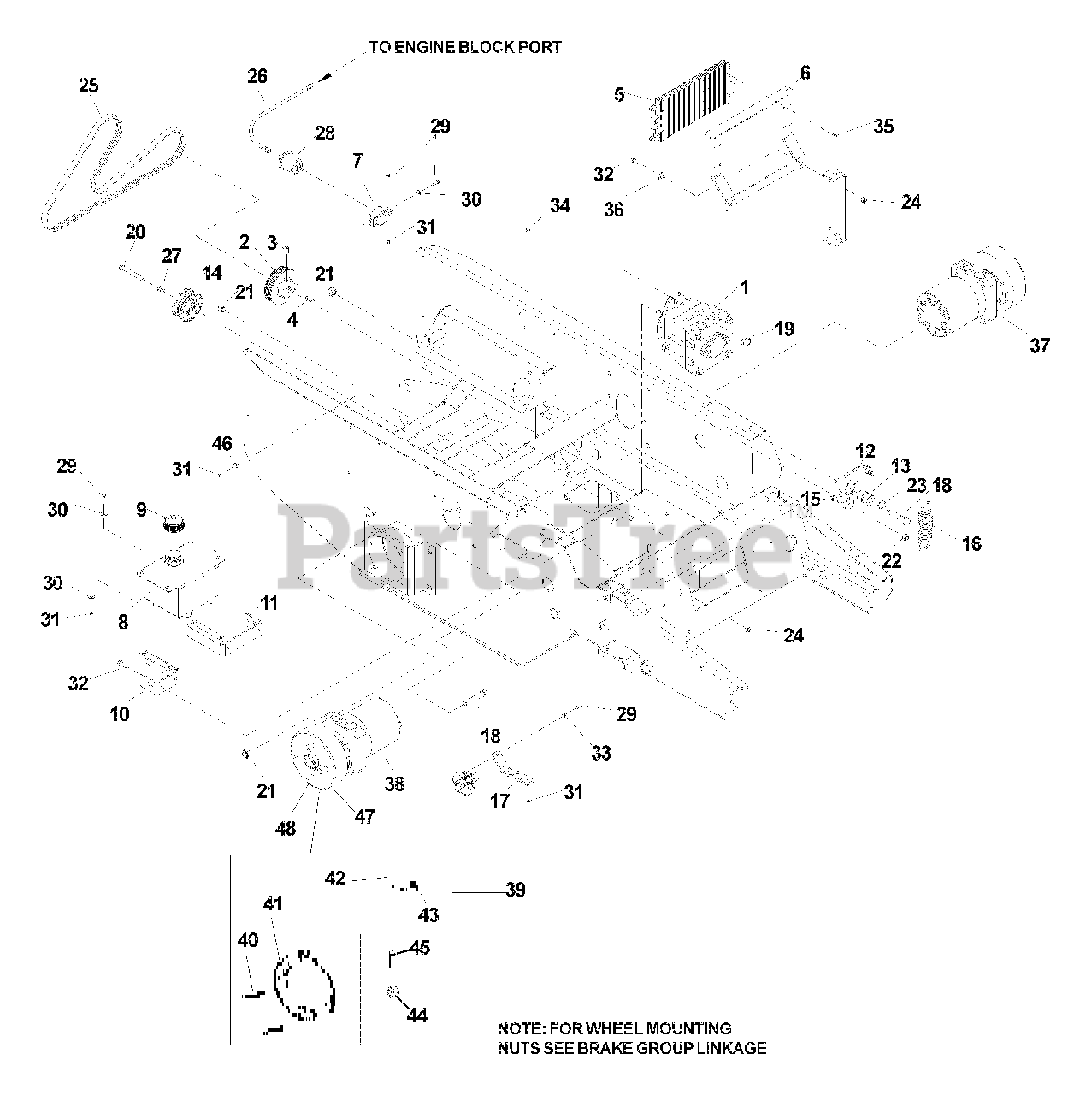

Hydraulic Assembly Parts Diagram

  • Title

1

Husqvarna 539106333

Pump

$

$

Not available

2

Husqvarna 539106334

Sheave, pump

$

$

Not available

3

Husqvarna 539102716

Setscrew, 5/16-18 x 1

$3.49

$

In Stock, only 1 left!

0

4

Husqvarna 539109178

Key, metric

$

$

Not available

5

Husqvarna 539106356

Cooler

$

$

Not available

6

Husqvarna 539107810

Mount, cooler

$

$

Not available

7

Husqvarna 539107844

Clamp, oil sender

$

$

Not available

8

Husqvarna 539105891

Reservoir

$

$

Not available

9

Husqvarna 539101202

Oil cap

$22.99

$

In Stock, only 2 left!

0

10

Husqvarna 539105026

Tank mount, right

$

$

Not available

11

Husqvarna 539105027

Tank, mount, left

$

$

Not available

12

Husqvarna 539106425

Arm

$

$

Not available

13

Husqvarna 539106417

Bushing

$

$

Not available

14

Husqvarna 539919078

Pulley, idler

$31.99

$

In Stock, only 2 left!

0

15

Husqvarna 539912758

Zerk

$

$

Not available

16

Husqvarna 539102666

Spring

$

$

Not available

17

Husqvarna 539106290

Mount, filter

$

$

Not available

18

Husqvarna 539108346

Bolt, 1/2-13 x 2 1/2

$5.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539990622

Bolt, 1/2-13 x 1 1/4, serrated head

$

$

Not available

20

Husqvarna 539101341

Bolt, 3/8-16 x 3

$5.99

$

In Stock, only 1 left!

0

21

Husqvarna 539101331

Nut, 1/2-13, nyloc
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

22

Husqvarna 539976979

Nut, 3/8-16, nyloc
(Superseded to 596240901)

$3.49

$

In Stock, Qty 20+

0

23

Husqvarna 539990550

Washer, 1/2

$

$

Not available

24

Husqvarna 539990717

Nut, 5/16-18, nyloc
(Superseded to 596583702)

$3.49

$

In Stock, Qty 20+

0

25

Husqvarna 539106341

Belt, pump

$

$

Not available

26

Husqvarna 539108053

Hose

$

$

Not available

27

Husqvarna 539990122

Washer, 3/8, SAE
(Superseded to 596565301)

$3.49

$

In Stock, Qty 20+

0

28

Husqvarna 539106382

Sender, oil pressure

$

$

Not available

29

Husqvarna 539990580

Bolt, 1/4-20 x 3/4
(Superseded to 596230901)

$3.49

$

Usually ships in 3-10 days

0

30

Husqvarna 539990598

Washer, 1/4
(Superseded to 597338501)

$17.99

$

In Stock, Qty 20+

0

31

Husqvarna 539976978

Nut, 1/4-20, nyloc
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

32

Husqvarna 539990209

Bolt, 5/16-18 x 1

$1.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539990052

Lockwasher, 1/4
(Superseded to 596564801)

$3.49

$

Usually ships in 3-10 days

0

34

Husqvarna 539990548

Bolt, 1/4-20 x 1

$3.49

$

In Stock, only 1 left!

0

35

Husqvarna 539110673

Screw, #10 -12 x 3/4
(Superseded to 596917001)

$3.49

$

In Stock, only 2 left!

0

36

Husqvarna 539990692

Washer, 5/16
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

37

Husqvarna 539106266

Wheel motor, left

$

$

Not available

38

Husqvarna 539106267

Wheel motor, right

$

$

Not available

39

Husqvarna 539111806

Shoe assembly, complete,
(Superseded to 539108524)

Note: w/backing plate & items 40, 41, 42, 43

$

$

Not available

40

Husqvarna 539108523

Return spring

$

$

Not available

41

Husqvarna 539108524

Shoe assembly

$

$

Not available

42

Husqvarna 539108525

Lever

$

$

Not available

43

Husqvarna 539108526

Clip

$

$

Not available

44

Husqvarna 539105277

Castle nut

$10.99

$

In Stock, only 3 left!

0

45

Husqvarna 539990297

Cotter pin

$

$

Not available

46

Husqvarna 539109347

Washer, 1/4, external star

$

$

Not available

47

Husqvarna 539111807

Brake drum w/studs

$

$

Not available

48

Husqvarna 539110039

Wheel stud, 1/2-20 x 1 3/8, Gr8

$

$

Not available
