BZ 6134 D (968999214) - Husqvarna 61" Zero-Turn Mower (SN: 033600000 & Above) (2004-11) Hydraulic Hoses And Fittings Parts Diagram

61" Zero-Turn Mower

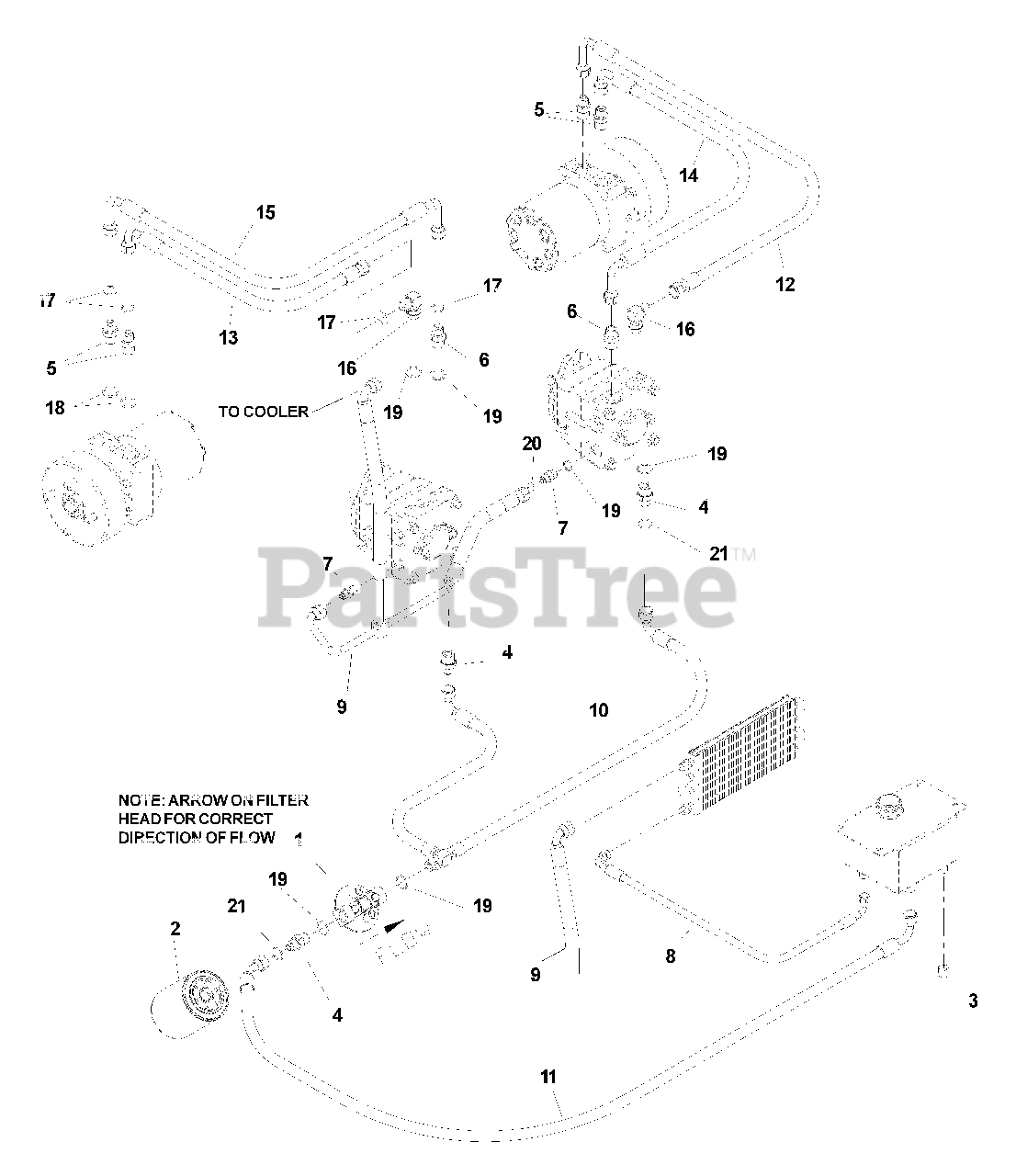

Hydraulic Hoses And Fittings Parts Diagram

  • Title

1

Husqvarna 539105892

Filter head

$

$

Not available

2

Husqvarna 539105893

Filter

$37.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539105168

Cap nut, reservoir drain

$3.99

$

In Stock, only 4 left!

0

4

Husqvarna 539101237

Straight connector

$12.99

$

In Stock, only 3 left!

0

5

Husqvarna 539106357

Fitting, wheel motors

$8.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539106358

Fitting, pumps

$15.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539106359

Fitting, pumps (return side)

$6.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539106360

Hose, cooler-reservoir

$24.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539110930

Hose, T, pumps-cooler

$121.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539106362

Hose, T, filter, out-pumps

$103.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539106363

Hose, reservior-filter, in

$46.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539106364

Hose, LL pump-LR mtr

$84.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539106365

Hose, RR pump-RF mtr

$78.99

$

In Stock, only 1 left!

0

14

Husqvarna 539106366

Hose, LR pump-LF mtr

$72.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539106367

Hose, RL pump-RR mtr

$109.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539106370

Fitting

$24.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539108983

O-Ring

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539103114

O-Ring

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539103115

O-Ring, SAE J126 Port

$

$

Not available

20

Husqvarna 539103118

O-Ring

$

$

Not available

21

Husqvarna 539103119

O-Ring

$4.99

$

In Stock, only 3 left!

0
