BZ 7234 D (968999264) - Husqvarna 72" Zero-Turn Mower (2005-08) Engine Muffler, Air Filter, Radiator Parts Diagram

72" Zero-Turn Mower

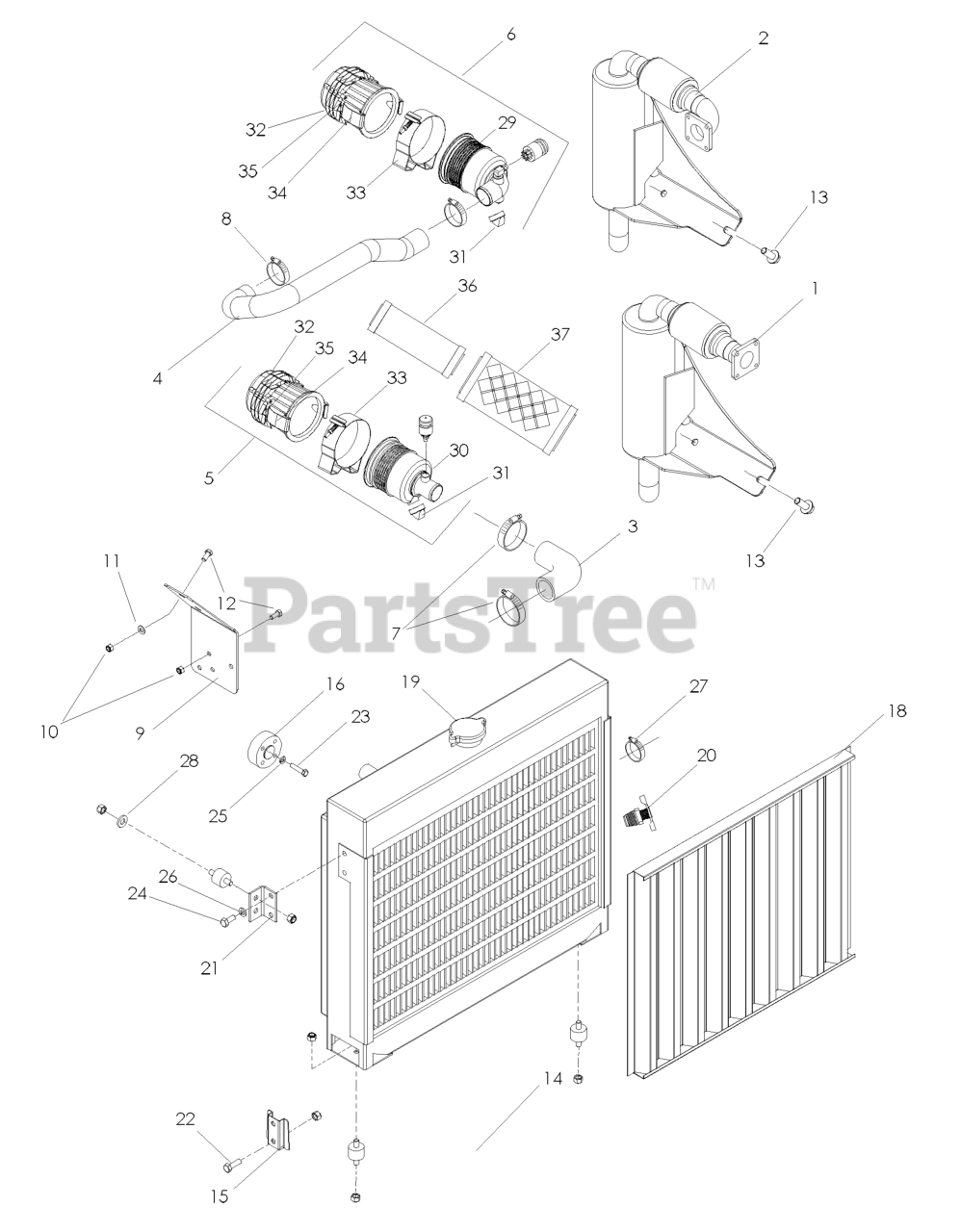

Engine Muffler, Air Filter, Radiator Parts Diagram

  • Title

1

Husqvarna 539111834

MUFFLER TURBO

$

$

Not available

2

Husqvarna 539111835

MUFFLER NA

$

$

Not available

3

Husqvarna 539106381

AIR FILTER HOSE

$

$

Not available

4

Husqvarna 539107860

AIR FILTER HOSE

$

$

Not available

5

Husqvarna 539106315

AIR FILTER ASSY

$

$

Not available

6

Husqvarna 539106376

AIR FILTER ASSY - NON-TURBO

$

$

Not available

7

Husqvarna 539106383

CLAMP, AIR HOSE

$

$

Not available

8

Husqvarna 539106384

CLAMP

$

$

Not available

9

Husqvarna 539107841

MOUNTING BRACKET

$

$

Not available

10

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.49

$

In Stock, Qty 20+

0

11

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

12

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

13

Husqvarna 539990622

HCS 1/2C X 1 1/4 SERRATED HEAD

$

$

Not available

14

Husqvarna 539106310

ISOLATOR

$

$

Not available

15

Husqvarna 539107855

MOUNTING BRACKET

$

$

Not available

16

Husqvarna 539107995

SPACER FAN

$

$

Not available

16

Husqvarna 539106308

FAN SPACER

$

$

Not available

17

Husqvarna 539106319

RADIATOR ASSY

$

$

Not available

17

Husqvarna 539106314

RADIATOR ASSY

$

$

Not available

18

Husqvarna 539106318

DEBRIS GUARD

$

$

Not available

19

Husqvarna 539106320

RADIATOR CAP

$

$

Not available

20

Husqvarna 539106322

DRAIN

$

$

Not available

21

Husqvarna 539106297

BRACKET ISO

$

$

Not available

22

Husqvarna 539990209

HCS 5/16C X 1
(Superseded to 596580801)

$3.49

$

In Stock, Qty 19

0

23

Husqvarna 539300599

BOLT

$

$

Not available

23

Husqvarna 539106307

BOLT - M6-1.0 X 30MM GR 8

$

$

Not available

24

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

25

Husqvarna 539990052

LOCKWASHER 1/4"
(Superseded to 596564801)

$3.49

$

Usually ships in 3-10 days

0

26

Husqvarna 539990187

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.49

$

In Stock, Qty 20+

0

27

Husqvarna 539106321

CLAMP

$

$

Not available

28

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.49

$

In Stock, Qty 20+

0

29

Husqvarna 539108470

BODY - 90 DEG

$

$

Not available

30

Husqvarna 539108471

BODY, STRAIGHT

$

$

Not available

31

Husqvarna 539108472

NLA S-DRAIN

$

$

Not available

32

Husqvarna 539108473

PRECLEANER ASM

$

$

Not available

33

Husqvarna 539108474

MOUNTING BRACKET

$

$

Not available

34

Husqvarna 539108475

CLAMP

$

$

Not available

35

Husqvarna 539108476

HINGE

$

$

Not available

36

Husqvarna 539106377

SAFETY ELEMENT

$

$

Not available

37

Husqvarna 539106313

AIR FILTER

$

$

Not available

37

Husqvarna 539106326

LOWER HOSE

Note: NOT SHOWN

$

$

Not available

37

Husqvarna 539106325

TOP HOSE

Note: NOT SHOWN

$

$

Not available
