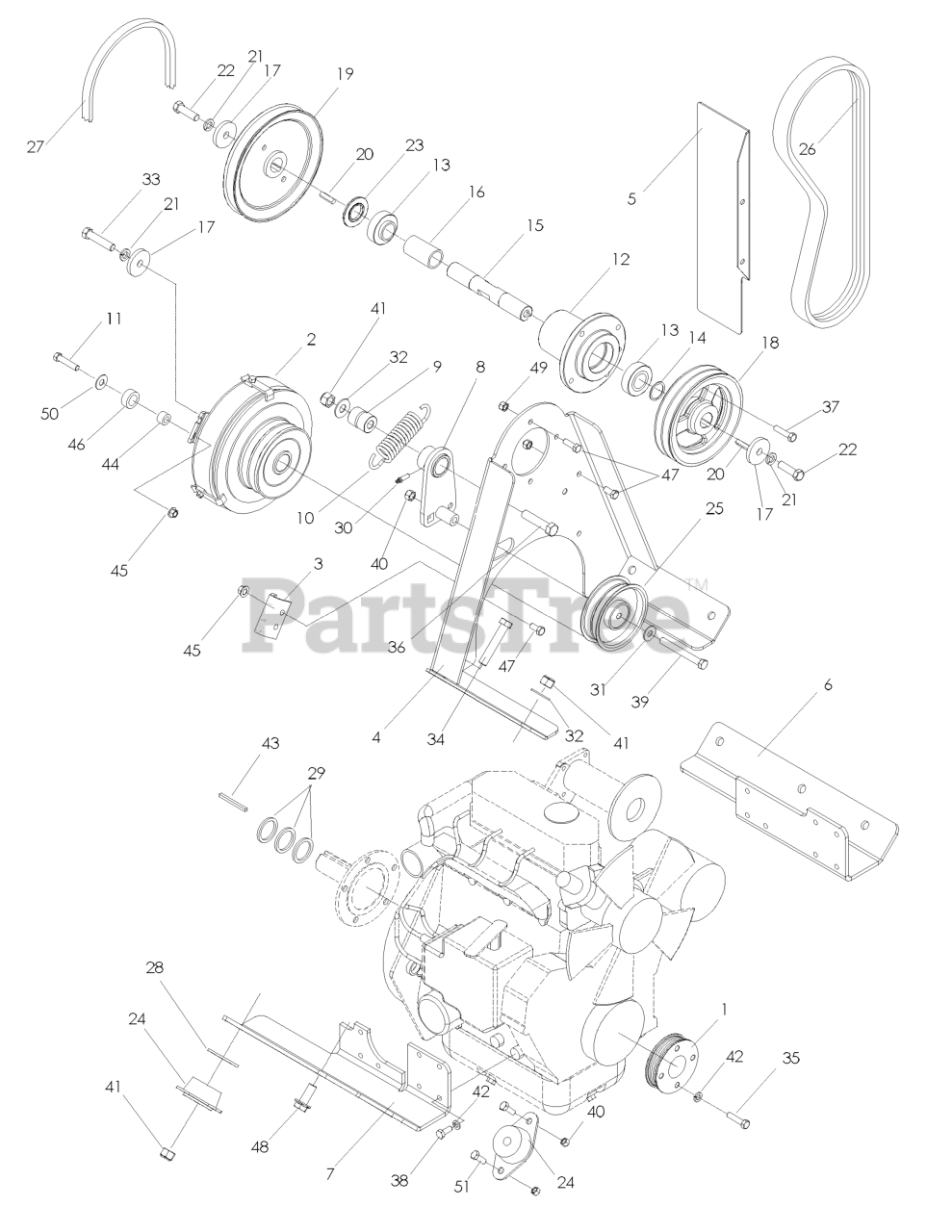

BZ 7234 D BF (968999370) - Husqvarna 72" Zero-Turn Mower (2005-08) Engine Parts Diagram

72" Zero-Turn Mower

Engine Parts Diagram

  • Title

1

Husqvarna 539106335

ENGINE SHEAVE

$

$

Not available

2

Husqvarna 539110668

ELECTRIC CLUTCH

$

$

Not available

3

Husqvarna 539110651

RESTRAINT

$

$

Not available

4

Husqvarna 539106306

JACKSHAFT MOUNT WELDMENT

$

$

Not available

5

Husqvarna 539107864

HEAT SHIELD

$

$

Not available

6

Husqvarna 539107861

ENGINE MOUNT-LT

$

$

Not available

7

Husqvarna 539107862

ENGINE MOUNT-RT

$

$

Not available

8

Husqvarna 539106422

ARM WELDMENT

$

$

Not available

9

Husqvarna 539106417

BUSHING

$

$

Not available

10

Husqvarna 539110655

SPRING

$

$

Not available

11

Husqvarna 539990627

HCS 5/16C X 1 1/4

$4.99

$

In Stock, only 1 left!

0

12

Husqvarna 539104852

HOUSING, DIE CAST

$74.99

$

In Stock, only 1 left!

0

13

Husqvarna 539115279

BEARING-ECC LOCK W/COLLAR

$35.99

$

In Stock, only 1 left!

0

14

Husqvarna 539102244

BUSHING.MACHINE.18.GAUGE

$

$

Not available

15

Husqvarna 539106344

SPINDLE

$79.99

$

In Stock, only 3 left!

0

16

Husqvarna 539102676

SPACER

$10.99

$

In Stock, Qty 14

0

17

Husqvarna 539106504

SPINDLE WASHER
(Superseded to 596770301)

$5.99

$

In Stock, Qty 9

0

18

Husqvarna 539106347

SHEAVE

$

$

Not available

19

Husqvarna 539105485

PULLEY

$85.99

$

In Stock, only 1 left!

0

20

Husqvarna 539101995

KEY 1/4 SQ X 1 1/8

$

$

Not available

21

Husqvarna 539990247

WASHER 7/16 LOCK
(Superseded to 596238901)

$3.49

$

In Stock, only 1 left!

0

22

Husqvarna 539100141

HCS 7/16F X 1 1/2

$

$

Not available

23

Husqvarna 539107272

COMBO SPACER

$3.49

$

In Stock, Qty 20+

0

24

Husqvarna 539106291

ISO MOUNT

Note: (ENGINE)

$

$

Not available

25

Husqvarna 539111567

IDLER

$

$

Not available

26

Husqvarna 539111582

BELT, PRIMARY BZ

$

$

Not available

27

Husqvarna 539106339

ENGINE, BELT MULE

$

$

Not available

28

Husqvarna 539111844

WASHER, HEAVY

$

$

Not available

29

Husqvarna 539108052

BUSH 1-1/8 X 10 GA ZD

$

$

Not available

30

Husqvarna 539104761

GREASE ZERK LONG

$6.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.49

$

In Stock, Qty 20+

0

32

Husqvarna 539990550

WASHER 1/2 FLAT
(Superseded to 595316401)

$3.49

$

In Stock, Qty 20+

0

33

Husqvarna 539991120

BOLT 7/16F X 2 1/2

$6.99

$

In Stock, Qty 7

0

34

Husqvarna 539101332

HCS 1/2C X 2 3/4

$5.99

$

In Stock, only 2 left!

0

35

Husqvarna 539977692

HTB M8-1.125 X 25MM

$

$

Not available

36

Husqvarna 539108346

HEX SCREW 1/2-13 X 2.5" GR 5

$5.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539990209

HCS 5/16C X 1
(Superseded to 596580801)

$3.49

$

In Stock, Qty 19

0

38

Husqvarna 539300600

BOLT

$

$

Not available

39

Husqvarna 539108271

HCS 3/8-16 X 3-1/2 GR5 ZD

$4.99

$

In Stock, only 1 left!

0

40

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.49

$

In Stock, Qty 20+

0

41

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

42

Husqvarna 539990187

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.49

$

In Stock, Qty 20+

0

43

Husqvarna 539917033

KEY 1/4 SQ X 2-1/2

$

$

Not available

44

Husqvarna 539110900

BUSHING

$

$

Not available

45

Husqvarna 539990585

NUT 5/16C WHIZ
(Superseded to 596039201)

$3.49

$

In Stock, Qty 20+

0

46

Husqvarna 539110901

SLEEVE

$

$

Not available

47

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

48

Husqvarna 539990622

HCS 1/2C X 1 1/4 SERRATED HEAD

$

$

Not available

49

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.49

$

In Stock, Qty 20+

0

50

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

51

Husqvarna 539990563

HCS 3/8-16X1.GRD.5.ZD
(Superseded to 596564401)

$4.99

$

In Stock, Qty 15

0
