BZE 6127 D - Husqvarna 61" Zero-Turn Mower (SN: 033600000 & Above) (2005-02) HYDRAULIC PUMP - MOTOR Parts Diagram

61" Zero-Turn Mower

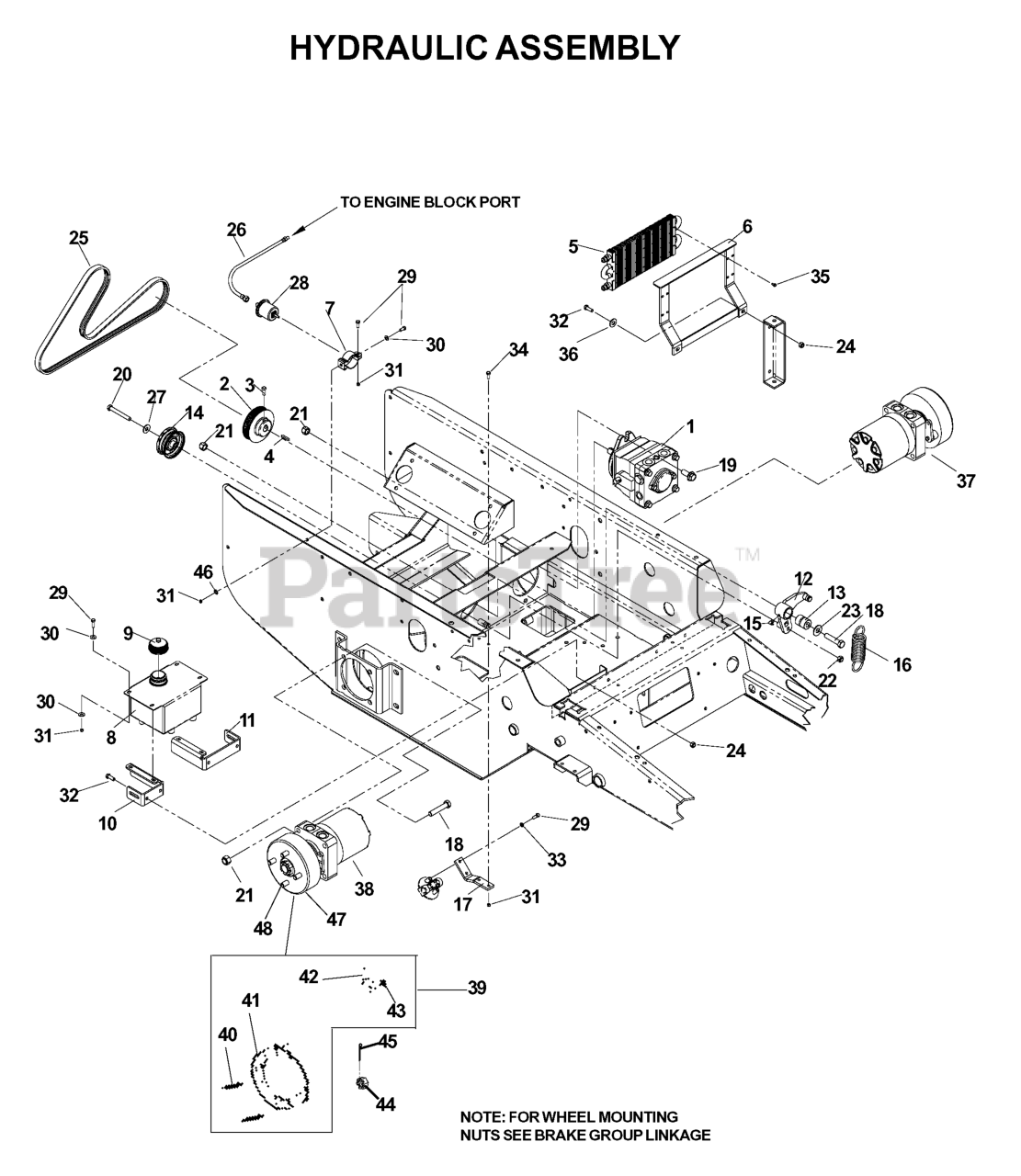

HYDRAULIC PUMP - MOTOR Parts Diagram

  • Title

42

Husqvarna 539108525

LEVER

$

$

Not available

10

Husqvarna 539105026

TANK MOUNT RT

$

$

Not available

23

Husqvarna 539990550

WASHER 1/2 FLAT

$

$

Not available

27

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.49

$

In Stock, Qty 20+

0

34

Husqvarna 539990548

HCS 1/4 X 1

$3.49

$

In Stock, only 1 left!

0

21

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

44

Husqvarna 539105277

CASTLE-NUT

$10.99

$

In Stock, only 3 left!

0

5

Husqvarna 539106356

COOLER

$

$

Not available

43

Husqvarna 539108526

CLIP

$

$

Not available

31

Husqvarna 539976978

NUT.1/4-20.HEX.NYLOC.ZD
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

28

Husqvarna 539106382

SENDER,OIL PRESS

$

$

Not available

18

Husqvarna 539108346

HEX SCREW 1/2-13 X 2.5" GR 5

$5.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539108053

HOSE

$

$

Not available

16

Husqvarna 539102666

SPRING

$

$

Not available

8

Husqvarna 539105891

TANK, OIL = PAINTED

$

$

Not available

7

Husqvarna 539107844

CLAMP-OIL SENDER

$

$

Not available

30

Husqvarna 539990598

WASHER 1/4 FLAT
(Superseded to 597338501)

$17.99

$

In Stock, Qty 20+

0

32

Husqvarna 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539107810

COOLER WLDMT MT

$

$

Not available

9

Husqvarna 539101202

HYDRAULIC CAP

$22.99

$

In Stock, only 2 left!

0

3

Husqvarna 539102716

SCREW 5/16C X 1 SQ HEAD SET

$3.49

$

In Stock, only 1 left!

0

20

Husqvarna 539101341

HCS 3/8C X 3

$5.99

$

In Stock, only 1 left!

0

45

Husqvarna 539990297

COTTER PIN

$

$

Not available

1

Husqvarna 539106333

HG_PUMP CCW RH

$

$

Not available

37

Husqvarna 539106266

WHEEL MTR ASM

$

$

Not available

38

Husqvarna 539106267

WHEEL MTR ASM, RT

$

$

Not available

14

Husqvarna 539919078

IDLER PULLEY

$31.99

$

In Stock, only 2 left!

0

4

Husqvarna 539109178

KEY, METRIC

$

$

Not available

33

Husqvarna 539990052

LOCKWASHER 1/4"
(Superseded to 596564801)

$3.49

$

Usually ships in 3-10 days

0

29

Husqvarna 539990580

HCS 1/4C X 3/4 HCS
(Superseded to 596230901)

$3.49

$

Usually ships in 3-10 days

0

13

Husqvarna 539106417

BUSHING

$

$

Not available

47

Husqvarna 539111807

DRUM

$

$

Not available

2

Husqvarna 539106334

PUMP SHEAVE

$

$

Not available

11

Husqvarna 539105027

TANK MOUNT LT

$

$

Not available

39

Husqvarna 539111806

SHOE ASM.
(Superseded to 539108524)

$

$

Not available

48

Husqvarna 539110039

WHEEL STUD 1/2-20X1-3/8 GR8 ZN

$

$

Not available

17

Husqvarna 539106290

FILTER MOUNT - PAINTED

$

$

Not available

35

Husqvarna 539110673

SCR #10-12X3/4 HEX WAS HD ZD
(Superseded to 596917001)

$3.49

$

In Stock, only 2 left!

0

36

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

46

Husqvarna 539109347

WASHER 1/4 EXTLW STAR ZD

$

$

Not available

40

Husqvarna 539108523

RETURN SPRING

$

$

Not available

12

Husqvarna 539106425

ARM WELDMENT

$

$

Not available

19

Husqvarna 539990622

HCS 1/2C X 1 1/4 SERRATED HEAD

$

$

Not available

41

Husqvarna 539108524

SHOE ASSY

$

$

Not available

24

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.49

$

In Stock, Qty 20+

0

22

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.49

$

In Stock, Qty 20+

0

15

Husqvarna 539912758

ZERK

$

$

Not available

25

Husqvarna 539106341

PUMP BELT

$

$

Not available
