BZE 6134 D (968999222) - Husqvarna 61" Zero-Turn Mower (2003-06) 72"/183CM CUTTING DECK Parts Diagram

61" Zero-Turn Mower

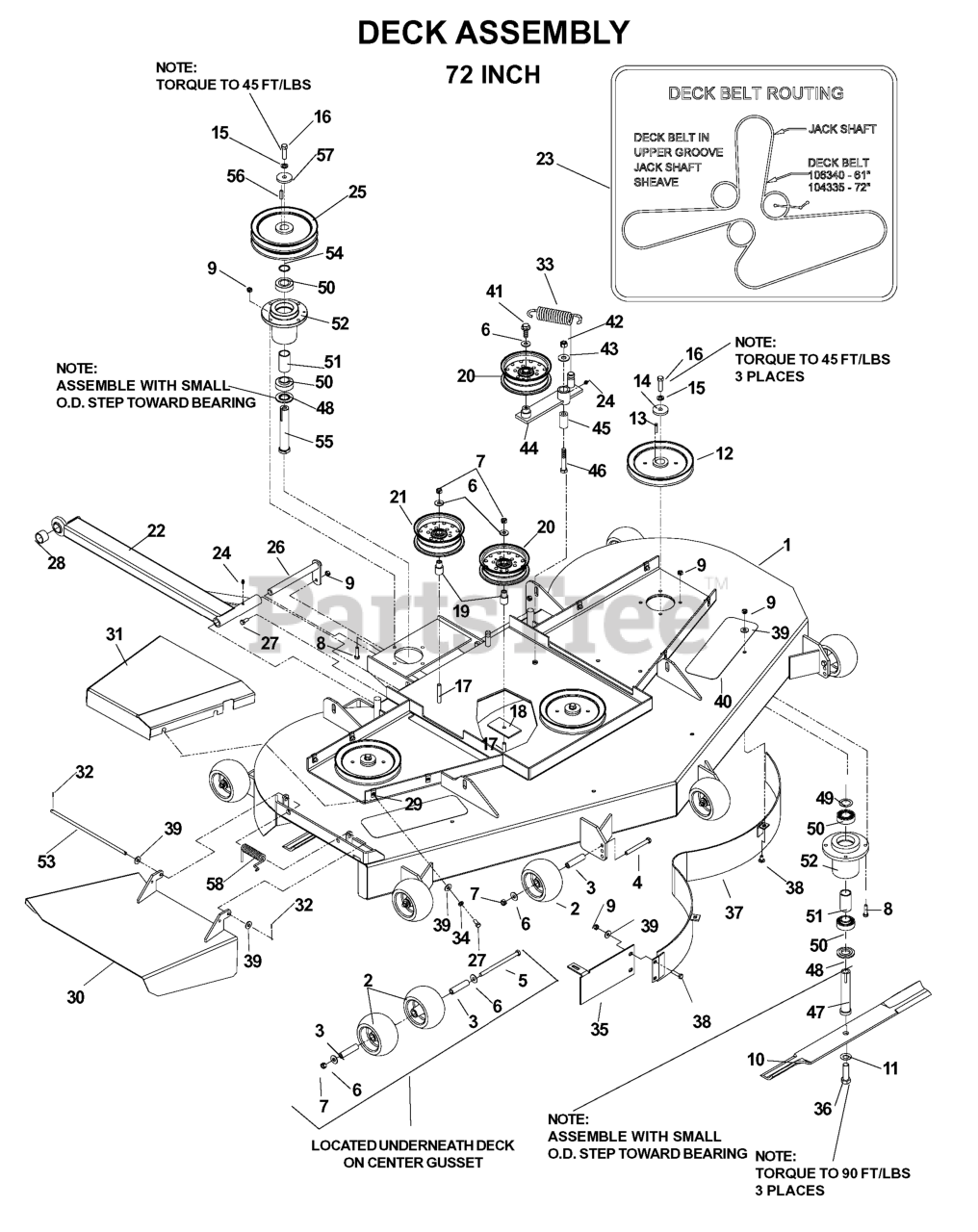

72"/183CM CUTTING DECK Parts Diagram

  • Title

9

Husqvarna 539990184

NUT 5/16C CENTERLOCK

$3.99

$

Usually ships in 3-10 days

0

539108317

Husqvarna 539108317

72 ORANGE L.H BLT SHLD
(Superseded to 539108922)

$60.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539104335

BELT, DECK
(Superseded to 522795901)

$109.99

$

In Stock, Qty 20+

0

54

Husqvarna 539102244

BUSHING.MACHINE.18.GAUGE

$4.99

$

In Stock, Qty 5

0

539107751

Husqvarna 539107751

STRUT WELDMT, L.H.

$169.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539102698

BUSHING

$

$

Not available

50

Husqvarna 539102677

BEARING
(Superseded to 539115279)

$37.99

$

In Stock, Qty 20+

0

56

Husqvarna 539101995

KEY 1/4 SQ X 1 1/8

$3.99

$

In Stock, only 2 left!

0

7

Husqvarna 539990546

NUT 3/8C CENTERBLOCK

$

$

Not available

41

Husqvarna 539990582

4CS 3/8C X 1 SERRATED HEAD

$

$

Not available

39

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

51

Husqvarna 539102676

SPACER

$13.99

$

In Stock, Qty 13

0

40

Husqvarna 539977778

ANTI-SKID PAD

$6.49

$

In Stock, only 2 left!

0

8

Husqvarna 539990627

HCS 5/16C X 1 1/4

$4.99

$

In Stock, Qty 10

0

57

Husqvarna 539106504

SPINDLE WASHER

$

$

Not available

48

Husqvarna 539107272

COMBO SPACER

$3.99

$

In Stock, Qty 10

0

55

Husqvarna 539103697

SPINDLE SHAFT

$

$

Not available

539102619

Husqvarna 539102619

PIVOT PIN

$40.99

$

In Stock, only 3 left!

0

22

Husqvarna 539107750

STRUT WELDMT - R.H

$133.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539108316

ORANGE-R.H BELT SHLD 72"
(Superseded to 539108920)

$46.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539990042

COTTER PIN

$3.99

$

Usually ships in 3-10 days

0

53

Husqvarna 539108318

PIN 5/16 X 11-1/2 PIVOT SPEC

$9.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539105480

PIN WELDMENT

$36.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539106504

SPINDLE WASHER

$

$

Not available

24

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$2.49

$

In Stock, Qty 20+

0

16

Husqvarna 539100141

HCS 7/16F X 1 1/2

$

$

Not available

10

Husqvarna 539105476

BLADE OEM - 25"

$27.99

$

In Stock, Qty 20+

0

34

Husqvarna 539990187

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, Qty 20+

0

29

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 15

0

45

Husqvarna 539103427

PIVOT BUSHING

$7.49

$

In Stock, Qty 6

0

13

Husqvarna 539101995

KEY 1/4 SQ X 1 1/8

$3.99

$

In Stock, only 2 left!

0

20

Husqvarna 539103257

IDLER PULLEY

$74.99

$

In Stock, Qty 9

0

35

Husqvarna 539105615

BAFFLE/CENTER-FLAT BLK

$54.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

6

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539990247

WASHER 7/16 LOCK

$

$

Not available

4

Husqvarna 539102754

HCS 3/8C X 3 1/2

$4.99

$

In Stock, Qty 14

0

42

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

49

Husqvarna 539102244

BUSHING.MACHINE.18.GAUGE

$4.99

$

In Stock, Qty 5

0

52

Husqvarna 539104852

HOUSING, DIE CAST

$

$

Not available

17

Husqvarna 539101341

HCS 3/8C X 3

$4.99

$

In Stock, Qty 20+

0

11

Husqvarna 539105634

BELLEVILLE SPRING WASHER

$6.49

$

Usually ships in 3-10 days

0

1

Husqvarna 539106218

DECK W/DECALS 72" HUS

$

$

Not available

28

Husqvarna 539106401

SPACER, STRUT

$12.99

$

Usually ships in 3-10 days

0

58

Husqvarna 539105822

SPRING, TORTION

$17.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539105633

HEX SCREW-5/8F X 2 GR8

$3.99

$

In Stock, only 2 left!

0

18

Husqvarna 539103303

SUPPORT PLATE
(Superseded to 539106504)

$

$

Not available

5

Husqvarna 539105422

BOLT 3/8 X 6" GRD 8

$4.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539103295

IDLER BUSHING

$9.99

$

In Stock, Qty 17

0

12

Husqvarna 539105485

PULLEY

$54.99

$

Usually ships in 3-10 days

0

43

Husqvarna 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539106346

SHEAVE WSL

$

$

Not available

33

Husqvarna 539105192

DECK SPRING

$

$

Not available

47

Husqvarna 539105501

SPINDLE SHAFT

$

$

Not available

37

Husqvarna 539105614

BAFFLE/CENTER-CURVED

$157.99

$

Usually ships in 3-10 days

0

44

Husqvarna 539103230

IDLER ARM

$

$

Not available

38

Husqvarna 539990799

CARRIAGE BOLT 5/16C X 5/8"
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

30

Husqvarna 539108270

DISCHARGE CHUTE

$94.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539102643

ANTI-SCALP ROLLER

$

$

Not available

21

Husqvarna 539103258

IDLER PULLEY (TALL)

$53.99

$

In Stock, Qty 8

0

46

Husqvarna 539103433

HCS 1/2C X 3 1/4

$4.99

$

In Stock, Qty 11

0
