C 1200 (UT-20809) - Homelite Trimmer/Brush Cutter Shaft - Spool & String - Grass Deflector Parts Diagram

Trimmer/Brush Cutter

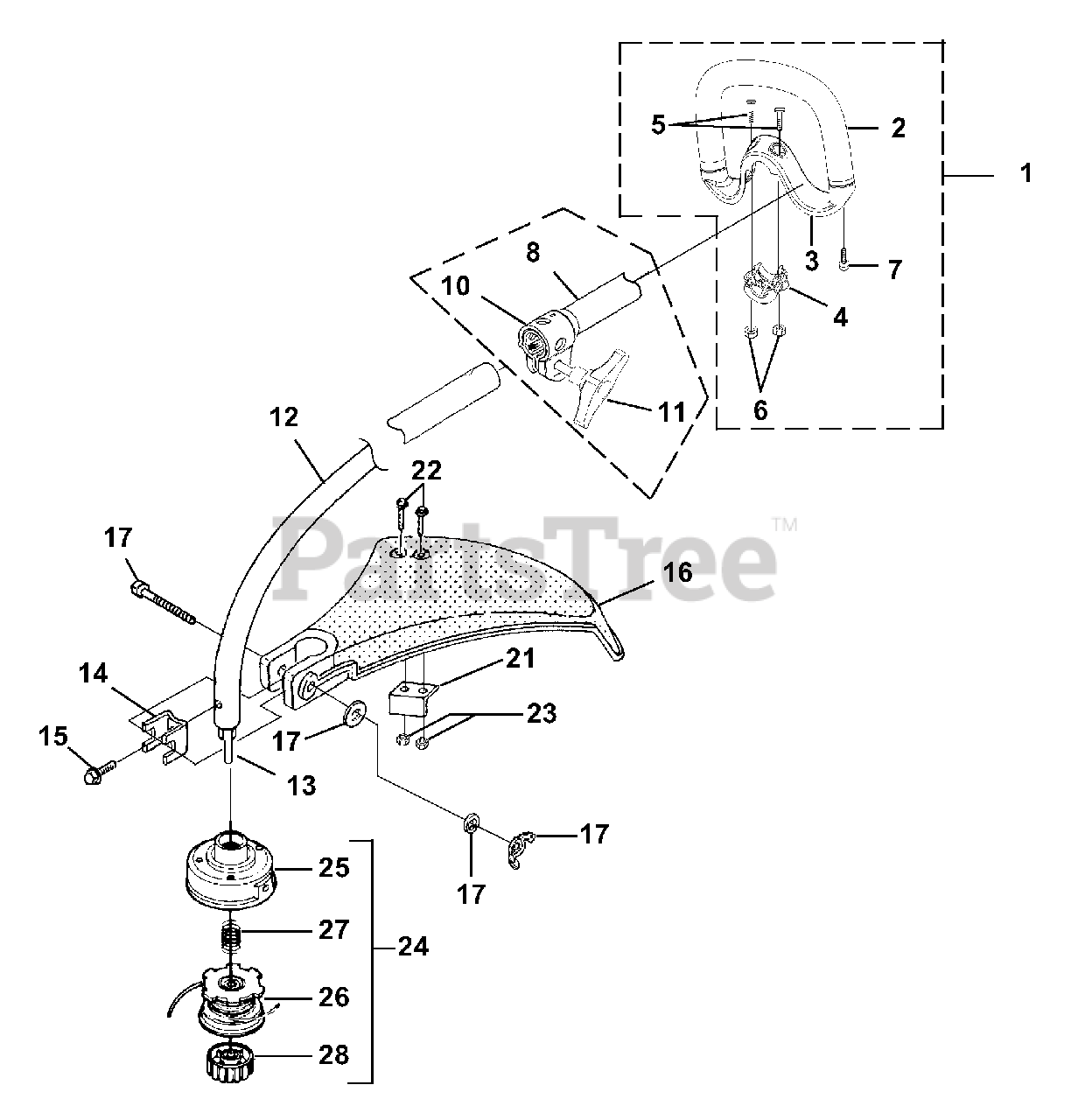

Shaft - Spool & String - Grass Deflector Parts Diagram

  • Title

1

Homelite UP06948A

HANDLE-Complete
(Superseded to UP06948)

Note: Includes Item 1-7

$

$

Not available

2

Homelite PS04069

HANDLE W/Grip
(Superseded to 984439001)

$10.99

$

Usually ships in 3-7 days

0

3

Homelite PS04070

CLAMP - "M"
(Superseded to 518038001)

$2.49

$

Usually ships in 3-7 days

0

4

Homelite PS04072

CLAMP-Assist Handle

$2.99

$

In Stock, only 2 left!

0

5

Homelite PS04159

SCREW

$1.49

$

In Stock, only 3 left!

0

6

Homelite 81068

NUT

$

$

Not available

7

Homelite 82620

SCREW

$1.49

$

In Stock, Qty 5

0

8

Homelite PA01527A

DRIVESHAFT ASSY. (Upper)
(Superseded to UP08647A)

$

$

Not available

10

Homelite UP03839A

COUPLER ASSEMBLY

Note: Includes Item 10-11

$

$

Not available

11

Homelite PS02071

KNOB

$

$

Not available

12

Homelite UP03851A

DRIVESHAFT HOUSING (Lower)
(Superseded to 308038001)

Note: Includes Item 12-15

$19.99

$

Usually ships in 3-7 days

0

13

Homelite 07674

SHAFT-Flex
(Superseded to A07673)

$35.99

$

Usually ships in 3-7 days

0

14

Homelite 07928

CLAMP
(Superseded to UP04137)

$

$

Not available

15

Homelite PS05243

SCREW-Sems Hex (10-24 X 3/8")

$

$

Not available

16

Homelite UP06710A

DEFLECTOR & BLADE KIT (55 Deg.)
(Superseded to T308744001)

Note: Includes Item 16-23

$

$

Not available

17

Homelite PA00249

SCREW-Cap Hex Hd. (1/4-20 X 2")

$

$

Not available

21

Homelite UP04119

BLADE-Cut-Off

Note: Includes Item 21-23

$

$

Not available

22

Homelite 82531

SCREW-Mech. Hex Hd. (10-24 X 7/8")
(Superseded to 660616001)

$

$

Not available

23

Homelite 81208

NUT-Hex (10-24)

$

$

Not available

24

Homelite UP06950A

STRINGHEAD-Complete (.095")
(Superseded to DA04591AA)

Note: Includes Item 24-28

$60.99

$

In Stock, only 1 left!

0

25

Homelite A98231A

HOUSING & EYELET (Dual Line)
(Superseded to 099068001005)

$

$

Not available

26

Homelite UP06762A

SPOOL & STRING (.095")
(Superseded to 000998265)

Note: Includes Item 26-27

$60.99

$

In Stock, only 1 left!

0

27

Homelite 06713

SPRING-Compression

$1.49

$

In Stock, only 4 left!

0

28

Homelite A98866A

RETAINER-Spool (R.H. Thread, Black)
(Superseded to 308042002)

$

$

Not available
