C 20H42 YT (960420026-00) - Poulan Lawn Tractor (2006-01) Electrical Parts Diagram

Lawn Tractor

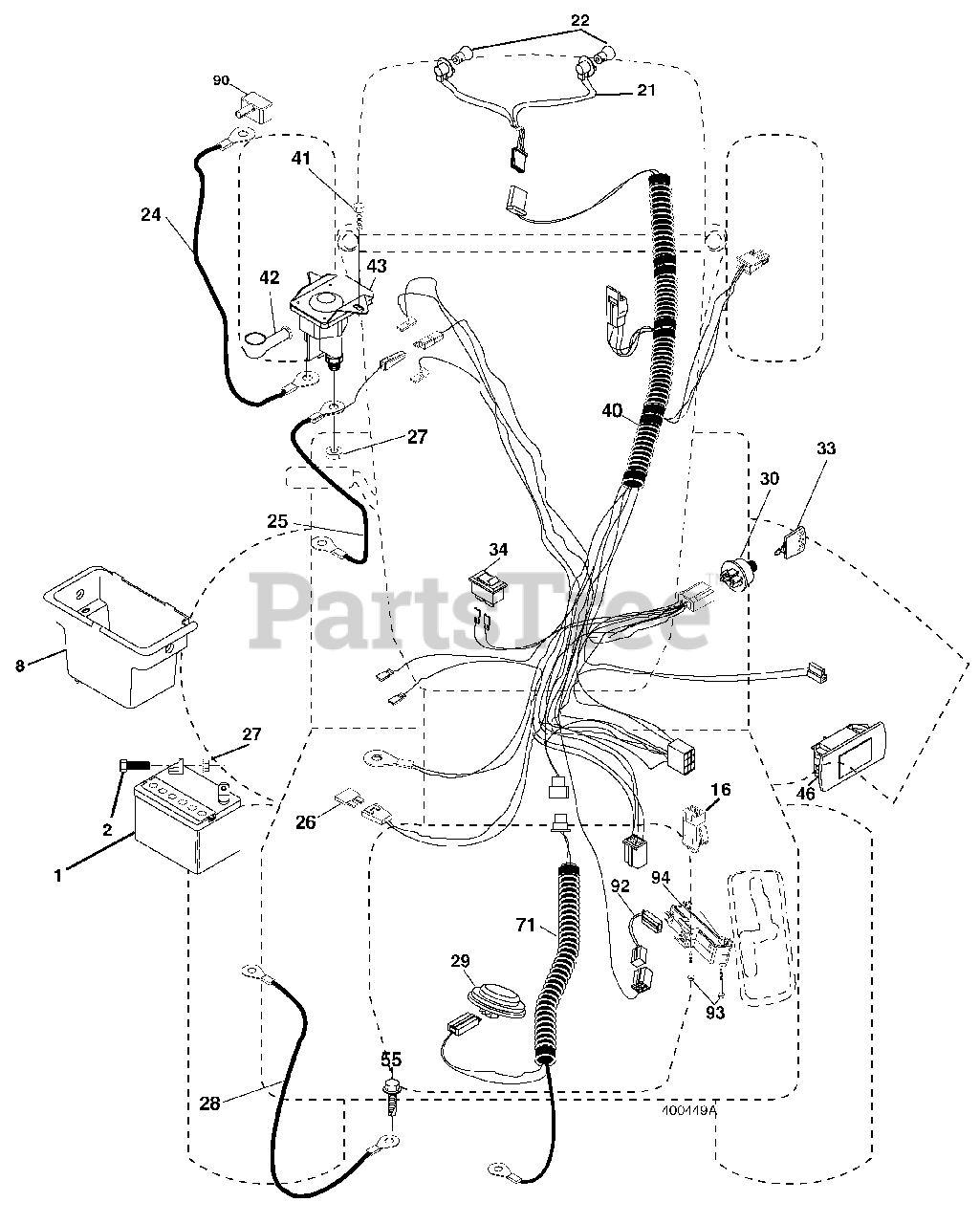

Electrical Parts Diagram

  • Title

1

Electrolux/AYP 163465

Battery
(Superseded to 532123899)

$194.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 74760412

Bolt Hex Head 1/4-20 x 3/4
(Superseded to 874760412)

$7.49

$

In Stock, Qty 5

0

8

Electrolux/AYP 193228

Box Battery
(Superseded to 532193228)

$18.99

$

In Stock, only 4 left!

0

16

Electrolux/AYP 176138

Switch Interlock Push-In
(Superseded to 532176138)

$15.99

$

In Stock, Qty 5

0

21

Electrolux/AYP 183759

Harness Socket Light W/4152J
(Superseded to 532183759)

$47.99

$

In Stock, only 3 left!

0

22

Electrolux/AYP 4152J

Bulb Light
(Superseded to 532004152)

$4.99

$

In Stock, Qty 20+

0

25

Electrolux/AYP 401662

Cable Starter
(Superseded to 532401662)

$

$

Not available

26

Electrolux/AYP 175158

Fuse
(Superseded to 532175158)

$7.49

$

In Stock, Qty 13

0

27

Murray 73510400

Nut Keps Hex 1/4-20 unc
(Superseded to 873640400)

$

$

Not available

28

Electrolux/AYP 198885

Cable, Ground
(Superseded to 532198885)

$30.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 401545

Switch, Seat
(Superseded to 532401545)

$39.99

$

In Stock, Qty 20+

0

30

Electrolux/AYP 193350

Switch, Ignition
(Superseded to 532193350)

$13.99

$

In Stock, Qty 20+

0

33

Electrolux/AYP 140401

Key, Ignition
(Superseded to 532140401)

$6.49

$

In Stock, Qty 20+

0

34

Electrolux/AYP 110712X

Switch Light / Reset
(Superseded to 532110712)

$8.99

$

In Stock, Qty 11

0

40

Electrolux/AYP 400449

Harness Ignition
(Superseded to 532400449)

$40.99

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 17720408

Screw Thd Cut 1/4-20 x 1/2
(Superseded to 817240408)

$7.49

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 131563

Cover, Terminal
(Superseded to 532154336)

$8.99

$

Usually ships in 3-10 days

0

43

Electrolux/AYP 192507

Solenoid
(Superseded to 582042802)

$13.99

$

In Stock, Qty 20+

0

46

Electrolux/AYP 198138

Gauge Servicereminder Hrmtr Rect.
(Superseded to 594919101)

$24.99

$

In Stock, Qty 20+

0

55

Electrolux/AYP 17490512

Screw Thdrol 5/16-18 x 3/4 TYTT
(Superseded to 583607701)

$7.49

$

Usually ships in 3-10 days

0

71

Electrolux/AYP 400451

Harness Ignition Dash
(Superseded to 532400451)

$109.99

$

Usually ships in 3-10 days

0

90

Electrolux/AYP 400275

Cover Terminal Battery
(Superseded to 583261201)

$94.99

$

Usually ships in 3-10 days

0
