C 21 CPN A - Lawn-Boy Walk-Behind Mower (SN: J00000001 - J99999999) (1990) Housing And Shroud Group Model: C21zpr Parts Diagram

Walk-Behind Mower

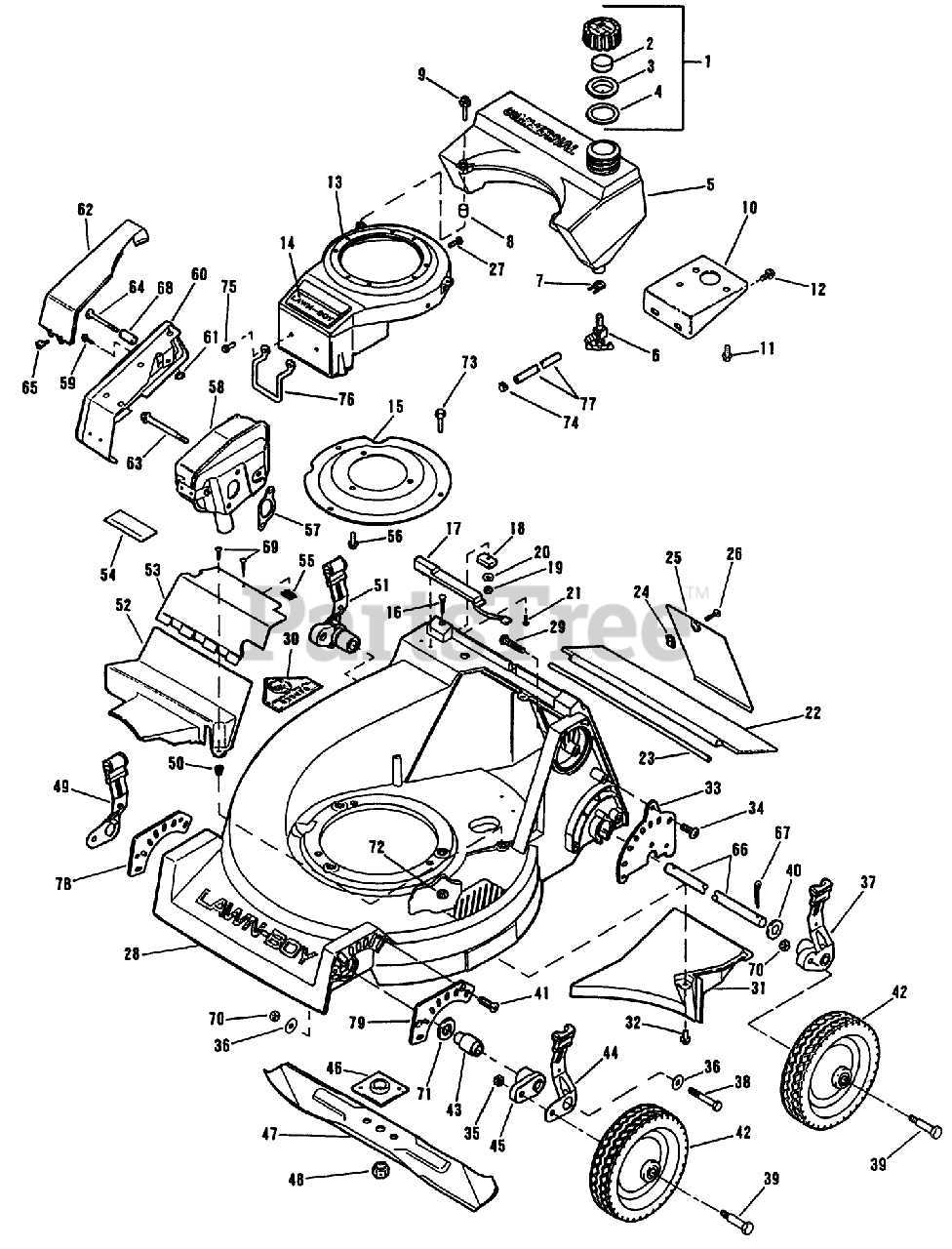

Housing And Shroud Group Model: C21zpr Parts Diagram

  • Title

1

Lawn-Boy 684106

CAP AY - F/OIL SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$

$

Not available

2

Lawn-Boy 609150

BAFFLE - FOAM SM

Note: Parts shown with bullet included with assembly above.

$5.49

$

In Stock, Qty 9

0

2

Lawn-Boy 609150

BAFFLE - FOAM SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$5.49

$

In Stock, Qty 9

0

3

Lawn-Boy 613310

See Supercession: 614271
(Superseded to 614271)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$4.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 613310

See Supercession: 614271
(Superseded to 614271)

Note: Parts shown with bullet included with assembly above.

$4.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 613311

GASKET-FUELCAP SM

Note: Parts shown with bullet included with assembly above.

$3.49

$

Usually ships in 3-6 days

0

4

Lawn-Boy 613311

GASKET-FUELCAP SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$3.49

$

Usually ships in 3-6 days

0

Lawn-Boy 684314

See Supercession: 684516
(Superseded to 684516)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$

$

Not available

5

Lawn-Boy 613817

See Supercession: 684516
(Superseded to 684516)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$

$

Not available

5

Lawn-Boy 613817

See Supercession: 684516
(Superseded to 684516)

Note: Parts shown with bullet included with assembly above.

$

$

Not available

6

Lawn-Boy 677052

VALVE&SCREEN SM

Note: Parts shown with bullet included with assembly above.

$22.99

$

In Stock, Qty 5

0

6

Lawn-Boy 677052

VALVE&SCREEN SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$22.99

$

In Stock, Qty 5

0

7

Lawn-Boy 312387

CLAMP - HOSE S

Note: Parts shown with bullet included with assembly above.

$1.49

$

In Stock, Qty 8

0

7

Lawn-Boy 312387

CLAMP - HOSE S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$1.49

$

In Stock, Qty 8

0

8

Lawn-Boy 614022

SPACER SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$

$

Not available

8

Lawn-Boy 614022

SPACER SM

Note: Parts shown with bullet included with assembly above.

$

$

Not available

9

Lawn-Boy 613912

SCREW - SEMS SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$17.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 613819

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$

$

Not available

11

Lawn-Boy 700094

See Supercession: 112-0167
(Superseded to 112-0167)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$6.49

$

In Stock, Qty 6

0

12

Lawn-Boy 613337

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$

$

Not available

13

Lawn-Boy 684311

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$

$

Not available

14

Lawn-Boy 614041

APPLIQUE SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$

$

Not available

14

Lawn-Boy 614041

APPLIQUE SM

Note: Parts shown with bullet included with assembly above.

$

$

Not available

15

Lawn-Boy 613207

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$

$

Not available

16

Lawn-Boy 303724

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$

$

Not available

17

Lawn-Boy 684366

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$

$

Not available

18

Lawn-Boy 684193

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$

$

Not available

19

Lawn-Boy 130450

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$

$

Not available

20

Lawn-Boy 613625

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$

$

Not available

21

Lawn-Boy 613749

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$

$

Not available

22

Lawn-Boy 613322

DISCONTINUED
(Superseded to 99-6408)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$

$

Not available

23

Lawn-Boy 610026

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$

$

Not available

24

Lawn-Boy 613340

SPEED NUT LARSON

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$1.99

$

Usually ships in 3-6 days

0

25

Lawn-Boy 613346

DOOR-ACCESS ELECT.

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$

$

Not available

26

Lawn-Boy 613339

SCREW-CROSS RECESS

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$1.99

$

Usually ships in 3-6 days

0

27

Lawn-Boy 613281

See Supercession: 3274-31
(Superseded to 3274-31)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$1.49

$

In Stock, only 3 left!

0

28

Lawn-Boy 684472

See Supercession: 684687
(Superseded to 684687)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$

$

Not available

29

Lawn-Boy 613321

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$

$

Not available

30

Lawn-Boy 610640

See Supercession: 43-8480
(Superseded to 43-8480)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$6.49

$

In Stock, Qty 8

0

30

Lawn-Boy 610640

See Supercession: 43-8480
(Superseded to 43-8480)

Note: Parts shown with bullet included with assembly above.

$6.49

$

In Stock, Qty 8

0

31

Lawn-Boy 613289

CHUTE BAFFLE NYL

Note: Parts shown with bullet included with assembly above.

$39.99

$

Usually ships in 3-6 days

0

31

Lawn-Boy 613289

CHUTE BAFFLE NYL

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$39.99

$

Usually ships in 3-6 days

0

32

Lawn-Boy 608418

See Supercession: 46-6811
(Superseded to 46-6811)

Note: Parts shown with bullet included with assembly above.

$3.49

$

In Stock, Qty 7

0

32

Lawn-Boy 608418

See Supercession: 46-6811
(Superseded to 46-6811)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$3.49

$

In Stock, Qty 7

0

Lawn-Boy 613910

See Supercession: 5-3177
(Superseded to 5-3177)

Note: Parts shown with bullet included with assembly above.

$2.49

$

Usually ships in 3-6 days

0

Lawn-Boy 613910

See Supercession: 5-3177
(Superseded to 5-3177)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$2.49

$

Usually ships in 3-6 days

0

33

Lawn-Boy 613323

PLATE HGT CMS

Note: Parts shown with bullet included with assembly above.

$33.99

$

Usually ships in 3-6 days

0

33

Lawn-Boy 613323

PLATE HGT CMS

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$33.99

$

Usually ships in 3-6 days

0

34

Lawn-Boy 613381

SCREW-BHTF

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$5.49

$

In Stock, Qty 15

0

35

Lawn-Boy 610358

NUT-JAM, LOCKING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$2.49

$

In Stock, Qty 12

0

36

Lawn-Boy 610361

WASHER-PLAIN

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$1.99

$

Usually ships in 3-6 days

0

37

Lawn-Boy 684407

HT. ADJ. ARM AY-L

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$

$

Not available

Lawn-Boy 684524

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$

$

Not available

Lawn-Boy 684524

DISCONTINUED

Note: Parts shown with bullet included with assembly above.

$

$

Not available

Lawn-Boy 684525

BEARING SERVICE AY

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$

$

Not available

38

Lawn-Boy 613320

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$

$

Not available

39

Lawn-Boy 614028

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$

$

Not available

40

Lawn-Boy 605256

SPACER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$2.99

$

In Stock, Qty 9

0

41

Lawn-Boy 614166

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$

$

Not available

42

Lawn-Boy 683464

WHEEL/TIRE ASM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$79.99

$

Usually ships in 3-6 days

0

43

Lawn-Boy 614161

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$

$

Not available

44

Lawn-Boy 684220

KNOB & SPRING CMS

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$

$

Not available

45

Lawn-Boy 613917

ARM HGT ADJ *BLACK

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$91.99

$

Usually ships in 3-6 days

0

46

Lawn-Boy 677525

PLATE AND COLLAR ASM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$23.99

$

In Stock, Qty 11

0

47

Lawn-Boy 683682

See Supercession: 612543-03
(Superseded to 612543-03)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$29.99

$

In Stock, Qty 20+

0

48

Lawn-Boy 603164

NUT-BLADE
(Superseded to 121-3611)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$5.99

$

In Stock, Qty 7

0

49

Lawn-Boy 684219

KNOB & SPRING CMS

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$

$

Not available

50

Lawn-Boy 611380

NUT-CLIP

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$3.49

$

Usually ships in 3-6 days

0

51

Lawn-Boy 684406

HT. ADJ. ARM AY-R

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$

$

Not available

Lawn-Boy 684523

DISCONTINUED

Note: Parts shown with bullet included with assembly above.

$

$

Not available

Lawn-Boy 684523

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$

$

Not available

52

Lawn-Boy 613532

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$

$

Not available

53

Lawn-Boy 684547

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$

$

Not available

54

Lawn-Boy 613840

DISCONTINUED

Note: Parts shown with bullet included with assembly above.

$

$

Not available

54

Lawn-Boy 613840

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$

$

Not available

55

Lawn-Boy 613341

NUT-SPEED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$

$

Not available

56

Lawn-Boy 613483

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$

$

Not available

57

Lawn-Boy 613266

GASKET - EXH SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$

$

Not available

58

Lawn-Boy 684091

See Supercession: 684579
(Superseded to 684579)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$

$

Not available

59

Lawn-Boy 700056

SCREW S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$

$

Not available

60

Lawn-Boy 684299

GUARD AY-MUFFLER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$130.99

$

Usually ships in 3-6 days

0

61

Lawn-Boy 613329

NUT-PUSH

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$1.99

$

Usually ships in 3-6 days

0

61

Lawn-Boy 613329

NUT-PUSH

Note: Parts shown with bullet included with assembly above.

$1.99

$

Usually ships in 3-6 days

0

62

Lawn-Boy 613760

DISCONTINUED

Note: Parts shown with bullet included with assembly above.

$

$

Not available

62

Lawn-Boy 613760

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$

$

Not available

63

Lawn-Boy 613282

SCREW-SEMS

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$

$

Not available

64

Lawn-Boy 613372

SCREW SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$

$

Not available

65

Lawn-Boy 613576

SCREW SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$

$

Not available

66

Lawn-Boy 613850

ROD HGT ADJ R GLM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$52.99

$

Usually ships in 3-6 days

0

67

Lawn-Boy 701598

See Supercession: 3272-7
(Superseded to 3272-7)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$1.49

$

In Stock, Qty 14

0

68

Lawn-Boy 613371

SPACER S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$

$

Not available

69

Lawn-Boy 608997

SCREW S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$1.99

$

In Stock, only 3 left!

0

70

Lawn-Boy 603773

LOCKNUT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$2.99

$

In Stock, Qty 20+

0

71

Lawn-Boy 614163

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$

$

Not available

72

Lawn-Boy 608311

NUT-LOCK F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$2.99

$

Usually ships in 3-6 days

0

73

Lawn-Boy 611774

SCREW-HH

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$3.99

$

In Stock, only 1 left!

0

74

Lawn-Boy 613489

HOSE CLAMP SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$2.99

$

Usually ships in 3-6 days

0

75

Lawn-Boy 613814

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$

$

Not available

76

Lawn-Boy 613816

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$

$

Not available

77

Lawn-Boy 613866

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$

$

Not available

78

Lawn-Boy 614164

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$

$

Not available

79

Lawn-Boy 614165

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. + Not Shown. Parts

$

$

Not available
